38540 (824) - Toro 24" Power Shift Snow Thrower (SN: 020000001 - 029999999) (1992) DRIFT BREAKER ASSEMBLY (OPTIONAL) Parts Diagram

24" Power Shift Snow Thrower

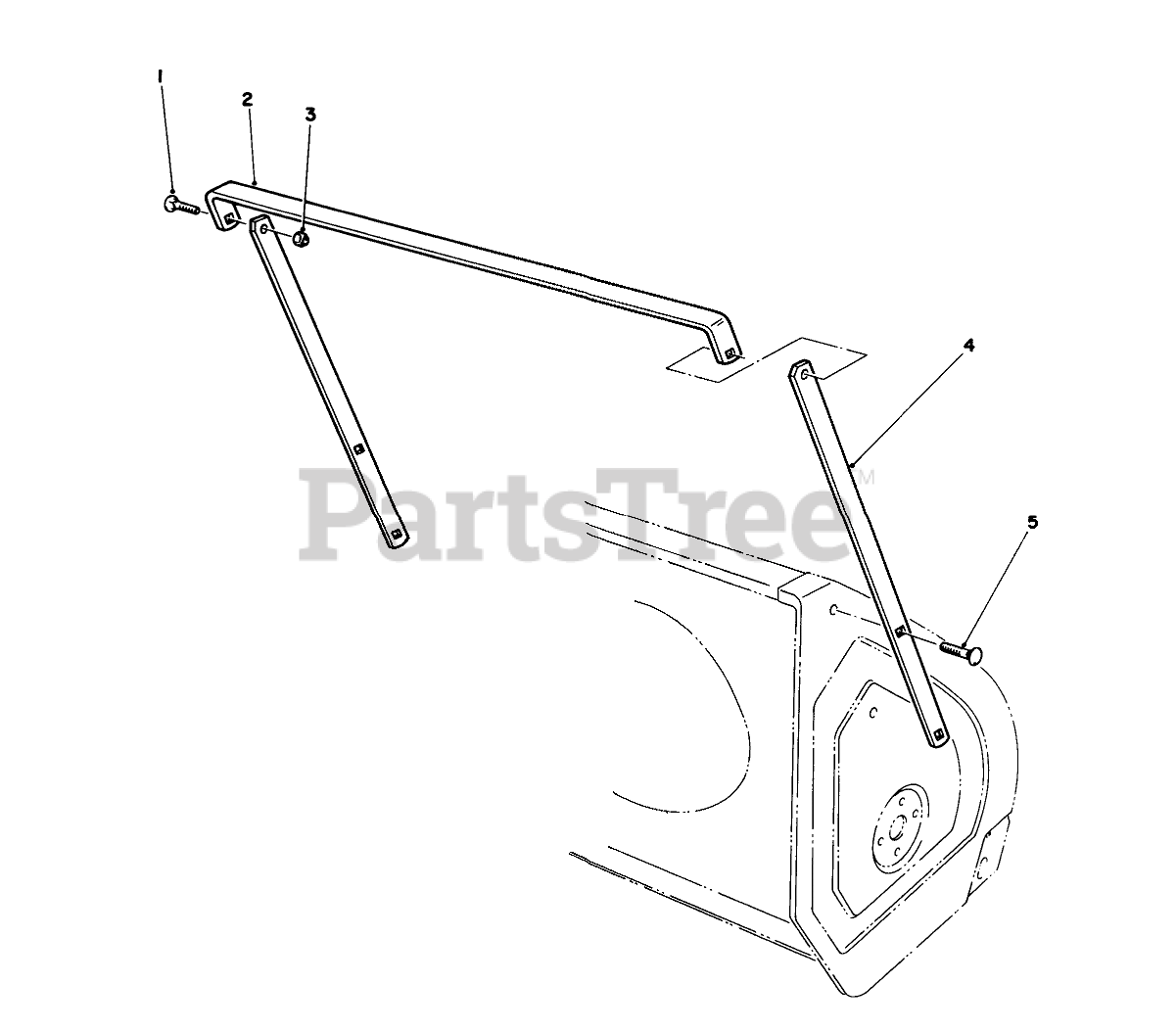

DRIFT BREAKER ASSEMBLY (OPTIONAL) Parts Diagram

  • Title
1

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

2

Breaker-Top (24")

Note: Items not sold separately.

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Breaker-Side

Note: Items not sold separately.

$

$

Not available

5

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

Toro 66-7960

Drift Breaker Kit (Incl. Ref. #1-5)

Note: Not illustrated

$

$

Not available
