38540 (824) - Toro 24" Power Shift Snow Thrower (SN: 010000001 - 019999999) (1991) SNOW CAB ASSEMBLY NO. 68-9500 (OPTIONAL) Parts Diagram

24" Power Shift Snow Thrower

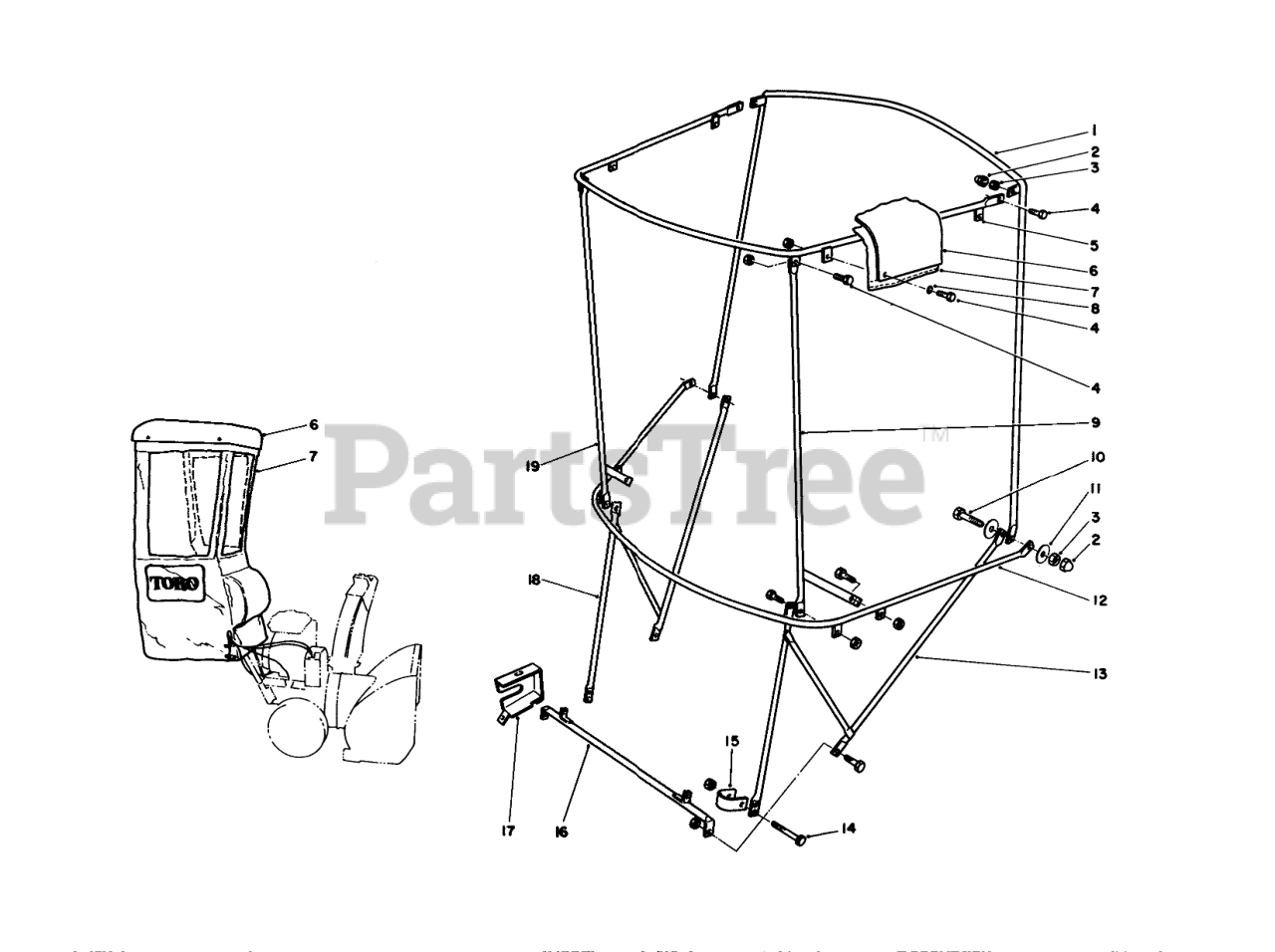

SNOW CAB ASSEMBLY NO. 68-9500 (OPTIONAL) Parts Diagram

  • Title
1

Toro 70-2260

VERTICAL BOW

$

$

Not available

2

Toro 70-2240

CAPLUG

$

$

Not available

3

Toro 32153-4

NUT-HEX, SIDE DEFORM

$1.49

$

Usually ships in 3-6 days

0

4

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 70-2250

FRAME - TOP

$

$

Not available

6

Top-Plastic

$

$

Not available

7

Cover-Vinyl

$

$

Not available

8

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 70-2220

CORNER POST - LH

$

$

Not available

10

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, Qty 11

0

12

Toro 70-2270

HORIZONTAL BOW

$

$

Not available

13

Toro 66-6230

Bracket-LH

$

$

Not available

14

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 66-6240

CLAMP

$

$

Not available

16

Toro 66-6210

Bracket-Base

$

$

Not available

17

Toro 63-3330

COVER-LOCK, LEVER

$

$

Not available

18

Toro 66-6220

BRACKET-RH

$195.99

$

Usually ships in 3-6 days

0

19

Toro 70-2230

CORNER POST - RH

$

$

Not available
