38525 (724) - Toro 24" Power Shift Snow Thrower (SN: 009000001 - 009999999) (1989) ENGINE NO. 68-8290 CRANKCASE ASSEMBLY Parts Diagram

24" Power Shift Snow Thrower

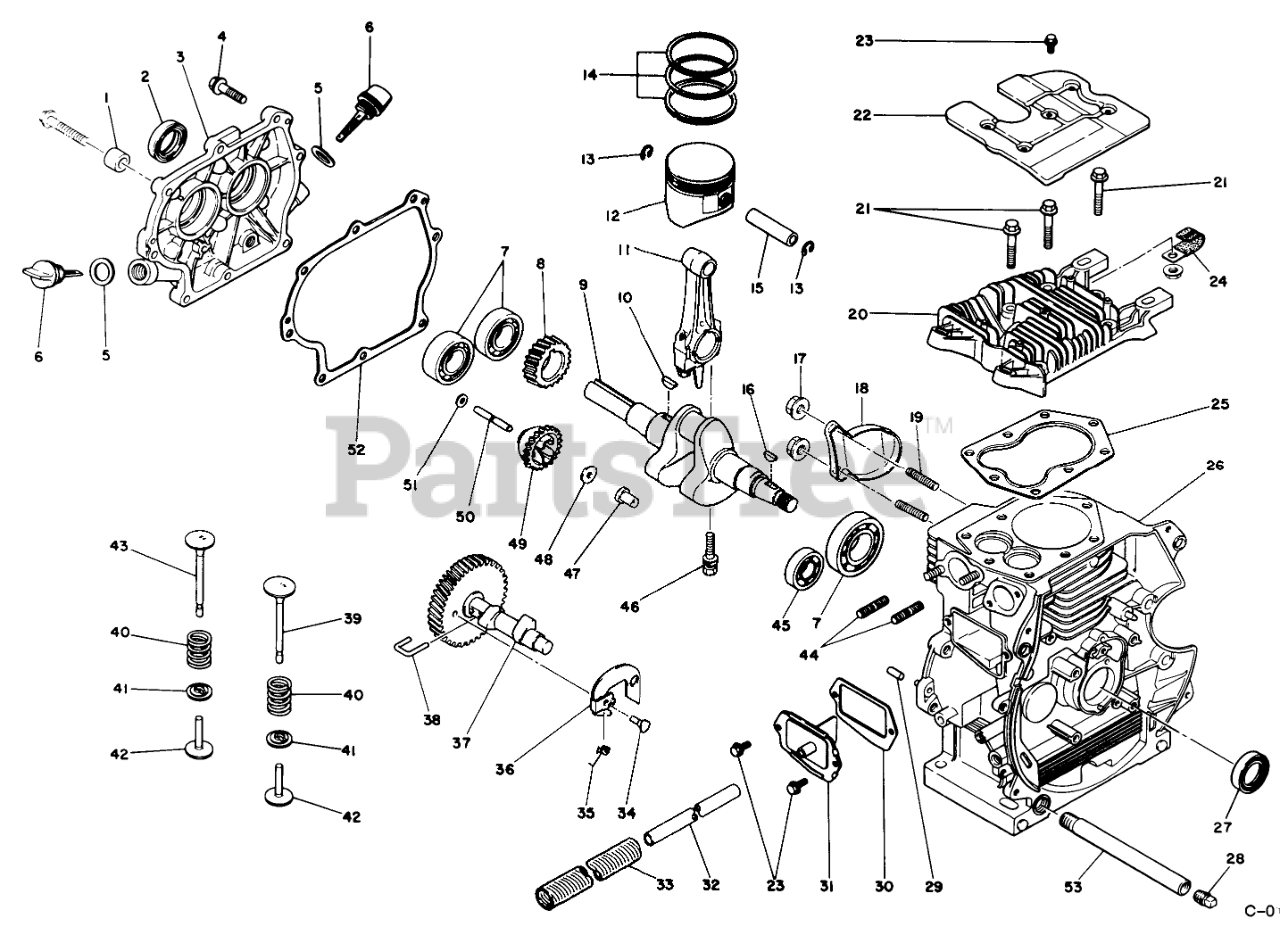

ENGINE NO. 68-8290 CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Toro 65-2390

SPACER

$

$

Not available

2

Toro 65-2140

OIL SEAL

$

$

Not available

3

Toro 65-2150

CRANKCASE COVER

$

$

Not available

4

Toro 65-0480

BOLT

$

$

Not available

5

Toro 65-0510

GASKET

$

$

Not available

6

Toro 65-0500

Gauge-Oil (Incl. Ref. #5)

$

$

Not available

7

Toro 65-0030

BEARING

$

$

Not available

8

Toro 65-0170

CRANKSHAFT GEAR

$

$

Not available

9

Toro 65-1930

CRANKSHAFT

$

$

Not available

10

Toro 65-0180

KEY

$

$

Not available

11

Toro 65-2100

Connecting Rod Assembly (Std.) (Incl. Ref #46)

$

$

Not available

Toro 65-2110

Connecting Rod Assembly (US.25) (Incl. Ref. #46)

$

$

Not available

Toro 65-2120

Connecting Rod Assembly (US.50) (Incl. Ref. #46)

$

$

Not available

12

Toro 65-2050

Piston Assembly (Std.) (Incl. Ref. #15)

$

$

Not available

13

Toro 65-2040

PISTON PIN CLIP

$

$

Not available

14

Toro 65-1990

PISTON RING SET

$

$

Not available

15

Toro 65-2130

PISTON PIN

$

$

Not available

16

Toro 65-0200

KEY

$

$

Not available

17

Toro 65-1710

NUT

$

$

Not available

18

Toro 71-1630

COVER

$

$

Not available

19

Toro 71-1880

BOLT

$

$

Not available

20

Toro 65-1890

CYLINDER HEAD

$

$

Not available

21

Toro 65-0130

BOLT

$

$

Not available

22

Toro 65-0120

COVER-HEAD

$

$

Not available

23

Toro 65-0050

BOLT

$

$

Not available

24

Toro 65-0160

CLAMP

$

$

Not available

25

Toro 65-1920

HEAD GASKET

$

$

Not available

26

Toro 71-1800

Cylinder Block Assembly (Incl. Ref. #19, 29 & 44)

$

$

Not available

27

Toro 65-0110

OIL SEAL

$

$

Not available

28

Toro 281-7

CAP-PIPE

$3.99

$

Usually ships in 3-6 days

0

29

Toro 65-0080

PIN

$

$

Not available

30

Toro 65-0070

GASKET=BRTHR

$

$

Not available

31

Toro 65-0060

BREATHER VALVE ASM

$

$

Not available

32

Toro 65-0770

BREATHER TUBE

$

$

Not available

33

Toro 71-1890

TUBE

$

$

Not available

34

Toro 65-0310

PIN

$

$

Not available

35

Toro 65-0300

SPRING

$

$

Not available

36

Toro 65-0290

FLYWEIGHT

$

$

Not available

37

Toro 65-1970

Camshaft Assembly (Incl.Ref. #34-36 & 38)

$

$

Not available

38

Toro 65-1980

PIN

$

$

Not available

39

Toro 65-1960

INT VALVE

$

$

Not available

40

Toro 65-0230

VALVE SPRING

$

$

Not available

41

Toro 65-0240

RETAINER VALVE

$

$

Not available

42

Toro 65-0250

TAPPET

$

$

Not available

43

Toro 65-1950

EXHAUST VALVE

$

$

Not available

44

Toro 65-0020

BOLT

$

$

Not available

45

Toro 65-0040

BEARING

$

$

Not available

46

Toro 65-0460

CONNECTING ROD BOLT

$

$

Not available

47

Toro 65-0570

SLIDER-GOV

$

$

Not available

48

Toro 65-0580

SPACER

$

$

Not available

49

Toro 65-0560

Governor Gear Assembly (Incl. Ref. #47)

$

$

Not available

50

Toro 65-0550

SHAFT-GOV.

$

$

Not available

51

Toro 65-0540

WASHER

$

$

Not available

52

Toro 65-2160

CRANKCASE GASKET

$

$

Not available

53

Toro 66-6690

DRAIN TUBE

$

$

Not available
