38520 (724) - Toro 24" Power Shift Snow Thrower (SN: 009000001 - 009999999) (1989) LIGHT KIT NO. 66-7950 (OPTIONAL) Parts Diagram

24" Power Shift Snow Thrower

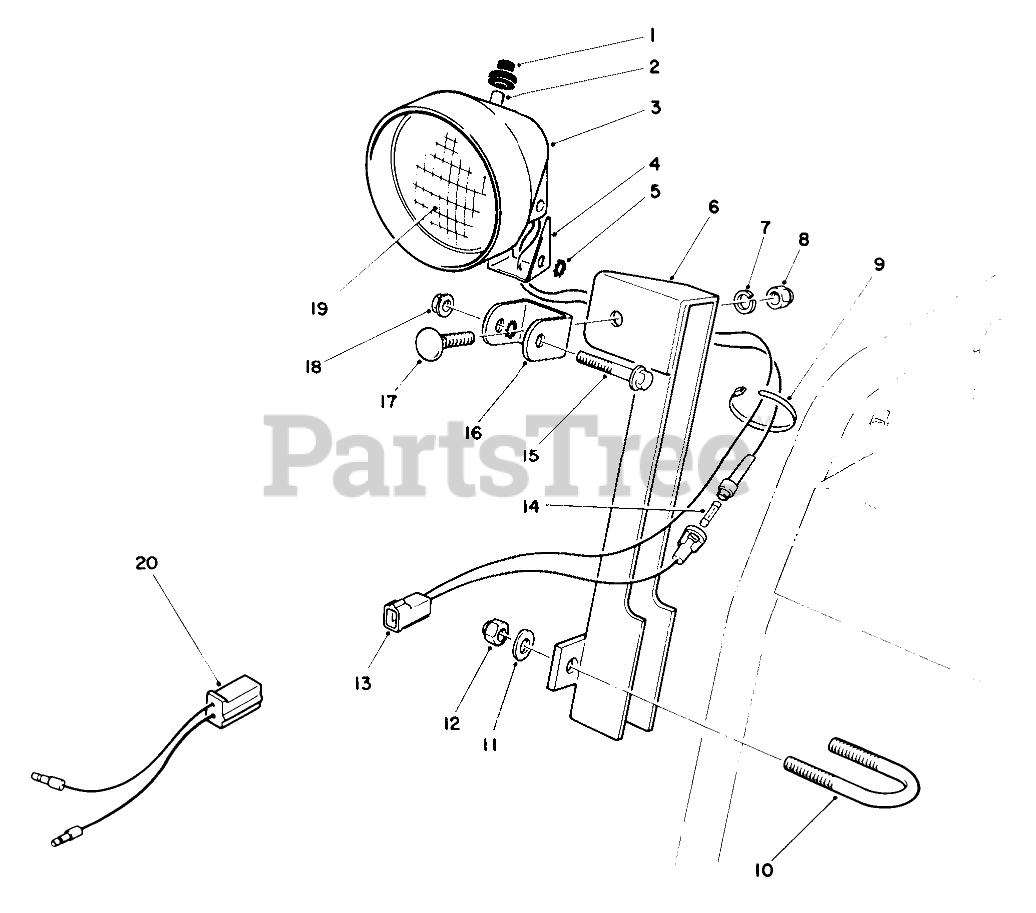

LIGHT KIT NO. 66-7950 (OPTIONAL) Parts Diagram

  • Title

1

Toro 218-473

BOOT-SWITCH

$21.99

$

Usually ships in 3-6 days

0

2

Toro 218-553

SWITCH ASM
(Superseded to 110-6269)

$

$

Not available

3

Toro 218-552

Bucket-Headlamp

$

$

Not available

4

Toro 218-554

TO BE DISCONTINED-NOT NEEDED ON PRODUCT

$

$

Not available

5

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

6

Toro 68-7110

Mount-Lamp
(Superseded to 68-7110-03)

$126.99

$

Usually ships in 3-6 days

0

7

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

8

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

9

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

10

Toro 68-7140

U-BOLT

$

$

Not available

11

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 218-555

WIRE ASM

$

$

Not available

14

Fuse-7-1/2 Amp.

$

$

Not available

15

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

16

Toro 218-556

BRACKET

$

$

Not available

17

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

18

Toro 32128-35

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

19

Toro 218-16

BEAM-SEALED

$

$

Not available

20

Toro 68-9340

WIRE ASSEMBLY

$

$

Not available

Toro 54-9871

Headlamp Assembly (Incl. Ref. #1-5, 7-8 & 13-19)

$

$

Not available
