38520 (724) - Toro 24" Power Shift Snow Thrower (SN: 009000001 - 009999999) (1989) ENGINE NO. 68-8290 FUEL SYSTEM & MUFFLER Parts Diagram

24" Power Shift Snow Thrower

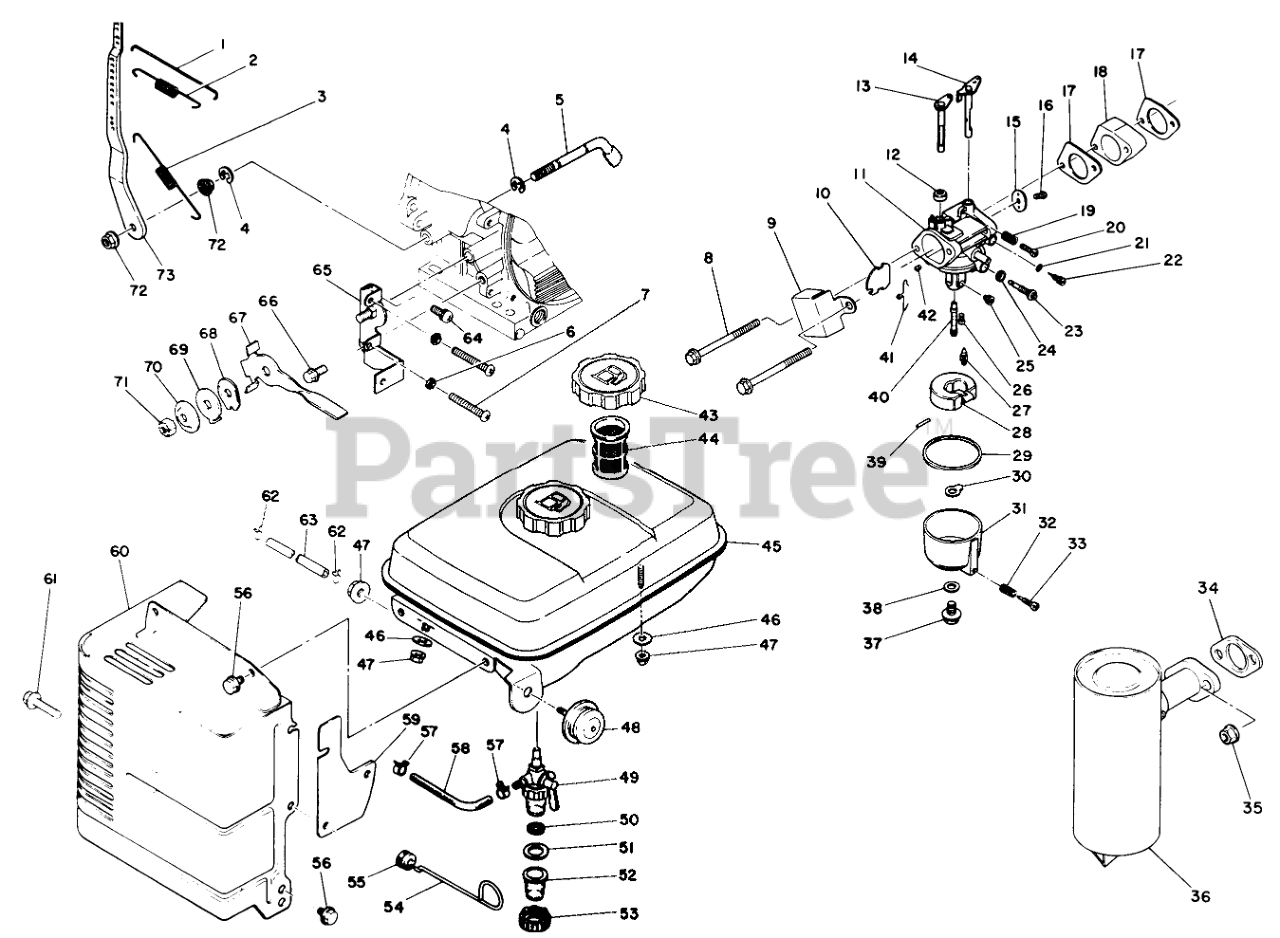

ENGINE NO. 68-8290 FUEL SYSTEM & MUFFLER Parts Diagram

  • Title

1

Toro 65-0870

GOV.ROD

$

$

Not available

2

Toro 65-0880

SPRING-ROD

$

$

Not available

3

Toro 71-1760

SPRING

$

$

Not available

4

Toro 65-0860

SNAP RING

$

$

Not available

5

Toro 65-0850

GOV SHAFT

$

$

Not available

6

Toro 65-1010

NUT

$

$

Not available

7

Toro 65-1020

SCREW

$

$

Not available

8

Toro 65-1370

BOLT

$

$

Not available

9

Toro 65-1380

COVER

$

$

Not available

10

Toro 71-1840

VALVE

$

$

Not available

11

Toro 71-1810

Carburetor Assembly (Incl. Ref. #10-16, 19-33 & 37-42)

$

$

Not available

12

Toro 65-1250

CAP

$

$

Not available

13

Toro 71-1670

SHAFT

$

$

Not available

14

Toro 65-2220

THROTTLE SHAFT

$

$

Not available

15

Toro 65-2230

THROTTLE VALVE

$

$

Not available

16

Toro 65-1130

SCREW

$

$

Not available

17

Toro 65-1080

CARB GASKET

$

$

Not available

18

Toro 71-1650

INSULATOR

$

$

Not available

19

Toro 65-1140

SPRING

$

$

Not available

20

Toro 65-1150

SCREW

$

$

Not available

21

Toro 65-1170

O - RING

$

$

Not available

22

Toro 65-2470

Valve-Needle (Incl. Ref. #21)

$

$

Not available

23

Toro 65-2260

SLOW JET

$

$

Not available

24

Toro 65-1190

GASKET

$

$

Not available

25

Toro 65-2280

MAIN JET

$

$

Not available

26

Toro 65-1210

SCREW

$

$

Not available

27

Toro 65-1290

VALVE

$

$

Not available

28

Toro 65-1300

FLOAT

$

$

Not available

29

Toro 65-2300

GASKET

$

$

Not available

30

Toro 65-1330

GASKET

$

$

Not available

31

Toro 65-1340

Bowl-Float (Incl. Ref. #32 & 33)

$

$

Not available

32

Toro 65-1220

SPRING

$

$

Not available

33

Toro 65-1230

SCREW

$

$

Not available

34

Toro 65-2330

GASKET

$

$

Not available

35

Toro 54-4670

NUT

$

$

Not available

36

Toro 71-1690

MUFFLER

$

$

Not available

37

Toro 65-2310

PLUG

$

$

Not available

38

Toro 65-1350

GASKET

$1.99

$

Usually ships in 3-6 days

0

39

Toro 65-1310

FLOAT PIN

$

$

Not available

40

Toro 65-2290

MAIN NOZZLE

$

$

Not available

41

Toro 65-1260

CLIP

$

$

Not available

42

Toro 65-2320

BREATHER

$

$

Not available

43

Toro 65-1680

FUEL TANK CAP

$

$

Not available

44

Toro 65-1690

FUEL FILTER

$

$

Not available

45

Toro 71-1820

Fuel Tank Assembly (Incl. Ref.#43, 44, & 46)

$

$

Not available

46

Toro 65-1700

GASKET

$

$

Not available

47

Toro 65-1710

NUT

$

$

Not available

48

Toro 65-2440

PUMP

$

$

Not available

49

Toro 71-1720

Petcock-Fuel (Incl. Ref. #50-53)

$

$

Not available

50

Toro 65-1770

SCREEN

$

$

Not available

51

Toro 65-1780

GASKET

$

$

Not available

52

Toro 65-1790

CUP

$

$

Not available

53

Toro 65-1800

NUT

$

$

Not available

54

Toro 71-1750

ROD

$

$

Not available

55

Toro 65-1430

GROMMET

$

$

Not available

56

Toro 65-0050

BOLT

$

$

Not available

57

Toro 65-1720

CLIP

$

$

Not available

58

Toro 71-1710

TUBE

$

$

Not available

59

Toro 65-2450

COVER

$

$

Not available

60

Toro 71-1830

COVER

$

$

Not available

61

Toro 65-2460

BOLT

$

$

Not available

62

Toro 71-1730

CLAMP

$

$

Not available

63

Toro 71-1740

HOSE

$

$

Not available

64

Toro 65-2430

SCREW W/WASHER

$

$

Not available

65

Toro 65-2420

BRACKET

$129.99

$

Usually ships in 3-6 days

0

66

Toro 65-0990

BOLT

$

$

Not available

67

Toro 71-1640

LEVER

$

$

Not available

68

Toro 65-0800

LEAF SPRING

$

$

Not available

69

Toro 65-0810

WASHER

$

$

Not available

70

Toro 65-0820

WASHER

$

$

Not available

71

Toro 65-0830

NUT

$

$

Not available

72

Toro 65-0890

NUT

$

$

Not available

73

Toro 65-0910

GOV.LEVER

$

$

Not available
