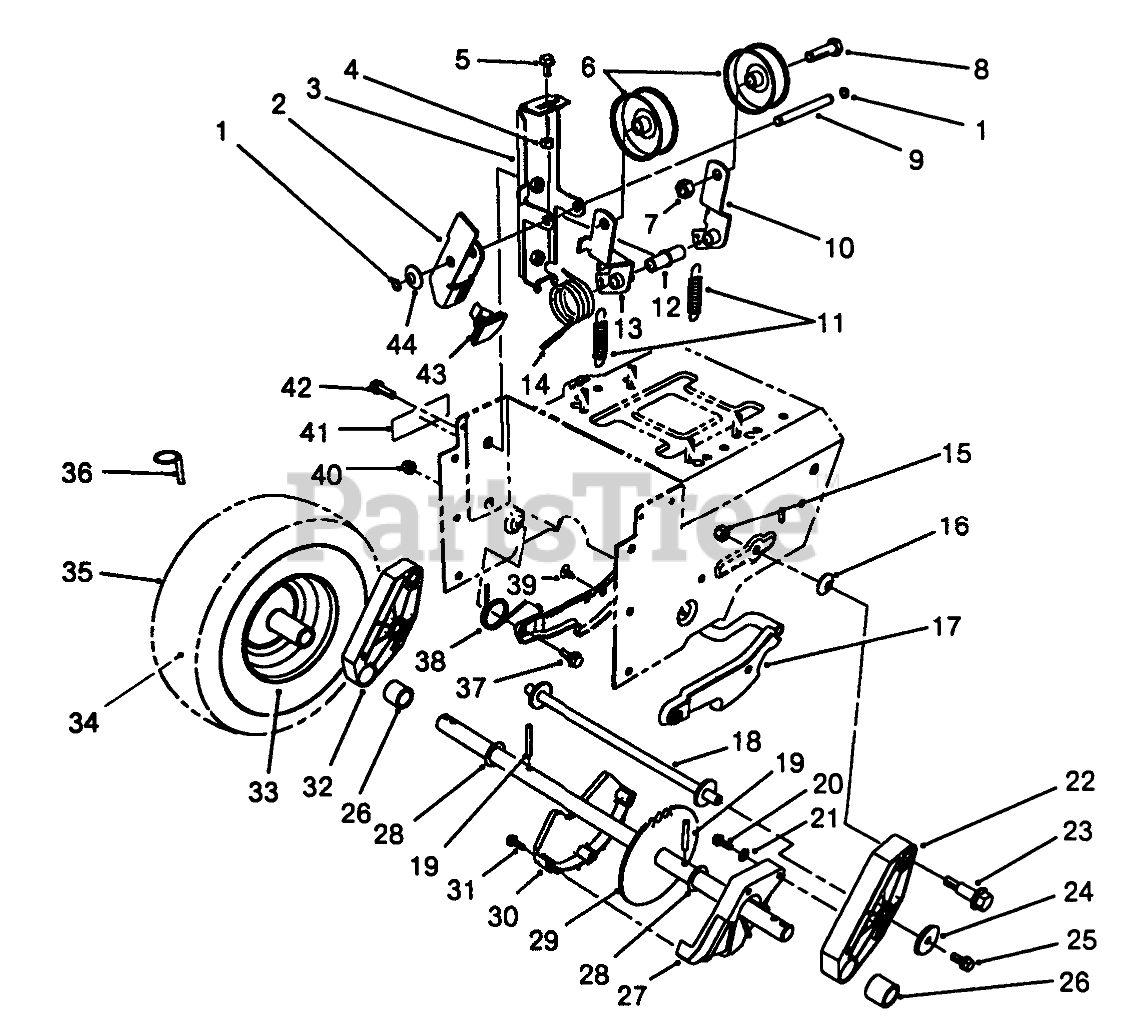

38520 (724) - Toro 24" Power Shift Snow Thrower (SN: 008000001 - 008999999) (1988) TRACTION DRIVE ASSEMBLY Parts Diagram

24" Power Shift Snow Thrower

TRACTION DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 3210-46

Ring-Retaining

$

$

Currently unavailable

2

Toro 63-2810

ARM-BRAKE

$41.99

$

Usually ships in 3-6 days

0

3

Toro 63-2850

IDLER ARM BRACKET ASM

$

$

Not available

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

6

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

7

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

8

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 62-0970

PIN-IDLER

$

$

Not available

10

Toro 62-1260

ARM-IDLER, TRACTION

$

$

Not available

11

Toro 63-2870

SPRING-EXTENSION

$8.99

$

In Stock, only 2 left!

0

12

Toro 62-1210

BUSHING-IDLER

$

$

Not available

13

Toro 62-1280

ARM-IDLER, IMPELLER

$

$

Not available

14

Toro 63-2880

SPRING-TORSION

$

$

Not available

15

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

16

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

17

Toro 62-0470

Latch-Arm
(Superseded to 62-0470-03)

$160.99

$

Usually ships in 3-6 days

0

18

Toro 63-3440

PIVOT TUBE WA

$94.99

$

Usually ships in 3-6 days

0

19

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

20

Toro 32144-63

Screw-Hex Flange Hd.
(Superseded to 32144-4)

$1.49

$

In Stock, Qty 20+

0

21

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 62-0150

Pivot Arm Assembly L.H. (Incl. Ref. #26)
(Superseded to 66-7740)

$79.99

$

Usually ships in 3-6 days

0

23

Toro 62-1330

BOLT-SHOULDER

$11.99

$

In Stock, only 1 left!

0

24

Toro 63-3360

WASHER

$

$

Not available

25

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

26

Toro 63-2250

BUSHING-AXLE

$12.99

$

In Stock, only 2 left!

0

27

Toro 62-1010

GUARD-CHAIN, LH

$

$

Not available

28

Toro 252-80

WASHER-THRUST

$8.99

$

In Stock, Qty 9

0

29

Toro 63-2110

AXLE WA (24")

$

$

Not available

30

Toro 62-1000

GUARD-CHAIN, RH

$

$

Not available

31

Toro 32104-118

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

32

Toro 63-3150

Pivot Arm Assembly R.H. (Incl. Ref. #26)
(Superseded to 66-7740)

$79.99

$

Usually ships in 3-6 days

0

33

Toro 241-124

Wheel
(Superseded to 241-128)

$185.99

$

Usually ships in 3-6 days

0

34

Toro 232-46

TUBE-INNER

$37.99

$

Usually ships in 3-6 days

0

35

Toro 231-120

TIRE

$264.99

$

Usually ships in 3-6 days

0

36

Toro 3290-243

PIN-LYNCH

$28.99

$

In Stock, only 3 left!

0

37

Toro 5-2490

SCREW-SHOULDER

$9.49

$

Usually ships in 3-6 days

0

38

Toro 63-2740

SPRING-LATCH, TORSION

$16.99

$

Usually ships in 3-6 days

0

39

Toro 3290-476

FASTENER-PANEL

$2.49

$

Usually ships in 3-6 days

0

40

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

41

Toro 63-3460

Decal-Warning

$

$

Not available

Toro 63-3470

DECAL-WARNING

$

$

Not available

42

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

43

Toro 40-8140

Brake Pad
(Superseded to 66-8060)

$18.99

$

In Stock, Qty 20+

0

44

Toro 3290-477

WASHER-CURVED

$1.49

$

Usually ships in 3-6 days

0

Toro 56-2620

Wheel & Tire Assembly (Incl. Ref. #33-35)

$

$

Not available
