38519x58C - Murray 38" Lawn Tractor (2001) Rear Chassis Assembly Parts Diagram

38" Lawn Tractor

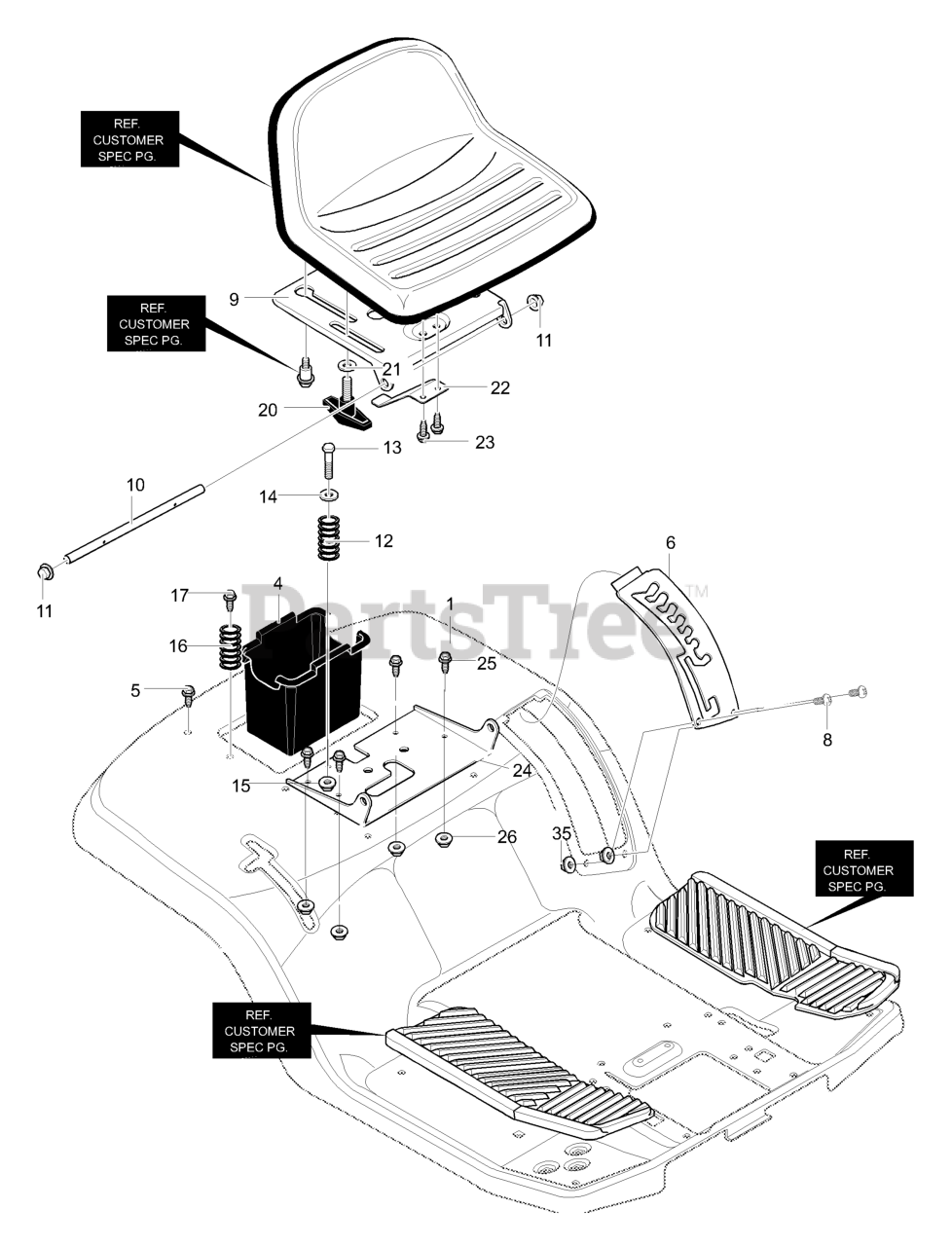

Rear Chassis Assembly Parts Diagram

  • Title

1

Murray 95249-898

Seat Deck, Small

$

$

Currently unavailable

4

Murray 690424MA

Battery Container

$45.99

$

In Stock, only 1 left!

0

5

Murray 711642MA

Screw, 1/4-20x.63
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

6

Murray 94829-821

Plate, Lift Detent

$

$

Currently unavailable

8

Murray 711629

Screw, 10-24x.500

$

$

Not available

9

Murray 94154-898

Seat Support

$6.99

$

Usually ships in 2-12 days

0

10

Murray 95294

Hinge Seat Pivot

$

$

Not available

11

Murray 711627MA

Push Cap Nut

$

$

Not available

12

Murray 710136-821

Comp. Spring

$

$

Currently unavailable

13

Murray 711610

Shoulder Bolt, 1/4-20

$

$

Not available

14

Murray 95293

Washer Cup

$1.99

$

Usually ships in 2-12 days

0

15

Murray 711643

Nut, 1/4-20

$1.49

$

Usually ships in 2-12 days

0

16

Murray 710109-821

Comp. Spring

$

$

Currently unavailable

17

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

20

Murray 711747MA

Wing Bolt 5/16-18x.50

$3.99

$

Usually ships in 2-12 days

0

21

Murray 711644MA

Flat washer

$3.49

$

Usually ships in 2-12 days

0

22

Murray 094057MA

Spring - Leaf

$5.99

$

Usually ships in 2-12 days

0

23

Murray 711592

Screw, 1/4-20x.50

$335.99

$

Usually ships in 2-12 days

0

24

Murray 94153-898

Pivot SEat Bracket

$5.99

$

Usually ships in 2-12 days

0

25

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

26

Murray 711634MA

Nut, 5/16-18 Wdfllk

$3.99

$

Usually ships in 2-12 days

0

35

Murray 711842

Nut, #10-24 Locknut

$8.49

$

Usually ships in 2-12 days

0
