38519x58C - Murray 38" Lawn Tractor (2001) Deck Assembly (part 2) Parts Diagram

38" Lawn Tractor

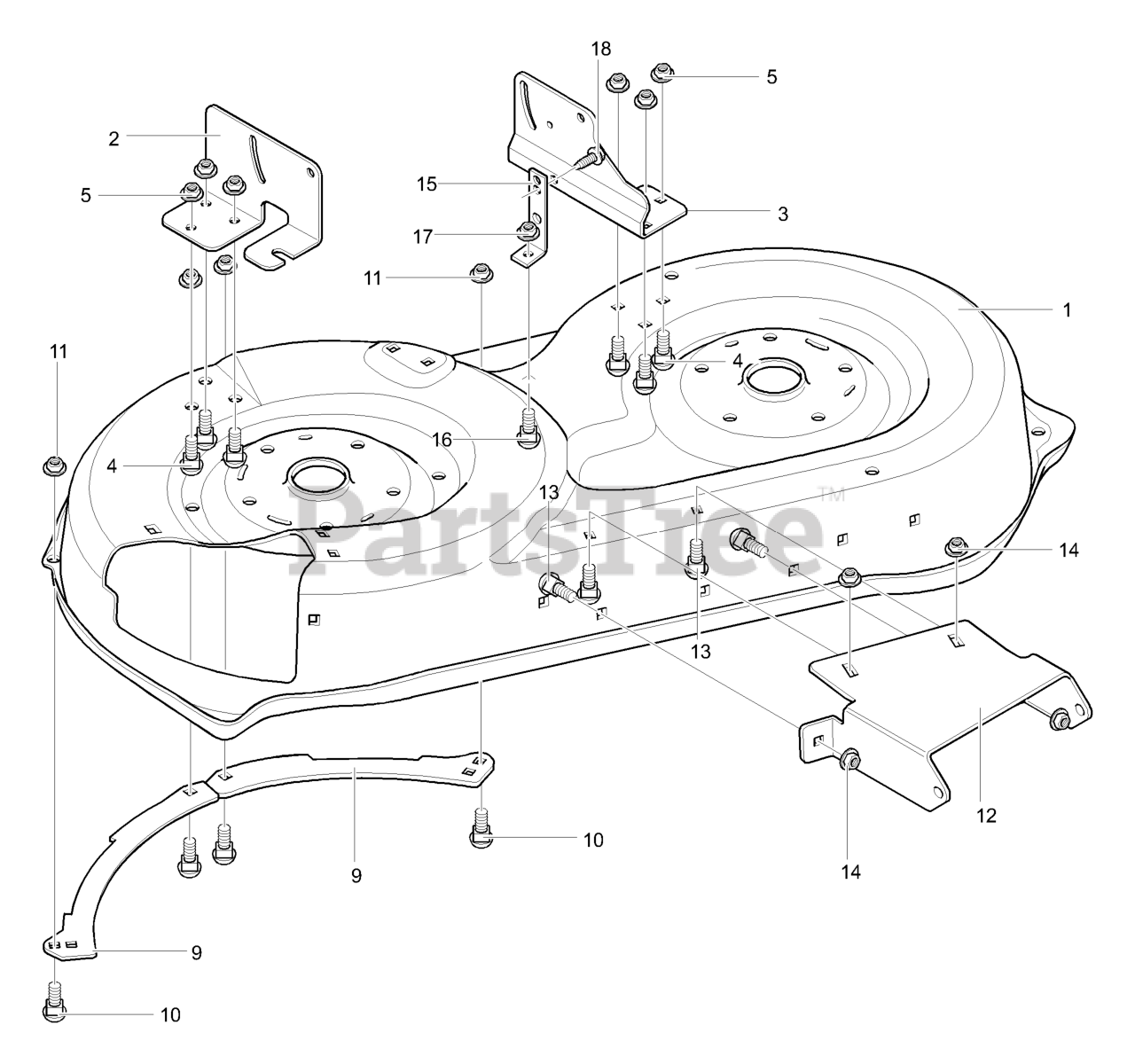

Deck Assembly (part 2) Parts Diagram

  • Title

1

Murray 94060

MOWER DECK, 38"
(Superseded to 691089)

$3.99

$

Usually ships in 2-12 days

0

2

Murray 94052

Bracket, Deck Lift RH

$

$

Not available

3

Murray 94054

Bracket, Deck Lift LH
(Superseded to 691351)

$8.49

$

Usually ships in 2-12 days

0

4

Murray 002X53MA

Bolt, .31-18x.62
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

5

Murray 015X79MA

Nut, .32-18 Flangelock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Murray 91770

Toeguard, Flange
(Superseded to 091770E701MA)

$10.99

$

Usually ships in 2-12 days

0

10

Murray 002X53MA

Bolt, .31-18x.62
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

11

Murray 015X88MA

Nut, .32-18 Flange Centerlock
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

12

Murray 94062

Bracket, Front Deck
(Superseded to 691692)

$3.99

$

Usually ships in 2-12 days

0

13

Murray 002X53MA

Bolt, .31-18x.062
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

14

Murray 015X79MA

Nut, .32-18 Flangelock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Murray 94681

Bracket, Support
(Superseded to 691688)

$4.49

$

In Stock, only 2 left!

0

16

Murray 002X53MA

Bolt, .31-18x.62
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

17

Murray 015X79MA

Nut, .32-18 Flangelock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Murray 26X249MA

Screw, .312-18x.75

$

$

Not available
