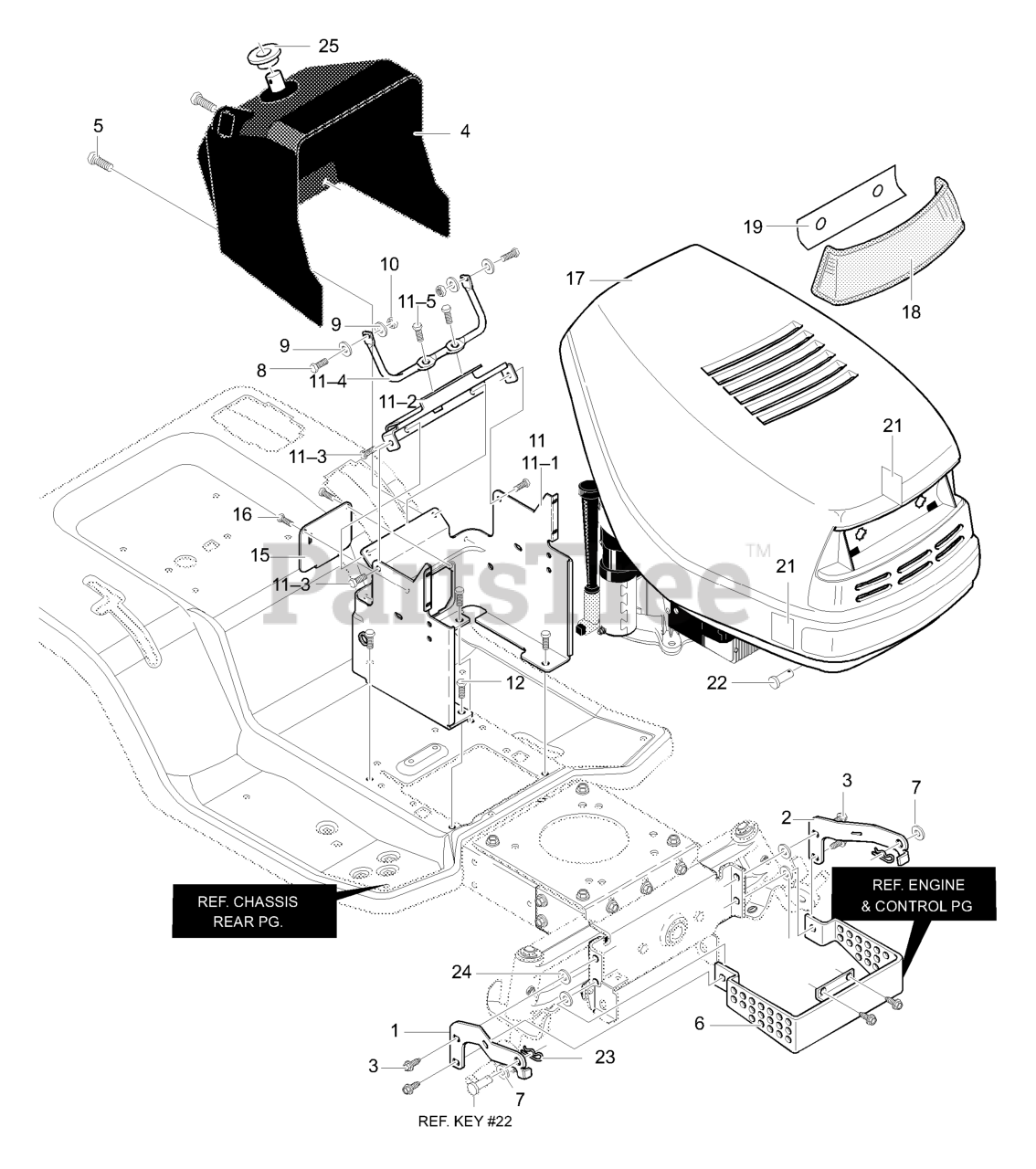

Chassis & Hood Assembly Parts Diagram

  • Title
1

Murray 95432-821

Bracket, Hood RH

$

$

Currently unavailable

2

Murray 95433-821

Bracket, Hood LH

$

$

Currently unavailable

3

Murray 711606MA

Screw, 5/16-18 x 0.75

$7.99

$

In Stock, only 2 left!

0

4

$12.99

$

Usually ships in 2-12 days

0

5

Murray 711762

Screw, 1/4-14x.75

$

$

Currently unavailable

6

Murray 95195-821

Heat Shield Guard

$13.99

$

Usually ships in 2-12 days

0

7

Murray 712480MA

Washer, Flat Insulate

$18.99

$

Usually ships in 2-12 days

0

8

Murray 302628MA

Screw, 1/4-20x.75

$4.49

$

In Stock, Qty 7

0

9

Murray 071067MA

Washer, Flat .286x.63x.065

$82.99

$

In Stock, only 1 left!

0

10

Murray 73826

Nut, 1/4-20 Reghexctrlk

$4.99

$

In Stock, Qty 20+

0

11

Murray 341569-898

Assembly, Lower Console

$

$

Currently unavailable

11-1

Murray 095425

Tower, Lower Dash

$

$

Currently unavailable

11-2

Murray 095426

Support, Steering

$

$

Currently unavailable

11-3

Murray 710264

Screw, 1/4-20x.50

$

$

Not available

11-4

Murray 095406

Rod, Dash Brace

$

$

Currently unavailable

11-5

Murray 710264

Screw, 1/4-20x.50

$

$

Not available

12

Murray 711606MA

Screw, 10-24x.50

$7.99

$

In Stock, only 2 left!

0

15

Murray 94638-898

Panel, Access

$

$

Currently unavailable

16

Murray 711629

Screw, 10-24x.50

$

$

Not available

17

$

$

Currently unavailable

18

Murray 302670MA

Lens, Headlamp

$27.99

$

Usually ships in 2-12 days

0

19

Murray 308492

Foil, Lens

$

$

Not available

21

Murray 301452MA

Foil, Heat Reflector

$10.99

$

Usually ships in 2-12 days

0

22

Murray 711856MA

Pin, Clevis

$4.49

$

Usually ships in 2-12 days

0

23

Murray 711682MA

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

24

Murray 6711MA

Washer, Plastic

$3.99

$

Usually ships in 2-12 days

0

25

Murray 095404

Bushing, Steering Shaft

$

$

Currently unavailable

--

Murray 710898

Decal, Hood Emblem Marathon

$8.99

$

Usually ships in 2-12 days

0

--

Murray 711796

Decal, 12.5/96

$

$

Currently unavailable

--

Murray 711795

Decal, Oleo-Mac 12.5 Polo

$

$

Currently unavailable

--

Murray 711718

Decal, RH Hood 12.5 Polo

$

$

Currently unavailable

--

Murray 711717

Decal, LH Hood 12.5 Polo

$

$

Currently unavailable

--

Murray F-000730J

Instruction Book & Parts List

$

$

Currently unavailable
