38518 (CCR 3650) - Toro 20" GTS Snow Thrower (SN: 270010001 - 270999999) (2007) MUFFLER AND INTAKE MANIFOLD ASSEMBLY BRIGGS AND STRATTON 084233-0198-E8 Parts Diagram

20" GTS Snow Thrower

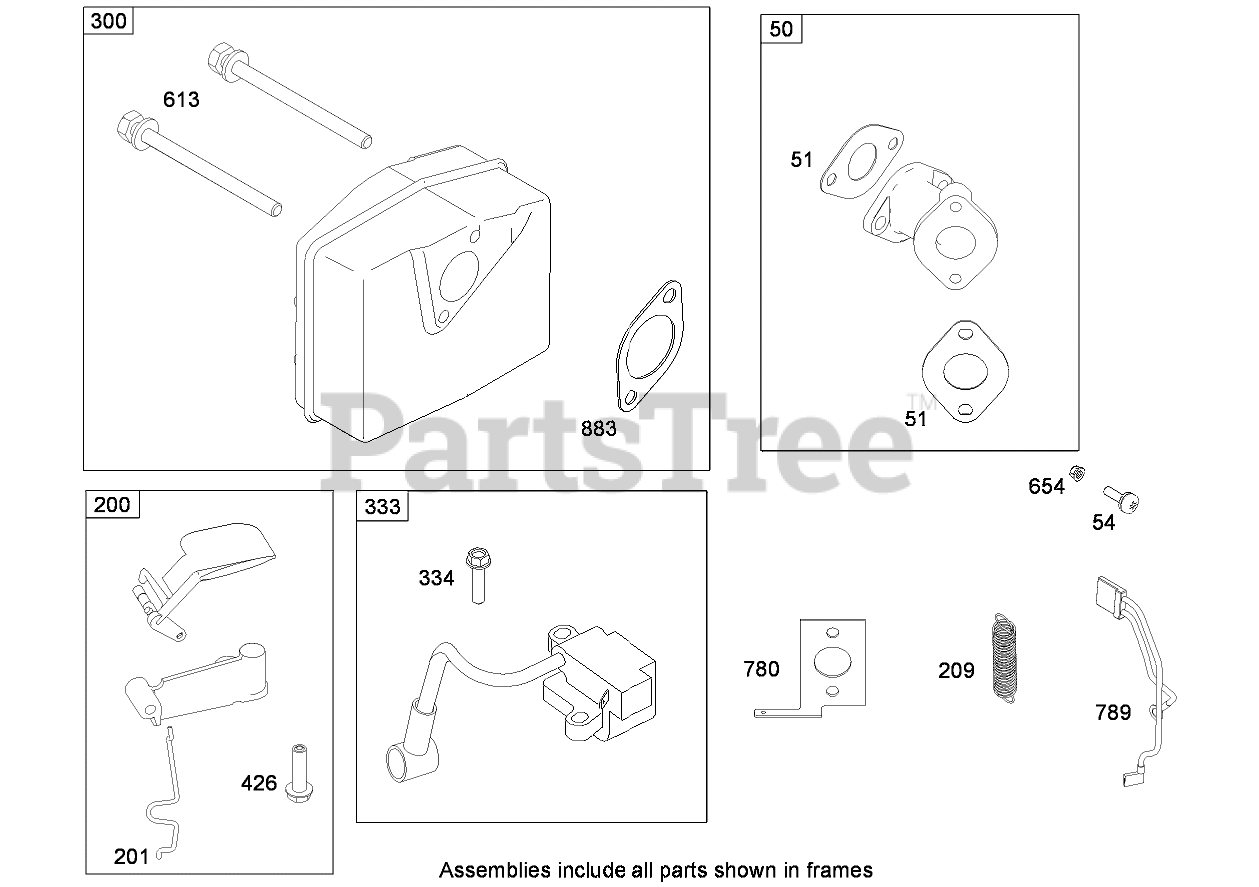

MUFFLER AND INTAKE MANIFOLD ASSEMBLY BRIGGS AND STRATTON 084233-0198-E8 Parts Diagram

  • Title

50

Briggs & Stratton 801232

Manifold-Intake

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

51

Briggs & Stratton 801224

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 15

0

51

Briggs & Stratton 801224

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.99

$

In Stock, Qty 15

0

51

Briggs & Stratton 801224

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$4.99

$

In Stock, Qty 15

0

54

Briggs & Stratton 801230

Screw (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 801289

Blade-Governor

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

201

Briggs & Stratton 801225

Link-Vane, Air

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 6

0

209

Briggs & Stratton 801223

Spring-Governor

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 3 left!

0

300

Briggs & Stratton 801250

Muffler

Note: Obtain parts from www.briggsandstratton.com

$58.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 801268

Armature-Magneto

Note: Obtain parts from www.briggsandstratton.com

$149.99

$

Usually ships in 2-12 days

0

334

Briggs & Stratton 801267

Screw (Magneto Armature)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

426

Briggs & Stratton 801231

Screw (Governor Blade)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 801251

Screw (Muffler)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 801324

Nut (Intake Manifold) (Used Before Code Date 05042600)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 5

0

780

Briggs & Stratton 801228

Anchor-Spring

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

789

Briggs & Stratton 801253

Wire ASM

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 801252

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0
