38518 (CCR 3650) - Toro 20" GTS Snow Thrower (SN: 270010001 - 270999999) (2007) CARBURETOR ASSEMBLY BRIGGS AND STRATTON 084233-0198-E8 Parts Diagram

20" GTS Snow Thrower

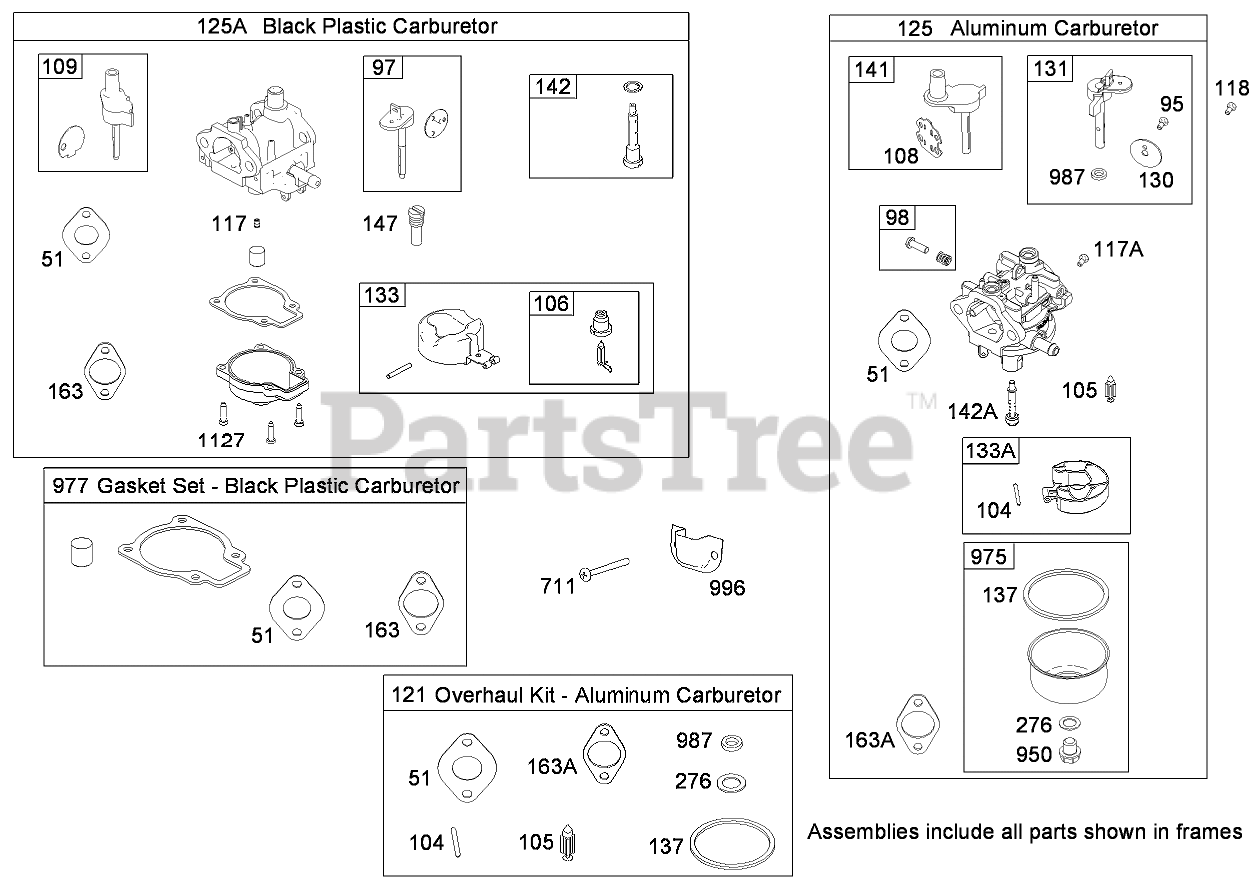

CARBURETOR ASSEMBLY BRIGGS AND STRATTON 084233-0198-E8 Parts Diagram

  • Title

51

Briggs & Stratton 801224

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.99

$

In Stock, Qty 14

0

51

Briggs & Stratton 801224

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$4.99

$

In Stock, Qty 14

0

51

Briggs & Stratton 801224

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 14

0

95

Briggs & Stratton 801415

Screw (Throttle Valve) (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 801306

Shaft-Throttle (for Black Plastic Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

98

Briggs & Stratton 801419

Idle Speed ASM (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Hinge, Float (for Aluminum Carburetor)
(Superseded to 797622)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 10

0

104

Briggs & Stratton 691242

Pin-Hinge, Float (for Aluminum Carburetor)
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

In Stock, Qty 10

0

105

Briggs & Stratton 801423

Valve-Needle, Float (for Aluminum Carburetor)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$8.49

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 801423

Valve-Needle, Float (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 801317

Seat-Inlet (for Black Plastic Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 801413

Valve-Choke (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

109

Briggs & Stratton 801307

Shaft-Choke (for Black Plastic Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

117

Briggs & Stratton 801310

Jet-Main (Standard) (for Black Plastic Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

117A

Briggs & Stratton 801425

Jet-Main (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 801426

Jet-Main (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 801427

Carburetor Overhaul Kit (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 801233

Carburetor (Black Plastic Carburetor)
(Superseded to 801396)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

125A

Briggs & Stratton 801396

Carburetor (Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

130

Briggs & Stratton 801414

Valve-Throttle (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 801417

Throttle Shaft ASM (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 801316

Float-Carburetor (for Black Plastic Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

133A

Briggs & Stratton 801422

Float-Carburetor (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float (for Aluminum Carburetor)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 801418

Choke Shaft ASM (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 8

0

142

Briggs & Stratton 801313

Nozzle-Carburetor (for Black Plastic Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

In Stock, Qty 5

0

142A

Briggs & Stratton 801424

Nozzle-Carburetor (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 801308

Jet-Pilot (for Black Plastic Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 801227

Gasket-Cleaner, Air (for Black Plastic Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 801227

Gasket-Cleaner, Air (for Black Plastic Carburetor)

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$6.99

$

Usually ships in 2-12 days

0

163A

Briggs & Stratton 801397

Gasket-Cleaner, Air (for Aluminum Carburetor)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

Usually ships in 2-12 days

0

163A

Briggs & Stratton 801397

Gasket-Cleaner, Air (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 692255

Washer-Sealing (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing (for Aluminum Carburetor)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.49

$

In Stock, Qty 20+

0

711

Briggs & Stratton 801398

Screw (Carburetor Shield)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

950

Briggs & Stratton 801421

Screw-Bowl, Float (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 801420

Bowl-Float (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$22.99

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 801312

Carburetor Gasket Set (for Black Plastic Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 20+

0

987

Briggs & Stratton 801416

Seal-Shaft, Throttle (for Aluminum Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 801416

Seal-Shaft, Throttle (for Aluminum Carburetor)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.49

$

Usually ships in 2-12 days

0

996

Briggs & Stratton 801226

Shield-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1127

Briggs & Stratton 801318

Screw (Float Bowl) (for Black Plastic Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$2.49

$

Usually ships in 2-12 days

0
