38518 (CCR 3650) - Toro 20" GTS Snow Thrower (SN: 260010001 - 260999999) (2006) IMPELLER DRIVE ASSEMBLY Parts Diagram

20" GTS Snow Thrower

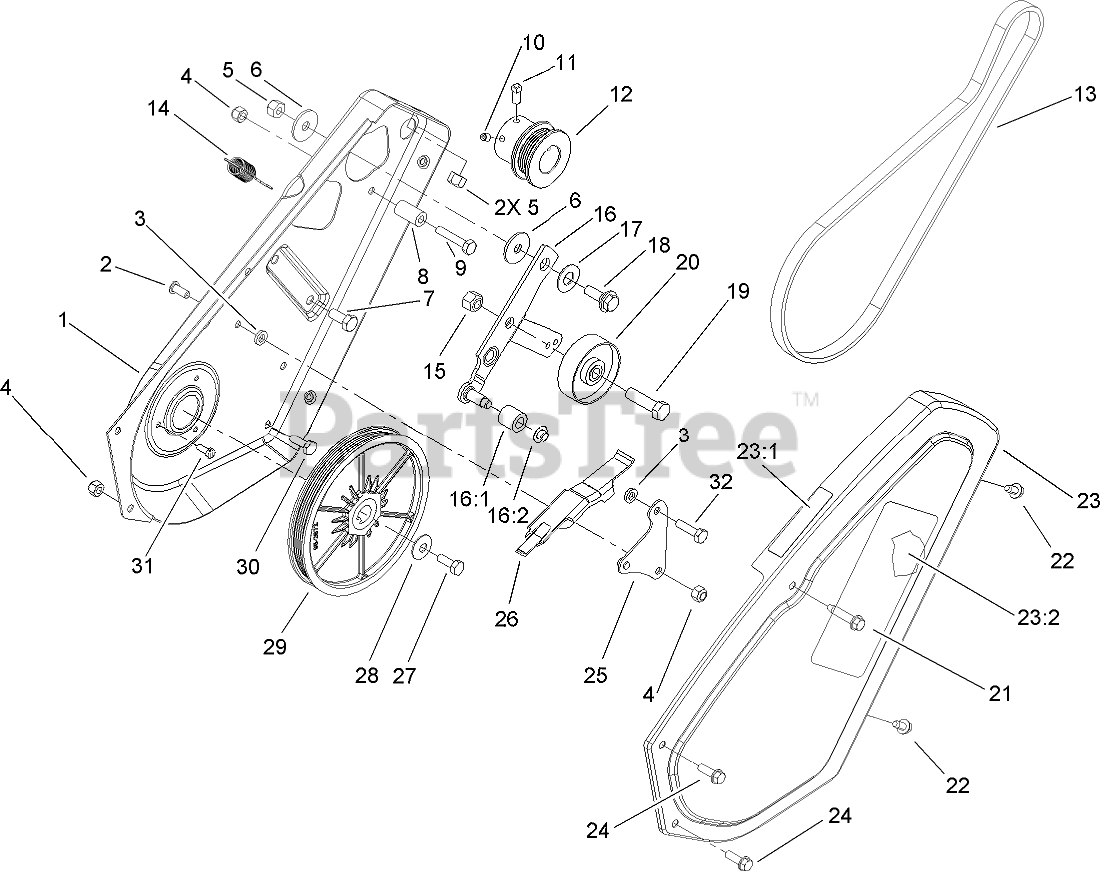

IMPELLER DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 55-8851-03

PLATE-SIDE, LH

$109.99

$

Usually ships in 3-6 days

0

2

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

3

Toro 55-9620

SPACER-PLATE, PIVOT

$1.49

$

Usually ships in 3-6 days

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

8

Toro 55-9530

SLEEVE-GUIDE, BELT

$9.49

$

In Stock, Qty 5

0

9

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

10

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

11

Toro 3241-7

SCREW-SQH

$3.99

$

In Stock, only 2 left!

0

12

Toro 95-2673

PULLEY-ENGINE

$

$

Not available

13

Toro 95-6151

BELT-DRIVE

$25.99

$

In Stock, Qty 13

0

14

Toro 55-9280

SPRING-EXTENSION

$6.99

$

In Stock, Qty 8

0

15

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 18

0

16

Toro 105-3542

IDLER ARM ASM

$68.99

$

Usually ships in 3-6 days

0

16:1

Toro 55-9520

ROLLER-BRAKE

$2.99

$

In Stock, Qty 16

0

16:2

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

17

Toro 25-5641

WASHER

$4.49

$

Usually ships in 3-6 days

0

18

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

19

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 16

0

20

Toro 55-9290

PULLEY-IDLER

$25.99

$

Usually ships in 3-6 days

0

21

Toro 36-3860

SCREW-HWH, TAP

$2.49

$

In Stock, Qty 15

0

22

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

23

Toro 105-1997

COVER-DRIVE

$131.99

$

In Stock, only 2 left!

0

23:1

Toro 104-2767

DECAL-WARNING

$4.49

$

Usually ships in 3-6 days

0

23:2

Toro 60-9480

DECAL

$6.49

$

Usually ships in 3-6 days

0

24

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

25

Toro 55-9570

PIVOT PLATE ASM

$19.99

$

Usually ships in 3-6 days

0

26

Toro 55-9550

BRAKE-ARM

$

$

Not available

27

Toro 321-30

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

28

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

29

Toro 95-2672

PULLEY ROTOR ASM

$28.99

$

In Stock, only 3 left!

0

30

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

32

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
