38518 (CCR 3650) - Toro 20" GTS Snow Thrower (SN: 260010001 - 260999999) (2006) CHUTE ASSEMBLY Parts Diagram

20" GTS Snow Thrower

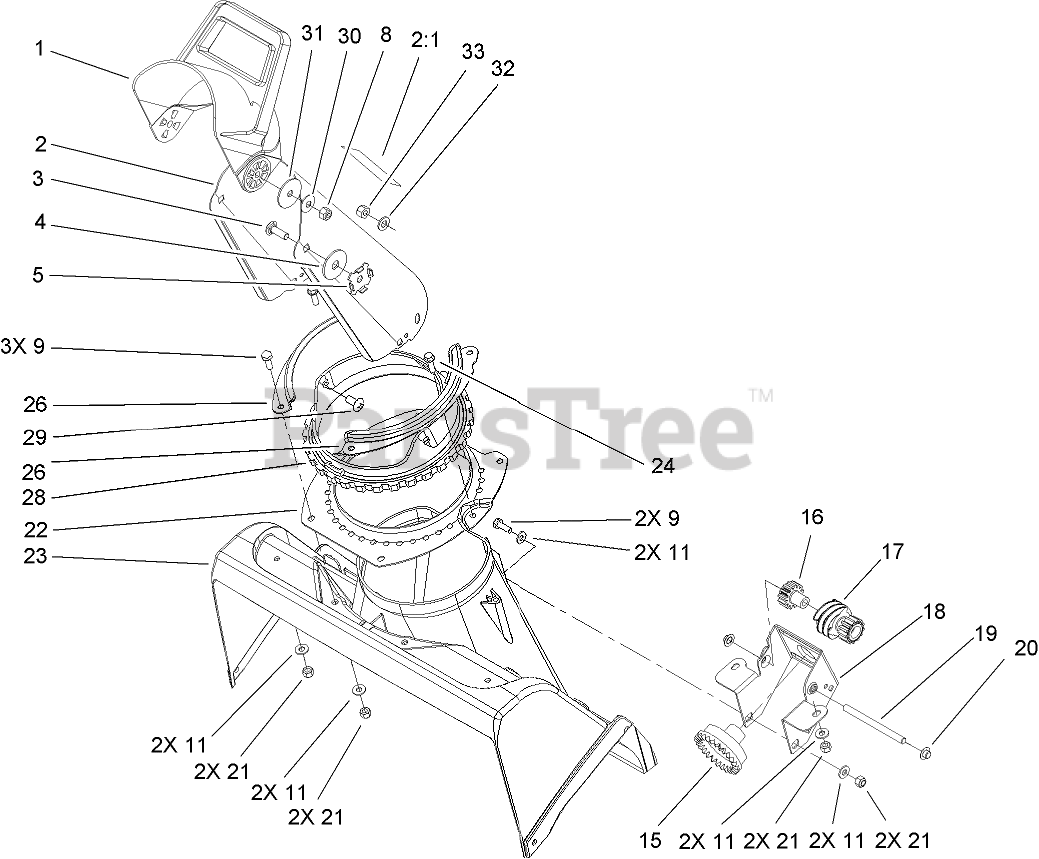

CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 56-2680

CHUTE-DEFLECTOR

$23.99

$

In Stock, only 1 left!

0

2

Toro 104-4115

CHUTE ASM

$68.99

$

In Stock, only 1 left!

0

2:1

Toro 104-4135

DECAL-DANGER

$5.99

$

In Stock, only 1 left!

0

3

Toro 3230-22

SCREW-CARR

$2.49

$

Usually ships in 3-6 days

0

4

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

5

Toro 55-8950

PLATE-FRICTION

$8.99

$

Usually ships in 3-6 days

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 55-8740

GEAR-FACE

$

$

Not available

16

Toro 55-8750

GEAR-SPUR, SPACER

$18.99

$

In Stock, only 1 left!

0

17

Toro 105-3512

GEAR-SPUR/WORM

$40.99

$

In Stock, only 1 left!

0

18

Toro 105-3513

BRACKET-GEAR, CHUTE

$

$

Not available

19

Toro 55-9150

SHAFT-GEAR, WORM

$25.99

$

In Stock, only 1 left!

0

20

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

22

Toro 55-8921-03

RING-SUPPORT, CHUTE

$28.99

$

In Stock, Qty 9

0

23

Toro 105-1950

HOUSING-ROTOR, UPPER

$147.99

$

Usually ships in 3-6 days

0

24

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

26

Toro 55-8910-03

RING-RETAINER, CHUTE

$21.99

$

In Stock, Qty 5

0

28

Toro 55-8720

RING-GEAR, CHUTE

$

$

Not available

29

Toro 100-5486

SCREW-TRUSS HD, PHILLIPS

$2.49

$

Usually ships in 3-6 days

0

30

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

31

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

32

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

33

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0
