38518 (CCR 3650) - Toro 20" GTS Snow Thrower (SN: 240000001 - 240999999) (2004) HANDLE ASSEMBLY Parts Diagram

20" GTS Snow Thrower

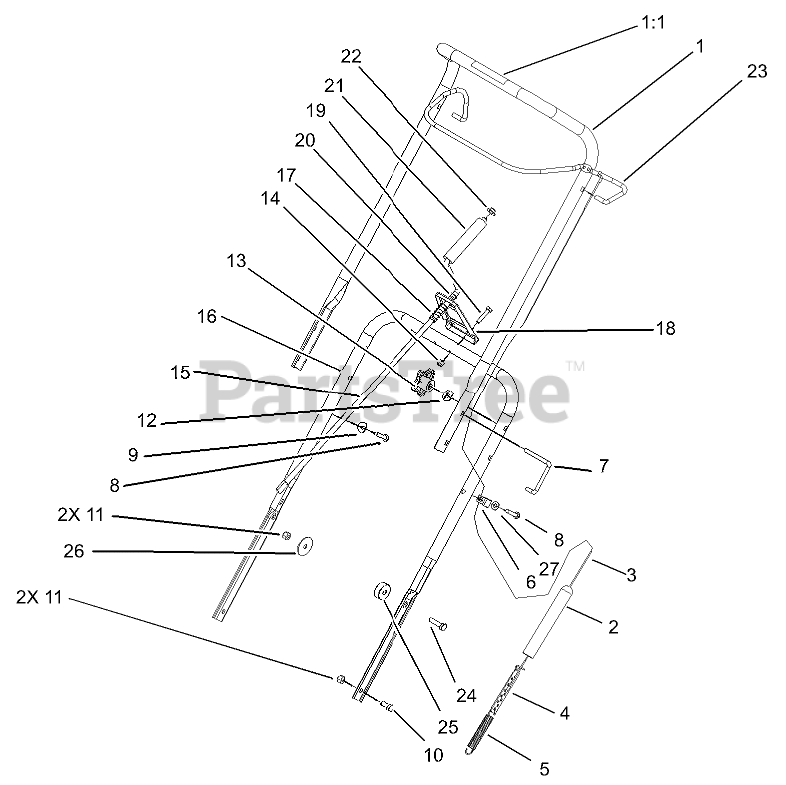

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-2669

UPPER HANDLE ASM

$147.99

$

Usually ships in 3-6 days

0

1:1

Toro 104-2775

DECAL-DRIVE, ROTOR

$4.49

$

Usually ships in 3-6 days

0

2

Toro 55-9390

COVER-SPRING

$9.99

$

In Stock, only 3 left!

0

3

Toro 55-9322

CABLE-CLUTCH

$11.99

$

In Stock, Qty 7

0

4

Toro 55-9380

ADJUSTER-CABLE

$9.49

$

In Stock, only 2 left!

0

5

Toro 55-9270

SPRING-EXTENSION

$6.99

$

In Stock, only 4 left!

0

6

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

7

Toro 98-2266

LOCK-HANDLE

$5.49

$

In Stock, only 2 left!

0

8

Toro 61-8640

SCREW
(Superseded to 36-3860)

$2.49

$

In Stock, Qty 15

0

9

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

12

Toro 75-9130

WASHER-CURVED
(Superseded to 107-3844)

$1.49

$

In Stock, Qty 20+

0

13

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 10

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 55-9140

ROD-CRANK, CHUTE

$

$

Not available

16

Toro 55-9121-03

HANDLE-LOWER

$108.99

$

Usually ships in 3-6 days

0

17

Toro 104-8664

SPRING-COMPRESSION

$11.99

$

Usually ships in 3-6 days

0

18

Toro 55-9090-03

SUPPORT-CRANK, CHUTE

$

$

Not available

19

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

20

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 10

0

21

Toro 40-8230

GRIP-CONTROL, CHUTE

$16.99

$

Usually ships in 3-6 days

0

22

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

23

Toro 100-5473-03

BAIL-CONTROL

$51.99

$

In Stock, only 4 left!

0

24

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

25

Toro 105-1961

SPACER

$5.49

$

In Stock, only 1 left!

0

26

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
