38517 (CCR 3650) - Toro 20" GTS Snow Thrower (SN: 260010001 - 260999999) (2006) ENGINE, GAS TANK AND FRAME ASSEMBLY Parts Diagram

20" GTS Snow Thrower

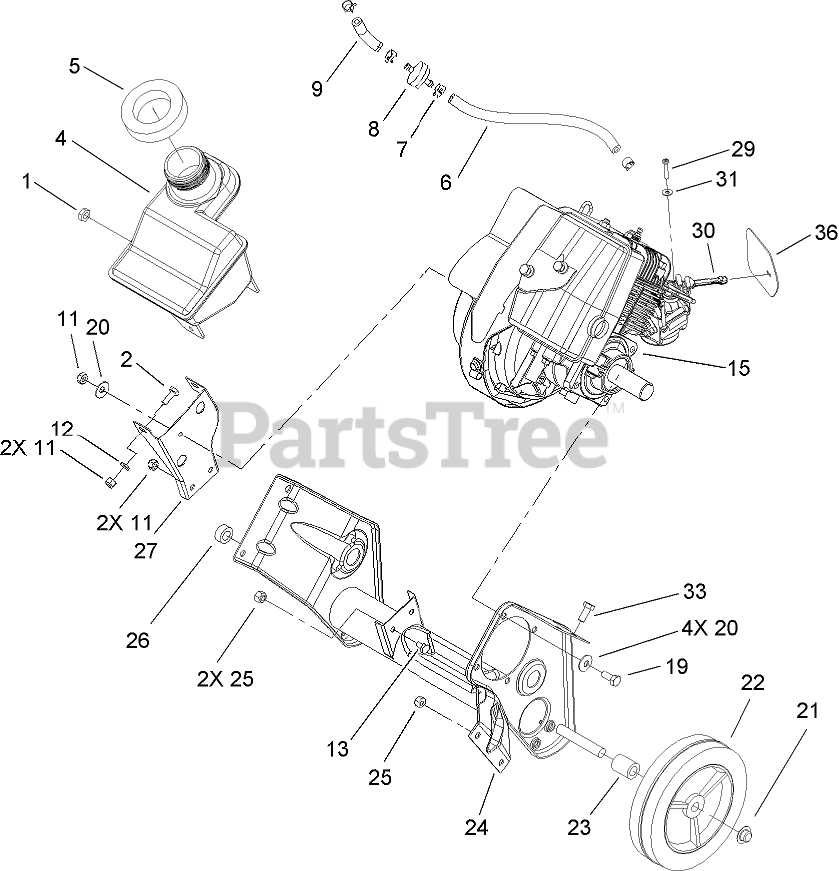

ENGINE, GAS TANK AND FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 32152-8

NUT-LOCK, CONE

$3.49

$

In Stock, only 1 left!

0

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 105-8952

Tank-Gas

$93.99

$

In Stock, only 1 left!

0

5

Toro 55-9310

SEAL-FOAM

$

$

Not available

6

Toro 49-2482

LINE-FUEL

$16.99

$

In Stock, only 4 left!

0

7

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

8

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

9

Toro 94-9932

HOSE-FUEL
(Superseded to 109-0304)

$2.49

$

In Stock, Qty 11

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

15

Engine-Briggs and Stratton, 084232-0121-E1

Note: Not serviced separately

$

$

Not available

15

Engine-Briggs and Stratton, 084232-0121-E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

19

Toro 322-3

SCREW-HH

Note: Not serviced separately

$0.99

$

In Stock, Qty 13

0

20

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

21

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

22

Toro 66-6510

WHEEL

$24.99

$

In Stock, only 3 left!

0

23

Toro 66-6501

SPACER-WHEEL

$3.99

$

In Stock, Qty 20+

0

24

$

$

Not available

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 66-6500

SPACER-WHEEL

$3.49

$

In Stock, only 2 left!

0

27

Toro 105-1968-03

BRACKET-SUPPORT, RECOIL

$12.99

$

Usually ships in 3-6 days

0

29

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 10

0

30

Toro 104-0878

LEVER-CHOKE

$14.99

$

In Stock, only 2 left!

0

31

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

36

Toro 108-7340

SHIELD-HOLE, CHOKE
(Superseded to 110-3444)

$5.99

$

Usually ships in 3-6 days

0
