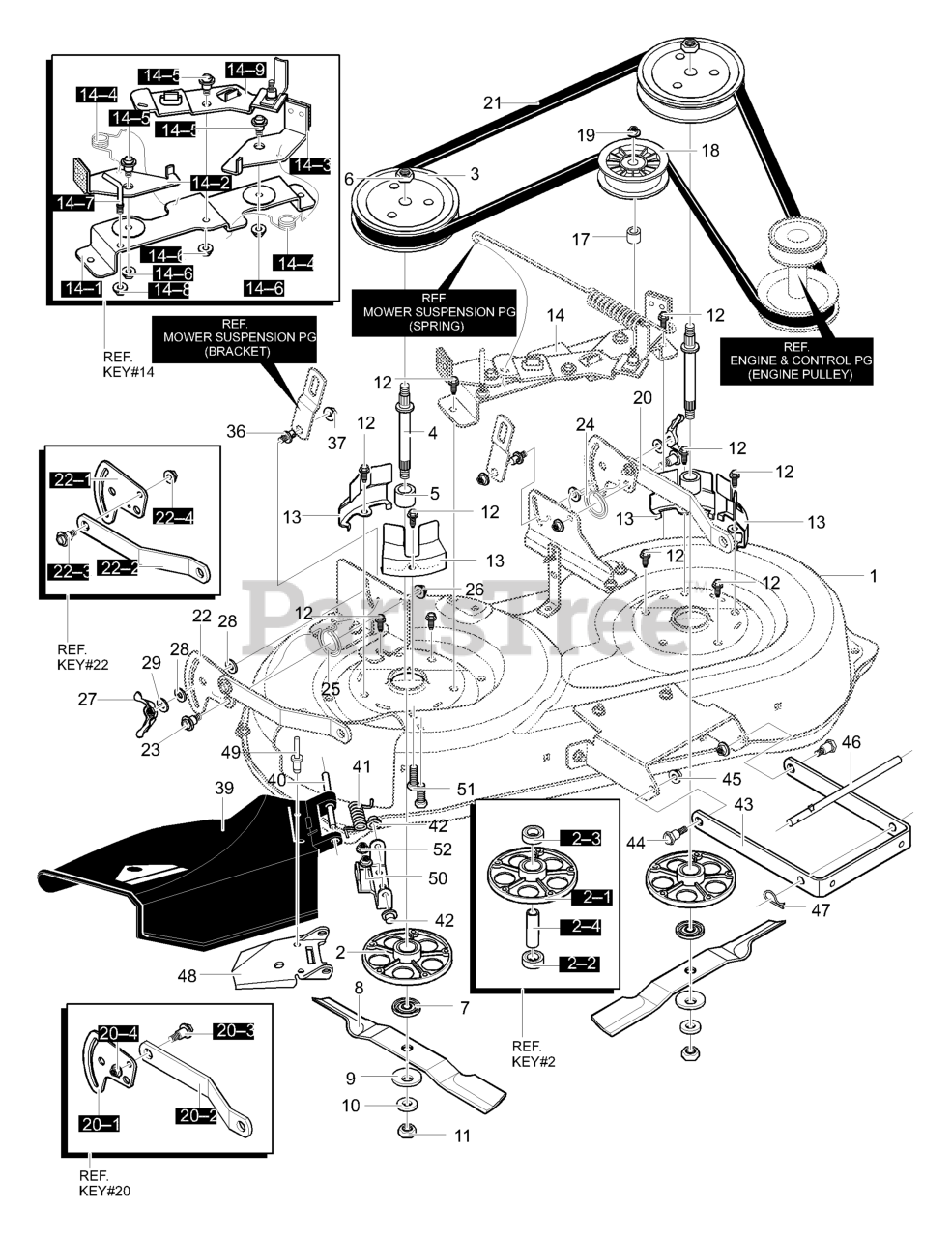

38516x53A - Murray 38" Lawn Tractor (2000) Deck Assembly (part 1) Parts Diagram

38" Lawn Tractor

Deck Assembly (part 1) Parts Diagram

  • Title

1

Murray 94061-821

Mower Deck Assembly

$

$

Currently unavailable

2

Murray 690222

Jackshaft Assembly
(Superseded to 693557)

$

$

Not available

2-1

Murray 94388

Jackshaft Housing
(Superseded to 690979)

$3.49

$

In Stock, Qty 8

0

2-2

Murray 092281MA

Bearing, Upper

$12.99

$

Usually ships in 2-12 days

0

2-3

Murray 092282MA

Bearing, Lower

$11.99

$

Usually ships in 2-12 days

0

2-4

Murray 090904MA

Spacer

$17.99

$

Usually ships in 2-12 days

0

3

Murray 690174

Pulley, Quill

$

$

Currently unavailable

4

Murray 094129

Jackshaft

$21.99

$

In Stock, Qty 11

0

5

Murray 094130MA

Spacer

$5.99

$

In Stock, Qty 12

0

6

Murray 711626

Nut, 9/16-18

$

$

Currently unavailable

7

Murray 1001035

Adapter, Blade

$9.99

$

In Stock, only 1 left!

0

8

Murray 94913

Blade, 38 inches
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

9

Murray 17X166MA

Washer

$13.99

$

In Stock, Qty 18

0

10

Murray 17X165MA

Flat washer

$16.99

$

In Stock, only 4 left!

0

11

Murray 15X100MA

Nut, .56-18 Regular

$3.99

$

In Stock, Qty 10

0

12

Murray 0025X7MA

Engine Bolt 3/8x1.25
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

13

Murray 94051-821

Cover, Segment Belt Guide

$

$

Currently unavailable

14

Murray 94691-821

Asm. Brake with Support

$

$

Currently unavailable

14-1

Murray 94059

Bracket, Brake Mtg

$

$

Currently unavailable

14-2

Murray 94047

Assy, Brake RH
(Superseded to 691633)

$4.99

$

In Stock, only 2 left!

0

14-3

Murray 94048

Assy, Brake LH

$

$

Currently unavailable

14-4

Murray 710227

Torsion Spring

$33.99

$

Usually ships in 2-12 days

0

14-5

Murray 710098

Bolt, Shoulder 3/8-16
(Superseded to 710634)

$12.99

$

Usually ships in 2-12 days

0

14-6

Murray 710140

Nut, 3/8-16 Mack

$10.99

$

Usually ships in 2-12 days

0

14-7

Murray 094781MA

Screw - Guide

$60.99

$

Usually ships in 2-12 days

0

14-8

Murray 710204

Nut, 5/16-18 Hex

$5.49

$

Usually ships in 2-12 days

0

14-9

Murray 94177

Assy., Idler Arm

$213.99

$

In Stock, only 1 left!

0

17

Murray 690369MA

Spacer, 1/2 to 17MM

$

$

Not available

18

Murray 690451

Idler Pulley

$2.99

$

Usually ships in 2-12 days

0

19

Murray 711920MA

Nut, 3/8-16 Hwdfllk Mack

$4.49

$

Usually ships in 2-12 days

0

20

Murray 690159-821

Asm., Plate Rear Sus. Brkt LH

$

$

Currently unavailable

20-1

Murray 94128

Plate-Suspension
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

20-2

Murray 94055

Suspension Bracket Rear

$

$

Currently unavailable

20-3

Murray 710095

Bolt, Shoulder

$4.99

$

Usually ships in 2-12 days

0

20-4

Murray 710140

Nut, 3/8-16

$10.99

$

Usually ships in 2-12 days

0

21

Murray 710193

Belt, Barback Cl 84.24

$

$

Currently unavailable

22

Murray 690158-821

Assy, Plate,Rear Sus Bkt RH

$

$

Currently unavailable

22-1

Murray 94128

Plate-Suspension
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

22-2

Murray 94055

Suspension Bracket Rear

$

$

Currently unavailable

22-3

Murray 710095

Bolt, Shoulder

$4.99

$

Usually ships in 2-12 days

0

22-4

Murray 710140

Nut, 3/8-16

$10.99

$

Usually ships in 2-12 days

0

23

Murray 711611

Bolt, Shoulder

$1.49

$

Usually ships in 2-12 days

0

24

Murray 710113

Spring, Torsion LH

$

$

Not available

25

Murray 710112

Spring, Torsion RH

$11.99

$

In Stock, only 2 left!

0

26

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

27

Murray 711600

Wingnut, 5/16-18

$

$

Currently unavailable

28

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 8

0

29

Murray 711628MA

Washer
(Superseded to 017X45MA)

$

$

Not available

36

Murray 711595

Pin, Hanger

$

$

Not available

37

Murray 711622

Nut, 3/8-16

$

$

Currently unavailable

39

Murray 094687MA

Deflector Chute

$78.99

$

Usually ships in 2-12 days

0

40

Murray 95303MA

Asm., Bracket Idler
(Superseded to 094957ZMA)

$10.99

$

In Stock, only 1 left!

0

41

Murray 710194

Spring, Torsion

$

$

Currently unavailable

42

Murray 711627MA

Nut, Push Cap

$

$

Not available

43

Murray 94058-821

Bracket, Frt Suspension

$

$

Currently unavailable

44

Murray 711611

Shoulder Bolt

$1.49

$

Usually ships in 2-12 days

0

45

Murray 711622

Nut, 3/8-16 Wdfllk Mack

$

$

Currently unavailable

46

Murray 95295

Rod, Hanger

$

$

Currently unavailable

47

Murray 711676

Hair Pin

$

$

Currently unavailable

48

Murray 94686-821

Deflector Support

$

$

Currently unavailable

49

Murray 711624MA

Rivet- Semi

$3.99

$

Usually ships in 2-12 days

0

50

Murray 94956-821

Bracket, Chute Attach

$

$

Currently unavailable

51

Murray 711661

Carr. Bolt, 5/16-18x.63

$

$

Not available

52

Murray 711634MA

Nut, 5/16-18 Wdfllk

$3.99

$

Usually ships in 2-12 days

0
