38515 (CCR 2450) - Toro 24" GTS Snow Thrower (SN: 310006876 - 310999999) (2010) FLYWHEEL, BLOWER HOUSING AND REWIND STARTER ASSEMBLY BRIGGS AND STRATTON 084132-0120-E8 Parts Diagram

24" GTS Snow Thrower

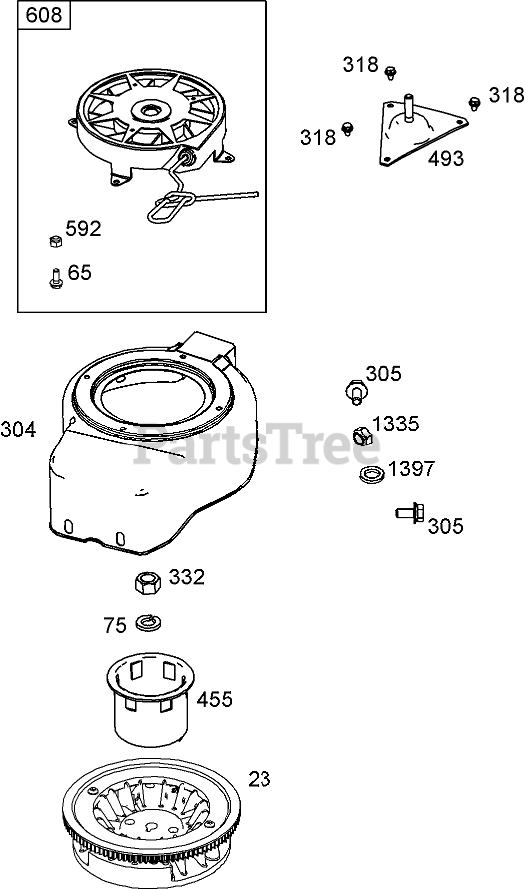

FLYWHEEL, BLOWER HOUSING AND REWIND STARTER ASSEMBLY BRIGGS AND STRATTON 084132-0120-E8 Parts Diagram

  • Title
23

Briggs & Stratton 801246

Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

65

Briggs & Stratton 801243

Screw (Rewind Starter)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 801237

Washer (Flywheel)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 801257

Housing-Blower
(Superseded to 801405)

Note: Obtain parts from www.briggsandstratton.com

$66.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 801239

Screw (Blower Housing)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

318

Briggs & Stratton 801241

Screw (Mounting Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 801238

Nut (Flywheel)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 801235

Cup-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 801240

Bracket-Mounting

Note: Obtain parts from www.briggsandstratton.com

$36.99

$

Usually ships in 2-12 days

0

592

Briggs & Stratton 801244

Nut (Rewind Starter)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 801242

Starter-Rewind
(Superseded to 80010472)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1335

Briggs & Stratton 801269

Nut (Blower Housing)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

Usually ships in 2-12 days

0

1397

Briggs & Stratton 801270

Washer (Blower Housing)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

Usually ships in 2-12 days

0
