38515 (CCR 2450) - Toro 24" GTS Snow Thrower (SN: 290000001 - 290999999) (2009) HANDLE ASSEMBLY Parts Diagram

24" GTS Snow Thrower

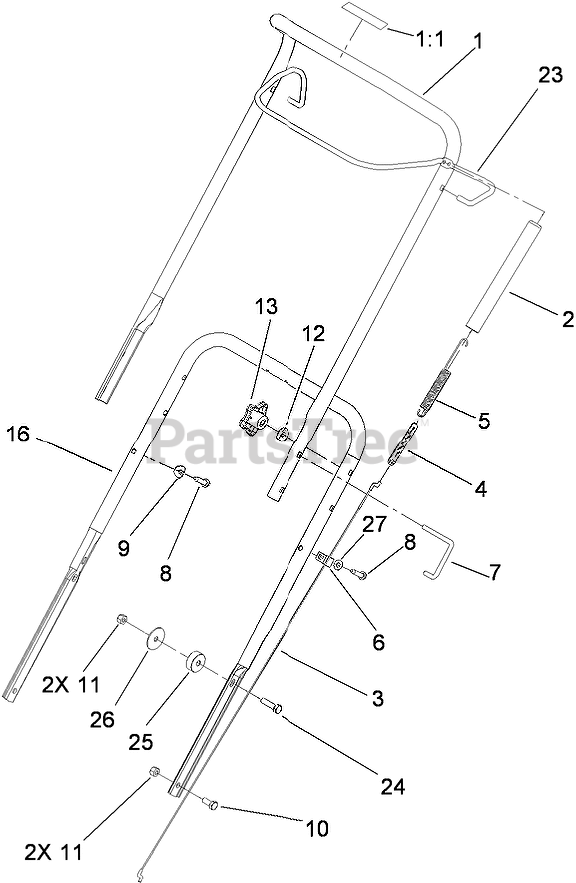

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-2669

UPPER HANDLE ASM

$147.99

$

Usually ships in 3-6 days

0

1:1

Toro 104-2775

DECAL-DRIVE, ROTOR

$4.49

$

Usually ships in 3-6 days

0

2

Toro 71-5530

COVER-SPRING

$5.49

$

In Stock, Qty 9

0

3

Toro 110-2182

CABLE-CLUTCH

$25.99

$

Usually ships in 3-6 days

0

4

Toro 71-5330

ADJUSTER-CABLE, CLUTCH
(Superseded to 136-7126)

$6.99

$

In Stock, Qty 19

0

5

Toro 110-2181

SPRING-EXTENSION

$9.49

$

In Stock, only 3 left!

0

6

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

7

Toro 98-2266

LOCK-HANDLE

$5.49

$

In Stock, Qty 20+

0

8

Toro 32144-110

SCREW-HWH

$1.49

$

In Stock, only 4 left!

0

9

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 13

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 20+

0

13

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 20+

0

16

Toro 55-9121-03

HANDLE-LOWER

$108.99

$

Usually ships in 3-6 days

0

23

Toro 100-5473-03

BAIL-CONTROL

$51.99

$

In Stock, only 4 left!

0

24

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

25

Toro 105-1961

SPACER

$5.49

$

In Stock, only 1 left!

0

26

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
