38515 (CCR 2450) - Toro 24" GTS Snow Thrower (SN: 260000001 - 260999999) (2006) CHUTE ASSEMBLY Parts Diagram

24" GTS Snow Thrower

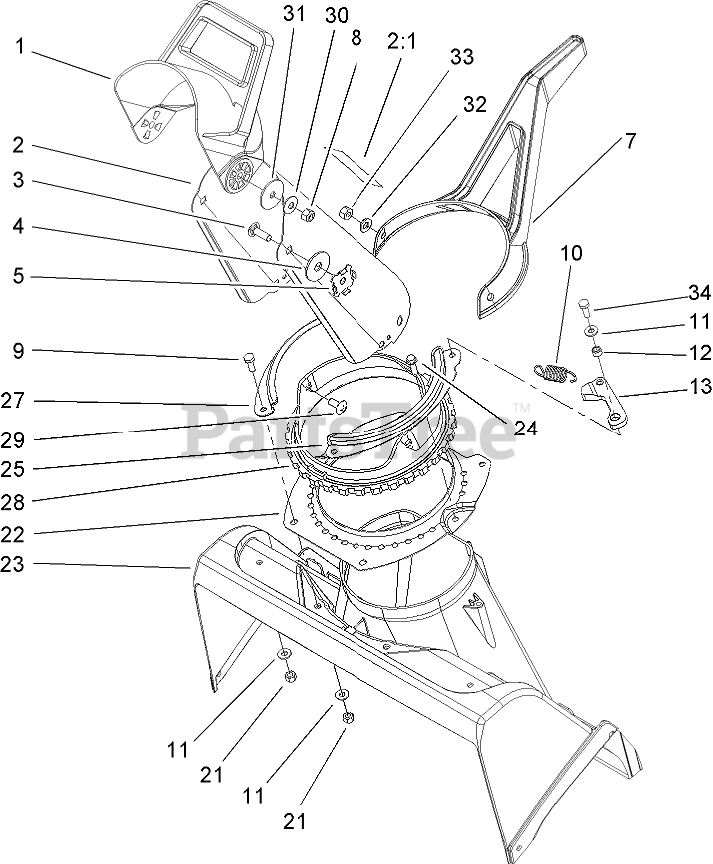

CHUTE ASSEMBLY Parts Diagram

  • Title

1

Toro 56-2680

CHUTE-DEFLECTOR

$23.99

$

Usually ships in 3-6 days

0

2

Toro 104-4115

CHUTE ASM

$68.99

$

In Stock, only 1 left!

0

2:1

Toro 104-4135

DECAL-DANGER

$5.99

$

In Stock, only 1 left!

0

3

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

4

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

5

Toro 55-8950

PLATE-FRICTION

$8.99

$

Usually ships in 3-6 days

0

7

Toro 94-9914

HANDLE-CONTROL, CHUTE

$11.99

$

In Stock, Qty 11

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 80-4600

SPRING-EXTENSION

$7.99

$

In Stock, Qty 9

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, only 2 left!

0

13

Toro 80-4610

DETENT

$12.99

$

In Stock, Qty 10

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

22

Toro 55-8921-03

RING-SUPPORT, CHUTE

$28.99

$

In Stock, Qty 9

0

23

Toro 105-1950

HOUSING-ROTOR, UPPER

$147.99

$

Usually ships in 3-6 days

0

24

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

25

Toro 71-4980-03

RETAINER-CHUTE, LH

$

$

Not available

27

Toro 71-4990-03

RETAINER-CHUTE, RH

$

$

Not available

28

Toro 104-2763

RING-CHUTE

$47.99

$

In Stock, Qty 7

0

29

Toro 100-5487

SCREW-PTH

$1.99

$

In Stock, Qty 20+

0

30

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

31

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

32

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 14

0

33

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

34

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
