38515 (CCR 2450) - Toro 24" GTS Snow Thrower (SN: 230000001 - 230999999) (2003) ENGINE AND FRAME ASSEMBLY Parts Diagram

24" GTS Snow Thrower

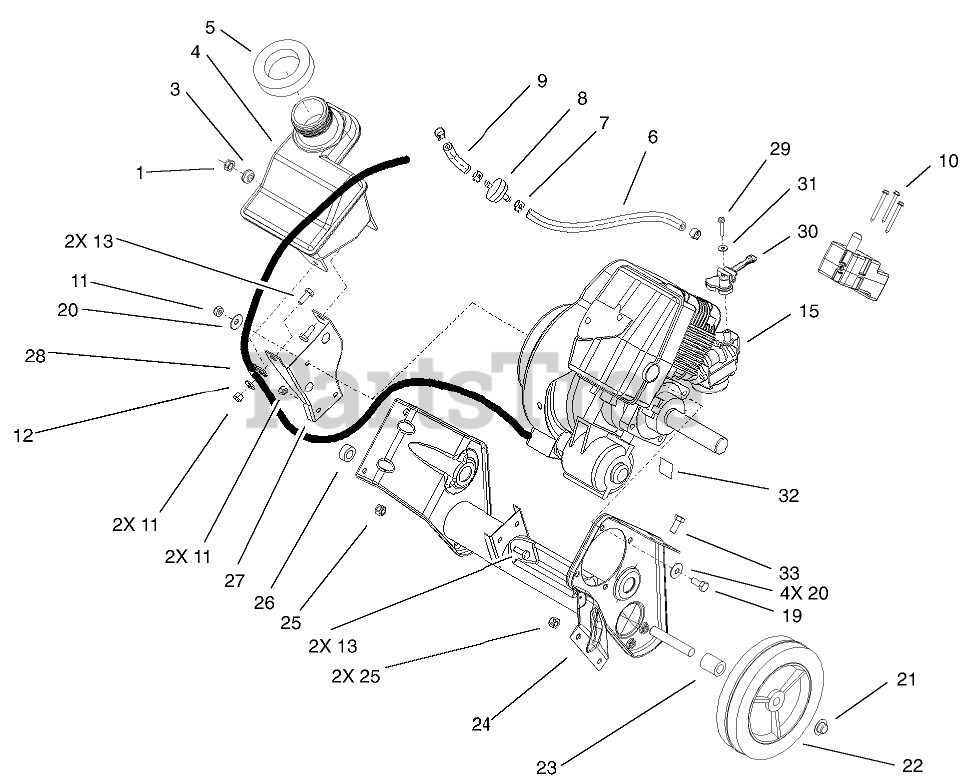

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 32152-8

NUT-LOCK, CONE

$3.49

$

In Stock, only 1 left!

0

3

Toro 237-89

GROMMET-RUBBER

$3.49

$

In Stock, only 4 left!

0

4

Toro 94-9920

Tank-Gas
(Superseded to 105-8952)

$93.99

$

In Stock, only 1 left!

0

5

Toro 55-9310

SEAL-FOAM

$

$

Not available

6

Toro 49-2482

LINE-FUEL

$16.99

$

In Stock, only 4 left!

0

7

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

8

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

9

Toro 94-9932

HOSE-FUEL
(Superseded to 109-0304)

$2.49

$

In Stock, Qty 11

0

10

Toro 32144-27

Screw-Plastite (only on: 38516, 38536)

$7.49

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Engine-Briggs and Stratton, 084132-0120-E1 (Only on: 38515, 38535)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

15

Engine-Briggs and Stratton, 084132-0120-E1 (Only on: 38515, 38535)

Note: Not serviced separately

$

$

Not available

15

Engine-Briggs and Stratton, 084133-0196-E1 (Only on: 38516, 38536)

Note: Not serviced separately

$

$

Not available

15

Engine-Briggs and Stratton, 084133-0196-E1 (Only on: 38516, 38536)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

19

Toro 322-3

SCREW-HH

Note: Not serviced

$0.99

$

In Stock, Qty 13

0

20

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

21

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

22

Toro 66-6510

WHEEL

$24.99

$

In Stock, only 3 left!

0

23

Toro 66-6501

SPACER-WHEEL

$3.99

$

In Stock, Qty 20+

0

24

Toro 105-1965-03

FRAME

$

$

Not available

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 66-6500

SPACER-WHEEL

$3.49

$

In Stock, only 2 left!

0

27

Toro 105-1968-03

BRACKET-SUPPORT, RECOIL

$12.99

$

Usually ships in 3-6 days

0

28

Toro 2412-91

Clamp (only on: 38516, 38536)

$3.99

$

In Stock, only 2 left!

0

29

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 10

0

30

Toro 104-0878

LEVER-CHOKE

$14.99

$

In Stock, only 2 left!

0

31

Toro 104-4143

WASHER

$1.99

$

In Stock, only 4 left!

0

32

Toro 104-9742

Decal-Level, Noise (Eec 104)(only on: 38535, 38536)

$

$

Not available

33

Toro 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

Toro 104-9705

Cord-Electric (only on: 38516)
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
