38514x95A - Murray 38" Lawn Tractor (1997) Steering Parts Diagram

38" Lawn Tractor

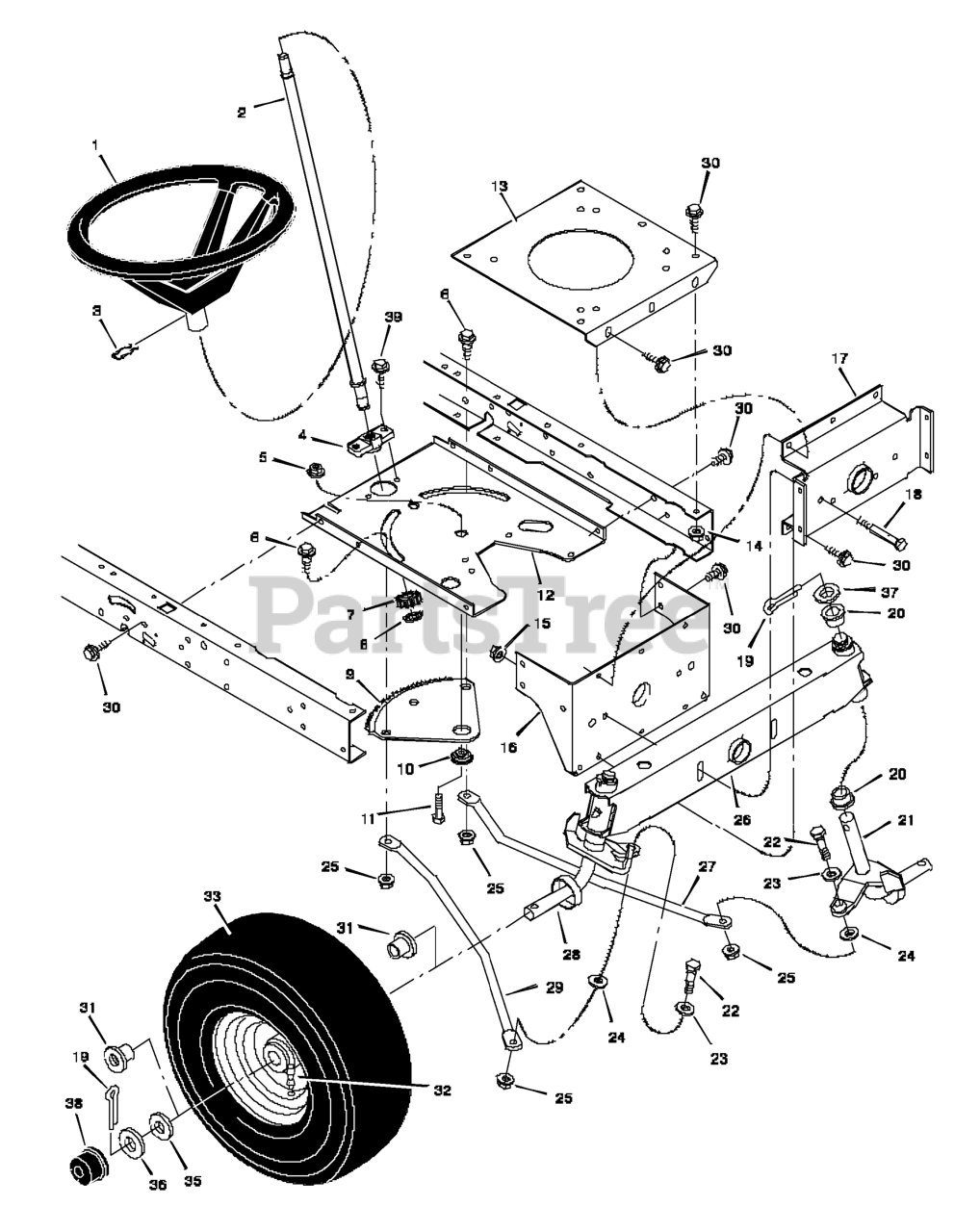

Steering Parts Diagram

  • Title
1

Murray 095441

Wheel, Steering

$

$

Currently unavailable

2

Murray 94127 Z

Post, Steering

$

$

Currently unavailable

3

Murray 094131MA

Clip, Retainer

$4.99

$

In Stock, only 1 left!

0

4

Murray 094124MA

Bearing

$14.99

$

In Stock, only 1 left!

0

5

Murray 15X113MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

6

Murray 009X57MA

Bolt, Shoulder

$9.99

$

In Stock, Qty 11

0

7

Murray 094122

Gear, Pinion

$

$

Not available

8

Murray 011X25MA

Ring, Snap

$4.49

$

In Stock, Qty 5

0

9

Murray 094121MA

Gear, Sector

$

$

Not available

10

Murray 094123MA

Bearing

$12.99

$

In Stock, only 1 left!

0

11

Murray 001X84MA

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

12

Murray 94003E701

Plate, Steering

$

$

Currently unavailable

13

Murray 94006E701

Plate, Engine

$114.99

$

Usually ships in 2-12 days

0

14

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

15

Murray 15X118MA

Nut, Flange

$4.49

$

Usually ships in 2-12 days

0

16

Murray 094013E701MA

Bracket, Hanger
(Superseded to 1001270E701MA)

$165.99

$

Usually ships in 2-12 days

0

17

Murray 094007E701MA

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

18

$3.99

$

Usually ships in 2-12 days

0

19

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 11

0

20

Murray 092527MA

Bearing

$6.49

$

In Stock, only 4 left!

0

21

Murray 94576F200

Spindle Assembly, Left

$

$

Currently unavailable

22

$4.49

$

In Stock, only 1 left!

0

23

Murray 17X104MA

Washer
(Superseded to 710083MA)

$7.49

$

In Stock, only 2 left!

0

24

Murray 017X53MA

Washer
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

25

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

26

Murray 94012E701

Axle Assembly

$

$

Currently unavailable

27

Murray 94021E701

Drag Link, Left

$

$

Currently unavailable

28

Murray 094575E701MA

Spindle Assembly, Right

$173.99

$

Usually ships in 2-12 days

0

29

Murray 94020E701

Drag Link, Right

$

$

Currently unavailable

30

$

$

Not available

31

Murray 091334

Bearing, Wheel

$

$

Not available

32

Murray 024373MA

Stem, Valve

$

$

Not available

33

$91.99

$

Usually ships in 2-12 days

0

--

$31.99

$

Usually ships in 2-12 days

0

34

Murray 094578601

Wheel and Tire Assembly

$190.99

$

Usually ships in 2-12 days

0

35

$4.99

$

In Stock, Qty 15

0

36

$6.99

$

Usually ships in 2-12 days

0

37

$3.99

$

In Stock, only 2 left!

0

38

Murray 094618MA

Hub Cap

Note: (Optional)

$5.99

$

In Stock, only 4 left!

0

39

$4.99

$

In Stock, Qty 20+

0
