38513 (624) - Toro 24" Power Shift Snow Thrower (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

24" Power Shift Snow Thrower

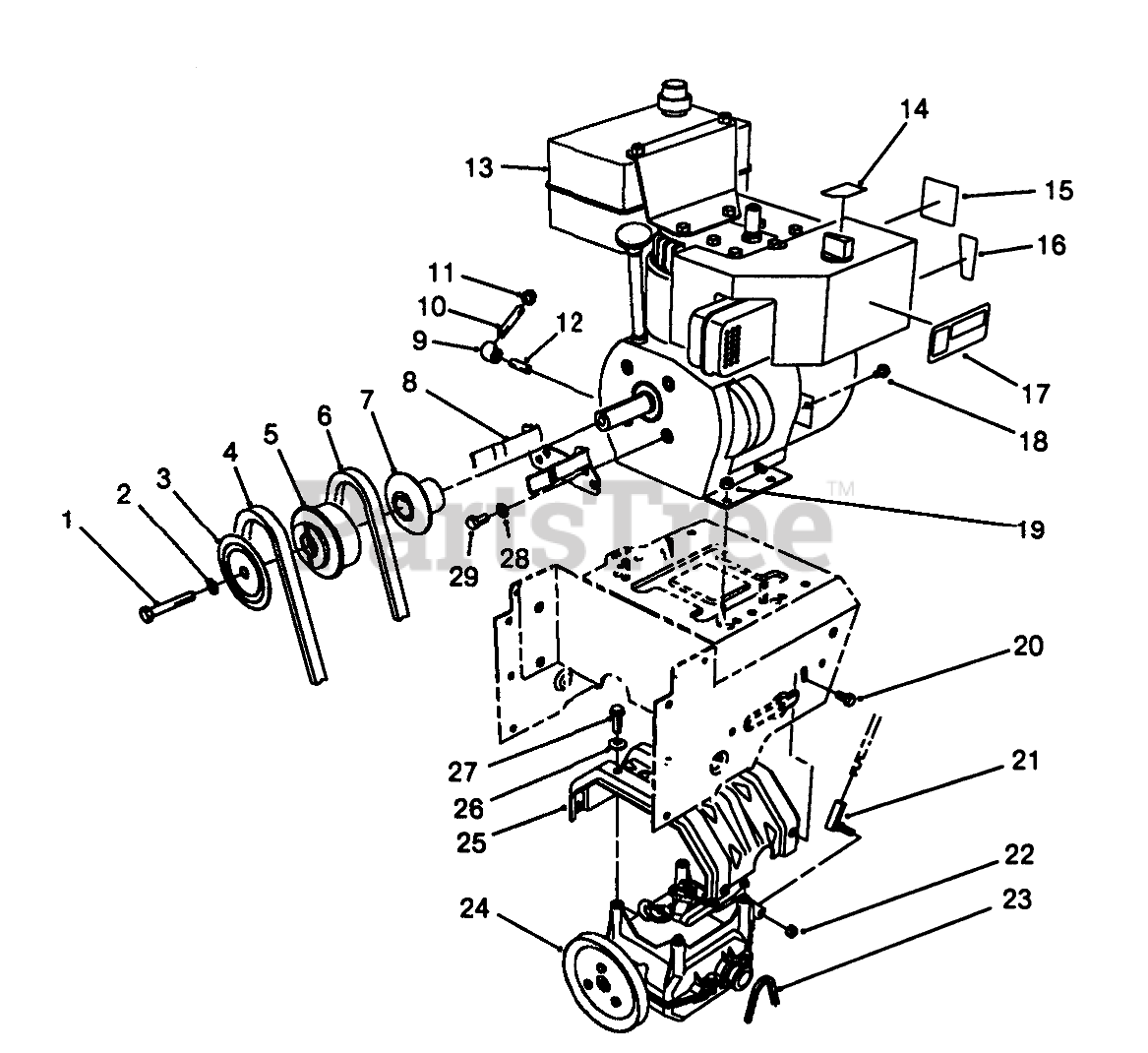

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 3211-9

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

2

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

3

Toro 63-3320

Sheave Half-Impeller

$

$

Not available

4

Toro 63-2961

V-BELT

$29.99

$

In Stock, only 4 left!

0

5

Toro 63-3310

CENTER ENGINE PULLEY

$80.99

$

Usually ships in 3-6 days

0

6

Toro 63-2951

V-BELT-TRACTION

$25.99

$

In Stock, only 4 left!

0

7

Toro 63-3300

SHEAVE-TRACTION HALF

$

$

Not available

8

Toro 63-2970

Guide-Belt
(Superseded to 68-7510-03)

$

$

Not available

9

Toro 2813-13

45 DEG STREET ELBOW

$

$

Not available

10

Toro 289-11

U-Bolt

$

$

Currently unavailable

11

Toro 288-2

CAP-PIPE

$19.99

$

In Stock, only 1 left!

0

12

Toro 289-43

.25-18 X 1 NIPPLE

$

$

Not available

13

Engine-Tecumseh Model No. H60 Type No. 75504V

$

$

Not available

14

Toro 63-2420

DECAL-CHOKE

$

$

Not available

Toro 63-2430

DECAL-CHOKE, INT'L

$

$

Not available

15

Toro 62-5760

DECAL-PRIMER
(Superseded to 94-2572)

$

$

Not available

16

Toro 63-2450

THROTTLE DECAL, INT'L

$6.49

$

Usually ships in 3-6 days

0

17

Toro 62-7290

Decal-Hot
(Superseded to 66-6840)

$80.99

$

Usually ships in 3-6 days

0

Toro 63-2310

DECAL-HOT SURFACE, WARNING
(Superseded to 94-2576)

$

$

Not available

18

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

21

Toro 63-2640

JOINT-BALL

$

$

Not available

22

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

23

Toro 63-2940

CHAIN

$

$

Not available

24

Toro 62-0190

Transmission Assembly
(Superseded to 66-8030)

$2189.99

$

Usually ships in 3-6 days

0

25

Toro 63-2990

Frame-Transmission
(Superseded to 63-2990-03)

$

$

Not available

26

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

27

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

28

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Toro 3210-1

SCREW-HH

$7.99

$

In Stock, only 2 left!

0
