38510 (624) - Toro 24" Power Shift Snow Thrower (SN: 010000001 - 019999999) (1991) REWIND STARTER TECUMSEH NO. 590604 Parts Diagram

24" Power Shift Snow Thrower

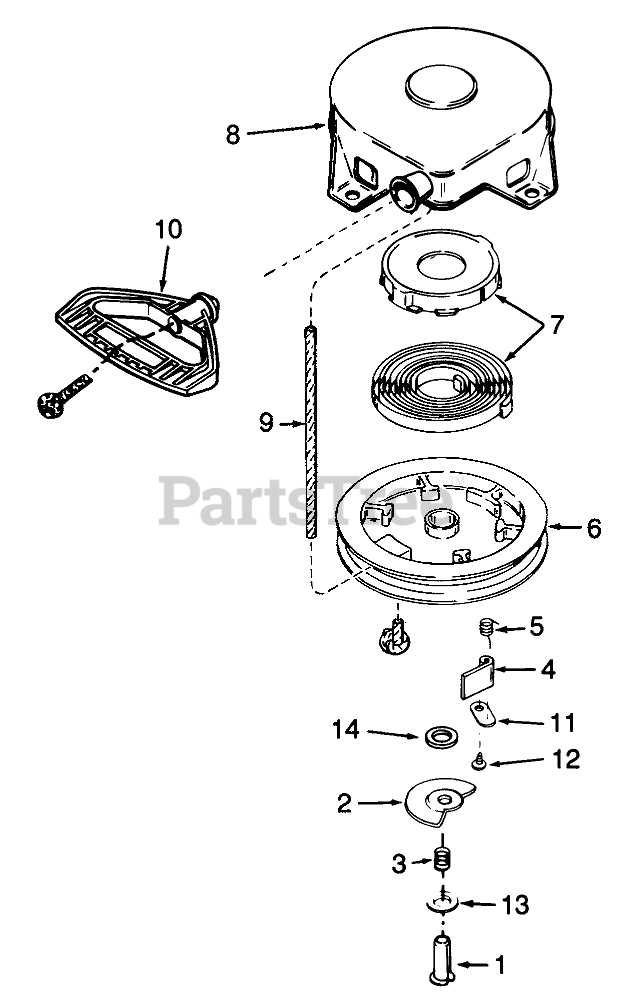

REWIND STARTER TECUMSEH NO. 590604 Parts Diagram

  • Title
1

Tecumseh 590599A

Pin-Spring (Incl. Ref. #14)

$5.49

$

In Stock, only 2 left!

0

2

$3.99

$

Usually ships in 3-12 days

0

3

Tecumseh 590598

Brake Spring

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 590148

Dog-Starter

$3.49

$

In Stock, Qty 7

0

5

Tecumseh 590475

Spring-Dog

$3.99

$

Usually ships in 3-12 days

0

6

$

$

Not available

7

Tecumseh 590414

Spring & Keeper Assy

$14.99

$

Usually ships in 3-12 days

0

8

Tecumseh 590605

Housing-Starter
(Superseded to 590604)

$

$

Not available

9

Toro 590451a

Rope-Starter

$

$

Currently unavailable

10

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

Usually ships in 3-12 days

0

11

Tecumseh 590476

Retainer-Dog

$5.99

$

Usually ships in 3-12 days

0

12

$1.99

$

In Stock, only 3 left!

0

13

$1.99

$

In Stock, only 4 left!

0

14

$1.99

$

In Stock, only 4 left!

0
