38510 (624) - Toro 24" Power Shift Snow Thrower (SN: 009000001 - 009999999) (1989) CARBURETOR TECUMSEH NO. 632379 Parts Diagram

24" Power Shift Snow Thrower

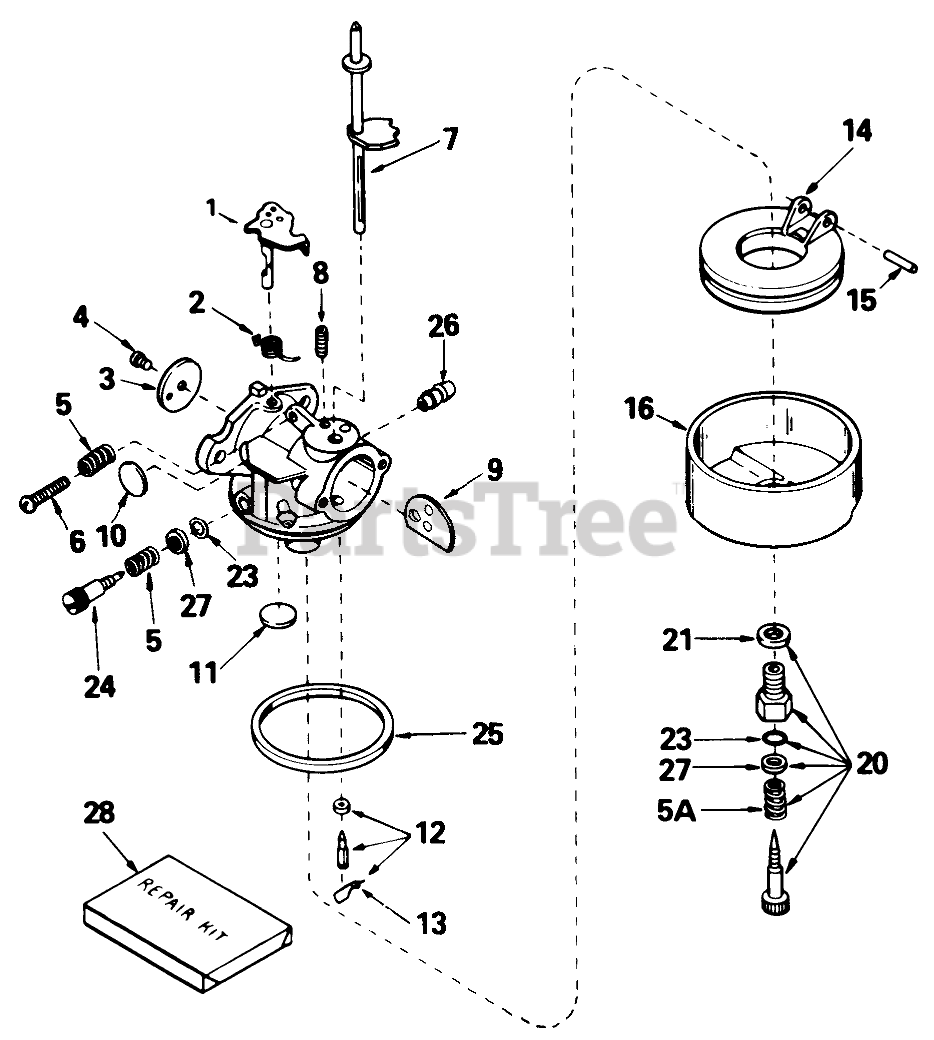

CARBURETOR TECUMSEH NO. 632379 Parts Diagram

  • Title
1

Tecumseh 31834

Shaft/Lever-Throttle

$9.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631767

Spring-Return, Throttle

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 631036

Shutter-Throttle

$1.99

$

In Stock, only 1 left!

0

4

Tecumseh 650506

Screw-Shutter

$1.49

$

In Stock, Qty 17

0

5

Tecumseh 630766

Spring-Tension

$1.99

$

In Stock, only 2 left!

0

5A

$1.99

$

In Stock, Qty 8

0

6

Tecumseh 650417

Screw-Throttle Crack Screw / Idle Speed
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

7

Tecumseh 632373

Shaft-Choke

$3.99

$

In Stock, Qty 7

0

8

Tecumseh 630735

Spring-Positioning, Choke

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 632372

Shutter-Choke
(Superseded to 640111)

$1.99

$

Usually ships in 3-12 days

0

10

Tecumseh 630748

Plug-Welch, Idle Mixture Well

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 631027

Plug-Welch, Atmospheric Vent

$1.99

$

In Stock, only 3 left!

0

12

Tecumseh 631021

Inlet Needle, Seat & Clip Assy. (Incl. Ref. #13)
(Superseded to 631021B)

$6.99

$

In Stock, Qty 13

0

13

Tecumseh 631022

Clip-Spring

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, only 3 left!

0

15

Tecumseh 631024

Shaft-Float

$1.99

$

In Stock, Qty 11

0

16

Tecumseh 631867

Bowl-Float (no drain)

$3.49

$

In Stock, Qty 14

0

20

Tecumseh 31839

Adjustment Screw Assy. (Incl. Ref. #5A, 21, 23 & 27)

$15.99

$

Usually ships in 3-12 days

0

21

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

$2.49

$

In Stock, only 1 left!

0

23

Tecumseh 630740

"O"Ring

$2.49

$

Usually ships in 3-12 days

0

24

Tecumseh 631838

Screw-Idle

$3.99

$

In Stock, only 2 left!

0

25

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

$2.49

$

In Stock, only 1 left!

0

26

Tecumseh 632164

Fitting-Fuel

$3.99

$

In Stock, only 1 left!

0

27

$1.99

$

In Stock, Qty 6

0

28

Tecumseh 31840

Kit-Repair

$20.99

$

In Stock, only 4 left!

0
