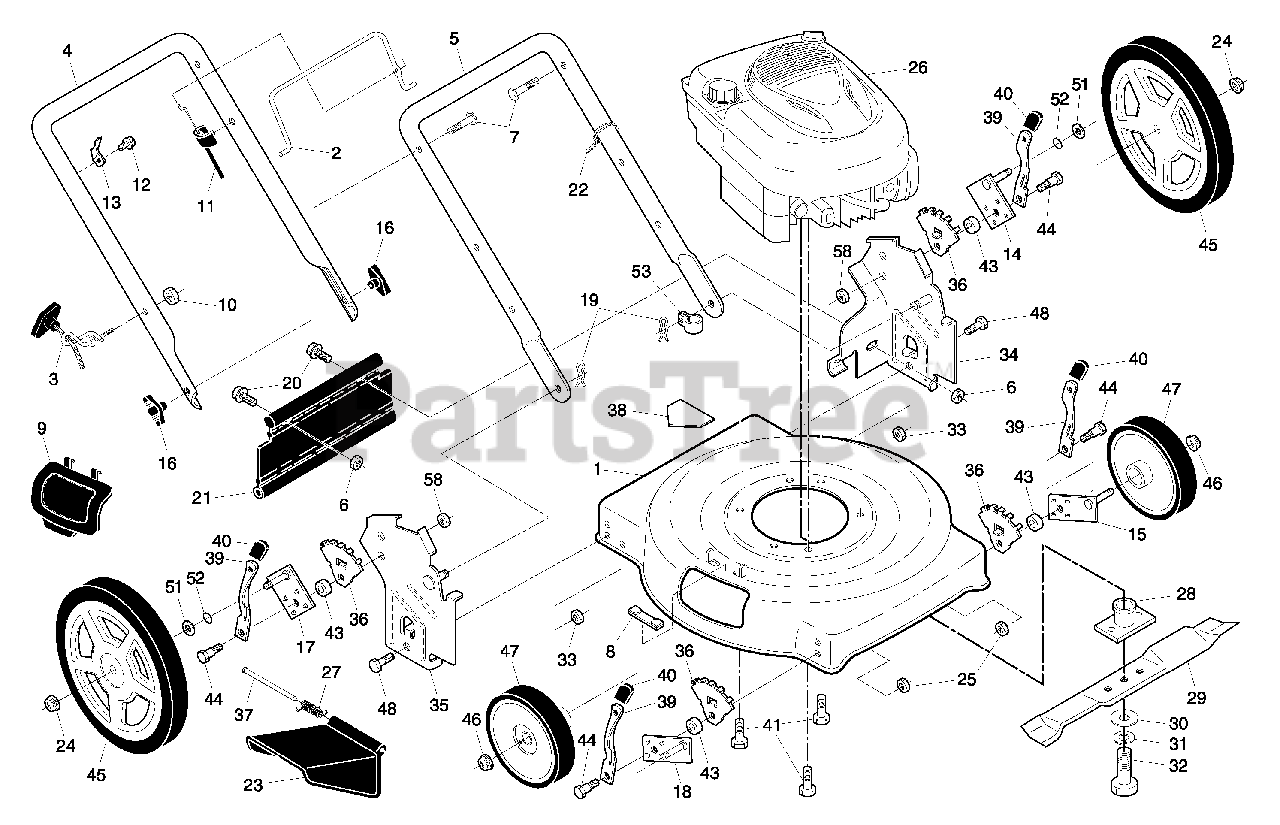

38509 - Electrolux/AYP Walk-Behind Mower (2006) Handle & Deck Assembly Parts Diagram

Walk-Behind Mower

Handle & Deck Assembly Parts Diagram

  • Title

1

Electrolux/AYP 161657

Lawn Mower Housing

Note: (Includes Key Number 38)

$124.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 194177X428

Control Bar
(Superseded to 532194177)

$

$

Not available

3

Electrolux/AYP 194788

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

4

Electrolux/AYP 194179X479

Upper Handle
(Superseded to 532194179)

$27.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 169708X479

Lower Handle
(Superseded to 532174291)

$

$

Not available

6

Electrolux/AYP 73800400

Locknut, Hex 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 191574

Handle Bolt 5/16-18
(Superseded to 532191574)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 161622

Clip, Closeout
(Superseded to 532161622)

$14.99

$

In Stock, only 2 left!

0

9

Electrolux/AYP 160830

Mulcher Plate
(Superseded to 532160830)

$

$

Not available

10

Electrolux/AYP 132004

Nut, Hex 1/4-20

$

$

Not available

11

Electrolux/AYP 158152

Engine Zone Control Cable
(Superseded to 582991501)

$14.99

$

In Stock, Qty 12

0

12

Electrolux/AYP 750634

Hex Washer Head Screw #10-24 x 1/2
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

13

Electrolux/AYP 86899X004

Up-Stop Bracket
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 180409X004

Axle Arm Assembly, Rear, LH
(Superseded to 532180409)

$

$

Not available

15

Electrolux/AYP 186577X004

Axle Arm Assembly, Front, LH
(Superseded to 532186577)

$

$

Not available

16

Electrolux/AYP 189713X428

Knob, Handle
(Superseded to 532185577)

$9.49

$

In Stock, Qty 18

0

17

Electrolux/AYP 180410X004

Axle Arm Assembly, Rear, RH
(Superseded to 532180410)

$

$

Not available

18

Electrolux/AYP 186578X004

Axle Arm Assembly, Front, RH
(Superseded to 532186578)

$

$

Not available

19

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 74760412

Screw, Hex Cap Head 1/4-20
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

21

Electrolux/AYP 189008

Rear Deflector
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 160831

Discharge Guard
(Superseded to 532160831)

$

$

Not available

24

Murray 145212

Nut, Hex, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 166785

Nut, Hex, Flangelock 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

26

Engine, Briggs & Stratton, Model Number 12L902

Note: (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

27

Electrolux/AYP 193436

Torsion Spring
(Superseded to 532408585)

$18.99

$

In Stock, only 2 left!

0

28

Electrolux/AYP 193707

Blade Adapter
(Superseded to 532418373)

$11.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 141114

22" Blade
(Superseded to 532141114)

$28.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

31

Electrolux/AYP 850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 851084

Screw, Hex Head, Grade 8, 3/8-24 x 1-3/8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 73800500

Nut, Hex, Nylock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 193083X479

Handle Bracket, LH
(Superseded to 532403508)

$15.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 193082X479

Handle Bracket, RH
(Superseded to 532403507)

$15.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 160835X007

Wheel Bracket Adjuster
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

37

Electrolux/AYP 160833

Hinge Rod
(Superseded to 532160833)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 404763

Danger Decal

$2.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 168360X004

Selector Spring
(Superseded to 532168360)

$

$

Not available

40

Electrolux/AYP 87877

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 183901

Spacer
(Superseded to 532183901)

$7.49

$

In Stock, only 1 left!

0

44

Electrolux/AYP 160828

Shoulder Bolt 5/16-18
(Superseded to 532160828)

$

$

Not available

45

Electrolux/AYP 193926X617

Wheel & Tire Assembly, Rear, 12"
(Superseded to 532436381)

$

$

Not available

46

Electrolux/AYP 83923

Nut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 193905X617

Wheel & Tire Assembly, Front, 8"
(Superseded to 532437177)

$15.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 74760514

Bolt, Hex Head 5/16-18
(Superseded to 874760514)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 88348

Washer, Flat 3/8
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

52

Electrolux/AYP 197480

O-Ring
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

58

Electrolux/AYP 751153

Nut, Hex
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

Electrolux/AYP 404764

Warning Decal
(Superseded to 532404764)

Note: (not shown)

$8.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 193732

Operator's Manual, English

$2.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 193735

Operator's Manual, Spanish
(Superseded to 917193735)

$5.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 405297

Repair Parts Manual

$

$

Not available
