38508 - Electrolux/AYP Walk-Behind Mower (2006) General Assembly Parts Diagram

Walk-Behind Mower

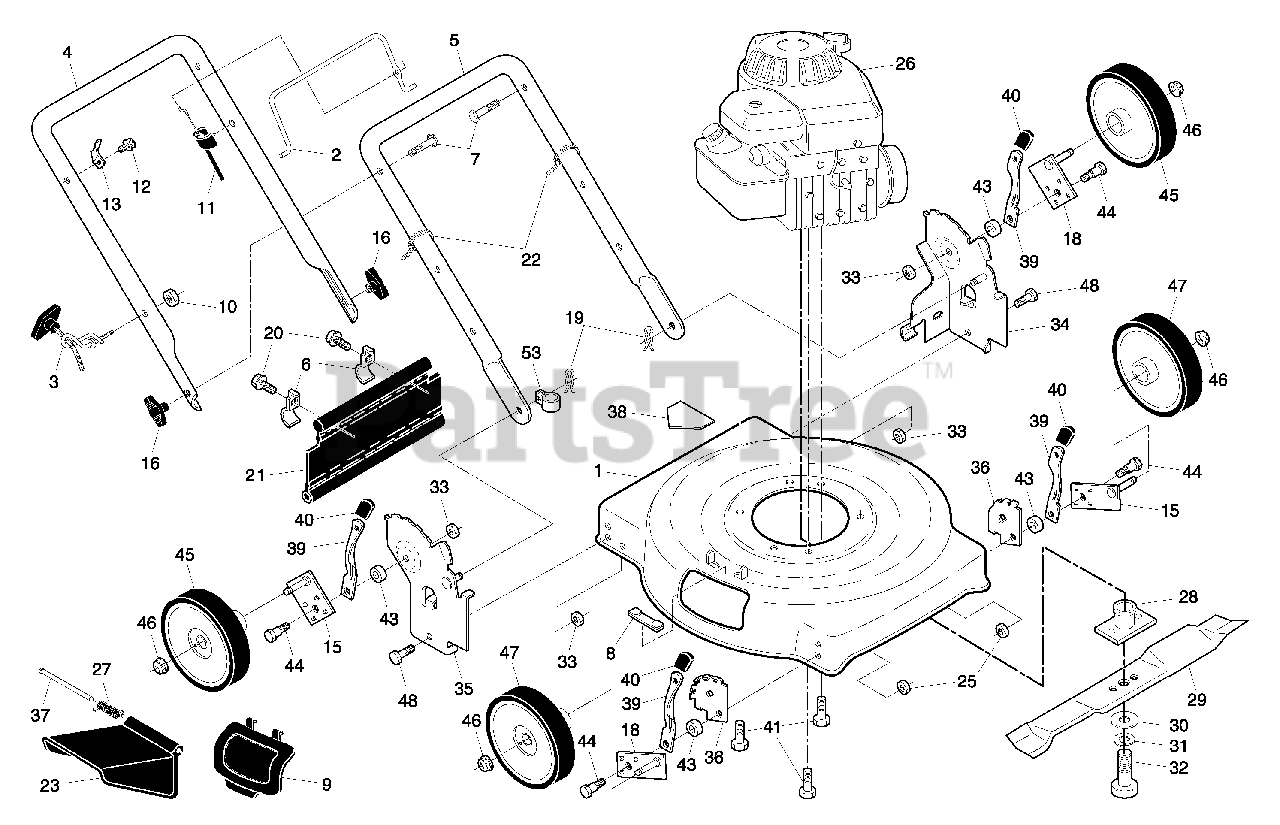

General Assembly Parts Diagram

  • Title

1

Electrolux/AYP 161657

Lawn Mower Housing Assembly

Note: (Includes Key Number 38)

$124.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 194177X428

Control Bar
(Superseded to 532194177)

$

$

Not available

3

Electrolux/AYP 194788

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

4

Electrolux/AYP 194179X479

Upper Handle
(Superseded to 532194179)

$27.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 169708X479

Lower Handle
(Superseded to 532174291)

$

$

Not available

6

Electrolux/AYP 192301X004

Hinge Bracket
(Superseded to 532192301)

$

$

Not available

7

Electrolux/AYP 191574

Handle Bolt 5/16-18
(Superseded to 532191574)

$6.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 161622

Clip, Closeout
(Superseded to 532161622)

$14.99

$

In Stock, only 2 left!

0

9

Electrolux/AYP 160830

Mulcher Plate
(Superseded to 532160830)

$

$

Not available

10

Electrolux/AYP 132004

Locknut, Hex 1/4-20

$

$

Not available

11

Electrolux/AYP 158152

Engine Zone Control Cable
(Superseded to 582991501)

$14.99

$

In Stock, Qty 12

0

12

Electrolux/AYP 750634

Screw, Hex Head, Threaded, Rolled #10-24 x1/2
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

13

Electrolux/AYP 86899X004

Up-Stop Bracket
(Superseded to 532430034)

$6.99

$

In Stock, only 3 left!

0

15

Electrolux/AYP 186577X004

Axle Arm Assembly (Rear, RH / Front, LH)
(Superseded to 532186577)

$

$

Not available

16

Electrolux/AYP 189713X428

Handle Knob
(Superseded to 532185577)

$9.49

$

In Stock, Qty 13

0

18

Electrolux/AYP 186578X004

Axle Arm Assembly (Rear, LH / Front, RH)
(Superseded to 532186578)

$

$

Not available

19

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 750097

Screw
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

21

Electrolux/AYP 188987

Rear Deflector
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 160831

Discharge Guard
(Superseded to 532160831)

$

$

Not available

25

Electrolux/AYP 166785

Nut, Hex
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

26

Engine, Briggs & Stratton, Model Number 10H902

Note: (Order Parts from Engine Manufacturer)

$

$

Not available

27

Electrolux/AYP 193436

Torsion Spring
(Superseded to 532408585)

$18.99

$

In Stock, only 2 left!

0

28

Electrolux/AYP 193825

Blade Adapter
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

29

Electrolux/AYP 141114

22" Blade
(Superseded to 532141114)

$28.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 851074

Hardened Washer
(Superseded to 532851074)

$4.99

$

In Stock, only 2 left!

0

31

Electrolux/AYP 850263

Helical Lockwasher 3/8
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 851084

Hex Head Screw 3/8-24 x 1/4 Grade 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 73930500

Nut, Hex, Centerlock 5/16-18
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 400781X479

Support, Wheel Bracket, LH
(Superseded to 532403456)

$

$

Not available

35

Electrolux/AYP 400782X479

Support, Wheel Bracket, RH
(Superseded to 532403457)

$14.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 160835X007

Adjuster, Wheel Bracket
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

37

Electrolux/AYP 160833

Hinge Rod
(Superseded to 532160833)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 404763

Danger Decal

$2.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 168360X004

Selector Spring
(Superseded to 532168360)

$

$

Not available

40

Electrolux/AYP 87877

Selector Knob
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

43

Electrolux/AYP 183901

Washer
(Superseded to 532183901)

$7.49

$

In Stock, only 1 left!

0

44

Electrolux/AYP 160828

Shoulder Bolt
(Superseded to 532160828)

$

$

Not available

45

Electrolux/AYP 193851X617

Wheel & Tire Assembly, Rear, 8"
(Superseded to 583716601)

$15.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 83923

Locknut, Hex 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 193855X617

Wheel & Tire Assembly, Front, 7"
(Superseded to 583716801)

$11.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 17600406

Screw, Hex Head, Serrated, Type TT 1/4 x 20
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

Electrolux/AYP 404764

Warning Decal
(Superseded to 532404764)

Note: (not shown)

$8.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 193732

Operator's Manual, English

$

$

Not available

Electrolux/AYP 193735

Operator's manual, Spanish
(Superseded to 917193735)

$5.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 405298

Repair Parts Manual

$2.49

$

Usually ships in 3-10 days

0
