38505 (624) - Toro 24" Power Shift Snow Thrower (SN: 008000001 - 008999999) (1988) IGNITION ASSEMBLY Parts Diagram

24" Power Shift Snow Thrower

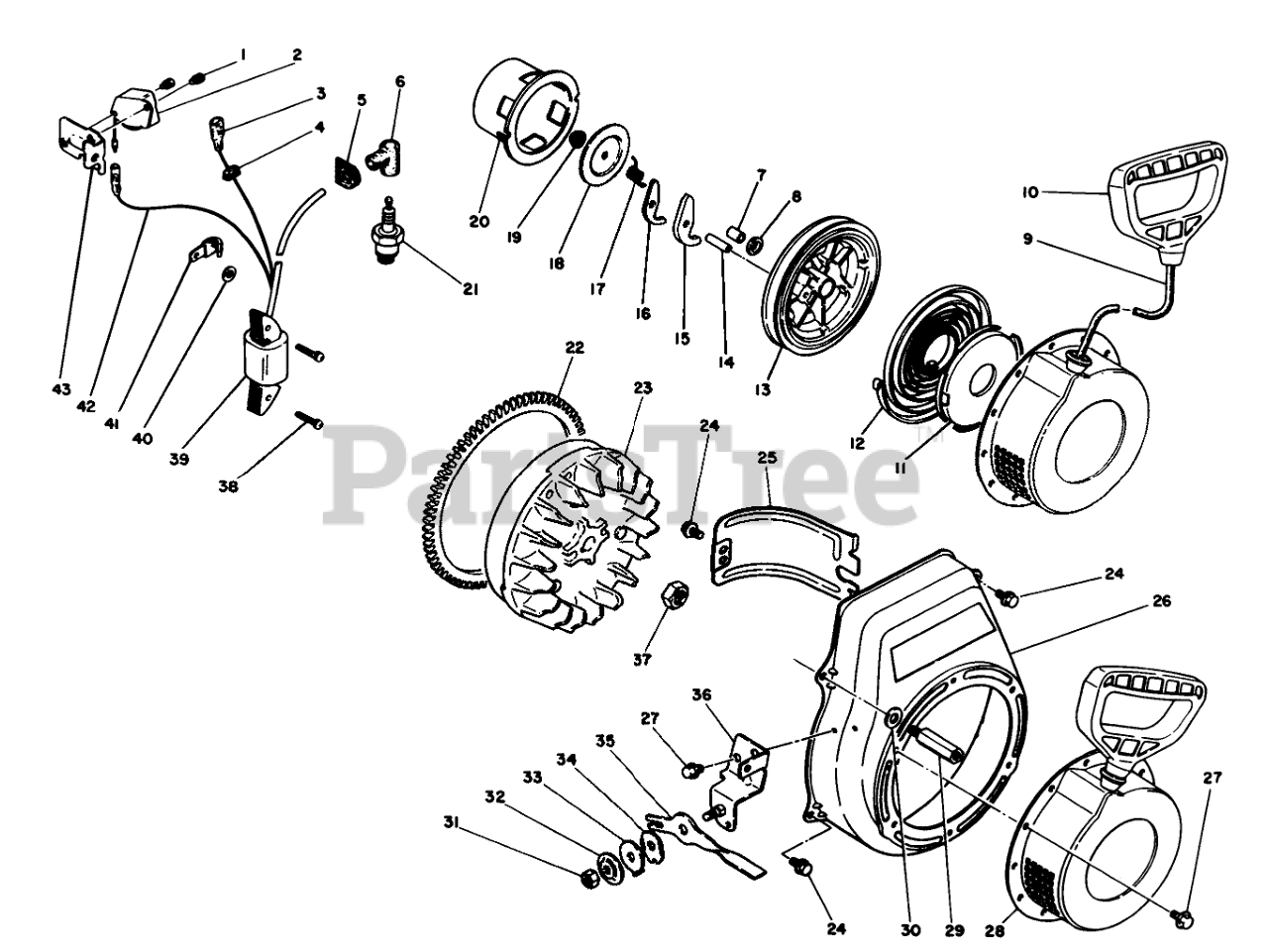

IGNITION ASSEMBLY Parts Diagram

  • Title
1

Toro 65-0680

Screw & Washer
(Superseded to 54-4610)

$

$

Not available

2

Toro 65-0690

Unit-Ignition

$

$

Not available

3

Toro 65-0650

Wire-Leas

$

$

Not available

4

Toro 65-1810

Grommet

$

$

Not available

5

Toro 65-0630

GROMMET

$

$

Not available

6

$

$

Not available

7

Toro 65-1540

SHAFT

$5.99

$

Usually ships in 3-6 days

0

8

Toro 65-1550

WASHER

$

$

Not available

9

$

$

Not available

10

$

$

Not available

11

$

$

Not available

12

Toro 65-1640

SPRING

$

$

Not available

13

$

$

Not available

14

$

$

Not available

15

Toro 65-1610

RATCHET

$

$

Not available

16

Toro 65-1600

RATCHET

$

$

Not available

17

Toro 65-1590

SPRING

$

$

Not available

18

Toro 65-1580

FRICTION PLATE

$

$

Not available

19

$

$

Not available

20

Toro 65-1560

STARTER PULLEY

$

$

Not available

21

Toro 65-0640

SPARK PLUG

$

$

Not available

22

Toro 65-1740

RING GEAR

$

$

Not available

23

Toro 65-0720

FLYWHEEL

$

$

Not available

24

$

$

Not available

25

Toro 65-0750

CYLINDER BAFFLE

$

$

Not available

26

Toro 65-0760

FAN COVER

$

$

Not available

27

$

$

Not available

28

Toro 65-1530

Recoil Starter Assembly (Incl. Ref. #7-20)

$

$

Not available

29

$

$

Not available

30

Toro 65-1870

Washer
(Superseded to 65-0540)

$

$

Not available

31

$

$

Not available

32

Toro 65-0820

WASHER

$

$

Not available

33

Toro 65-0810

WASHER

$

$

Not available

34

Toro 65-0800

LEAF SPRING

$

$

Not available

35

Toro 65-0790

LEVER

$

$

Not available

36

Toro 65-0780

BRACKET

$

$

Not available

37

$

$

Not available

38

Toro 65-0710

SCREW & WASHER

$

$

Not available

39

Toro 65-0700

Coil-lgnition (Incl. Ref. #3, 4 & 42)

$

$

Not available

40

$

$

Not available

41

Toro 65-0740

CLAMP

$

$

Not available

42

Toro 65-0660

Wire-Lead

$

$

Not available

43

Toro 65-1830

BRACKET

$

$

Not available

Toro 65-0610

Magneto Assy. (Incl. Ref. #1-4, 23, 38, 39 & 42)

Note: Not illustrated

$

$

Not available
