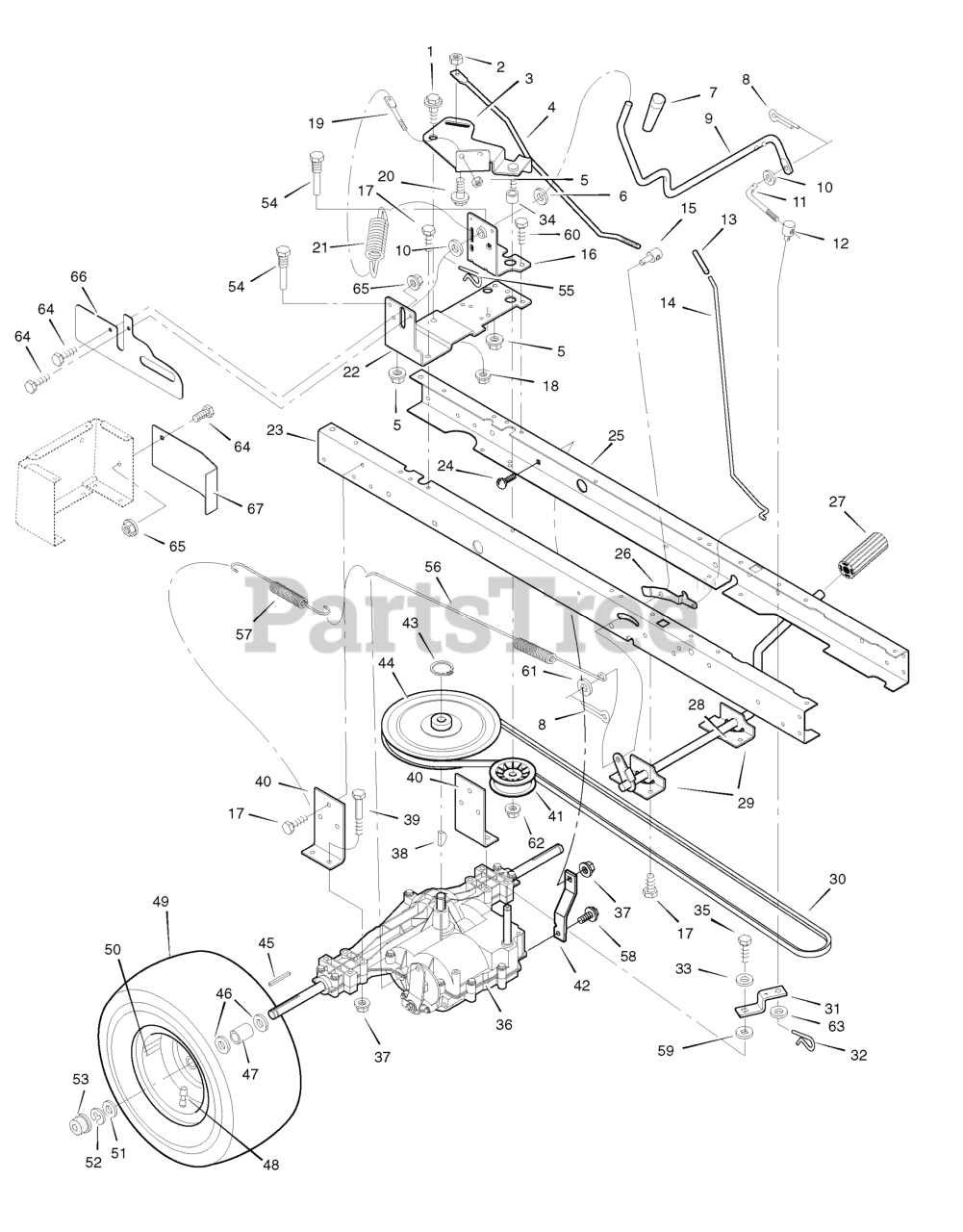

385048x151 (7800319) - Murray 38" Lawn Tractor (2008) Motion Drive Parts Diagram

38" Lawn Tractor

Motion Drive Parts Diagram

  • Title
1

Murray 009X39MA

BOLT, Shoulder

$6.49

$

In Stock, Qty 5

0

2

Murray 015X89MA

NUT, Hex

$4.49

$

Usually ships in 2-12 days

0

3

Murray 7400241MA

ARM, Idler

$32.99

$

Usually ships in 2-12 days

0

4

Murray 094041ZMA

ROD, Clutch

$33.99

$

Usually ships in 2-12 days

0

$3.99

$

In Stock, Qty 7

0

6

Murray 17X102MA

WASHER
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

$5.99

$

Usually ships in 2-12 days

0

8

Murray 030X20MA

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Murray 094043ZMA

LEVER, Shift

$47.99

$

In Stock, only 1 left!

0

10

Murray 017X47MA

WASHER
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

11

Murray 094044ZMA

LINK, Shift

$6.99

$

Usually ships in 2-12 days

0

12

Murray 021920ZMA

NUT, Adjuster

$17.99

$

Usually ships in 2-12 days

0

$5.99

$

Usually ships in 2-12 days

0

14

Murray 1001245ZMA

ROD, Parking Brake

$33.99

$

Usually ships in 2-12 days

0

15

Murray 094815ZMA

NUT, Adjuster

$21.99

$

Usually ships in 2-12 days

0

16

Murray 1001303ZMA

BRACKET, Shift Pivot

$20.99

$

Usually ships in 2-12 days

0

17

$

$

Not available

18

Murray 015X84MA

NUT
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 094042ZMA

MOUNT, Stud Spring

$4.49

$

Usually ships in 2-12 days

0

20

Murray 009X54MA

BOLT, Shoulder

$5.49

$

In Stock, only 1 left!

0

21

Murray 165X116MA

SPRING, Extension

$8.49

$

Usually ships in 2-12 days

0

22

Murray 7300824ZMA

BRACKET, Right Shifter

$47.99

$

Usually ships in 2-12 days

0

23

Murray 7300870ZMA

FRAME, Right

$43.99

$

In Stock, only 2 left!

0

24

Murray 002X53MA

BOLT, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

25

Murray 7300869ZMA

FRAME, Left

$46.99

$

In Stock, only 2 left!

0

26

Murray 094045ZMA

LATCH, Parking Brake

$45.99

$

Usually ships in 2-12 days

0

27

Murray 021544MA

PEDAL
(Superseded to 1727261SM)

$9.99

$

In Stock, only 4 left!

0

28

Murray 7400256ZMA

LEVER, Brake/Clutch

$72.99

$

Usually ships in 2-12 days

0

29

Murray 1001117E701MA

BRACKET, Pedal

$24.99

$

Usually ships in 2-12 days

0

30

Murray 7101749MA

BELT, Motion Drive
(Superseded to 037X87MA)

$28.99

$

In Stock, Qty 16

0

31

Murray 094031ZMA

YOKE, Shift

$15.99

$

Usually ships in 2-12 days

0

32

Murray 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

33

$3.99

$

Usually ships in 2-12 days

0

34

$

$

Not available

35

$3.99

$

In Stock, only 1 left!

0

36

Transaxle **

$

$

Not available

37

Murray 015X88MA

NUT
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

38

Murray 020697MA

KEY, Woodruff

$3.99

$

Usually ships in 2-12 days

0

39

Murray 01X155MA

BOLT
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

40

Murray 7300769ZMA

BRACKET, Transaxle

$17.99

$

Usually ships in 2-12 days

0

41

$19.99

$

In Stock, Qty 13

0

42

Murray 7300845ZMA

BRACKET, Torque Strap, LH

$13.99

$

Usually ships in 2-12 days

0

43

Murray 0011X7MA

RING RETAINER

$3.99

$

In Stock, only 4 left!

0

44

Murray 095094MA

PULLEY Drive

$55.99

$

In Stock, only 1 left!

0

45

Murray 021553MA

KEY, Square

$4.99

$

In Stock, only 2 left!

0

46

$4.99

$

In Stock, Qty 20+

0

47

Murray 1401103MA

SPACER, Transaxle

$10.99

$

Usually ships in 2-12 days

0

48

Murray 024373MA

STEM, Valve

$

$

Not available

49

$

$

Not available

--

Murray 407049MA

TUBE

Note: (Not Illustrated)

$68.99

$

Usually ships in 2-12 days

0

50

Murray 092288601MA

WHEEL & TIRE ASSEMBLY

$

$

Not available

51

$4.99

$

In Stock, Qty 5

0

52

$5.49

$

In Stock, Qty 17

0

53

Murray 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

54

Murray 093349MA

GUIDE, Belt

$4.49

$

Usually ships in 2-12 days

0

55

Murray 0031X4MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

56

Murray 165X115MA

SPRING, Extension

$21.99

$

Usually ships in 2-12 days

0

57

Murray 165X92MA

SPRING, Extension

$5.49

$

In Stock, only 2 left!

0

58

$6.99

$

In Stock, Qty 5

0

59

$3.99

$

Usually ships in 2-12 days

0

60

$4.99

$

In Stock, Qty 20+

0

61

Murray 17X169MA

WASHER
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

62

Murray 015X98MA

NUT, Hex
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

63

$

$

Not available

64

Murray 01X121MA

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

65

Murray 015X82MA

NUT, Hex Flange, 1/4-20

$3.49

$

Usually ships in 2-12 days

0

66

Murray 1735564ZMA

GUARD PLATE, RH, GEAR DRIVE

$20.99

$

Usually ships in 2-12 days

0

67

Murray 1735563ZMA

GUARD PLATE, LH, GEAR DRIVE

$20.99

$

Usually ships in 2-12 days

0
