385047x51A - Murray 38" Lawn Tractor (2007) Chassis & Hood Parts Diagram

38" Lawn Tractor

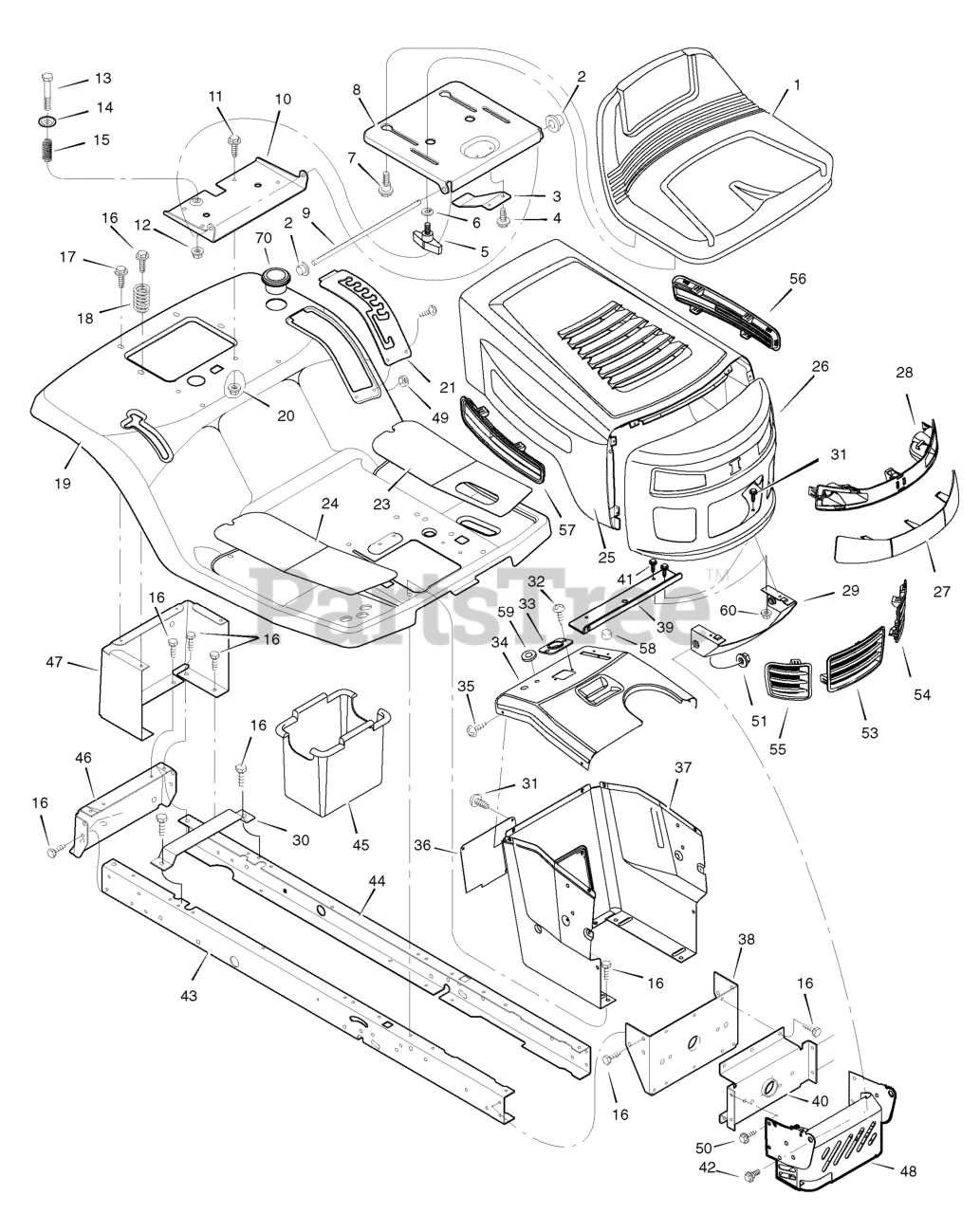

Chassis & Hood Parts Diagram

  • Title
1

Murray 690566MA

SEAT
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

CAP, Push 0n
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

3

$5.99

$

Usually ships in 2-12 days

0

4

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

BOLT, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

WASHER
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

BOLT, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E701MA

SUPPORT, Seat
(Superseded to 7300875BMYP)

$65.99

$

Usually ships in 2-12 days

0

9

Murray 094156ZMA

ROD, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 1001648E701MA

BRACKET, Pivot

$42.99

$

Usually ships in 2-12 days

0

11

Murray 001X45MA

BOLT
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

BOLT, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

$3.99

$

Usually ships in 2-12 days

0

15

$7.99

$

In Stock, only 2 left!

0

16

$

$

Not available

17

$4.99

$

In Stock, only 1 left!

0

18

$15.99

$

Usually ships in 2-12 days

0

19

$267.99

$

Usually ships in 2-12 days

0

$3.99

$

Usually ships in 2-12 days

0

21

Murray 094829E701MA

PLATE, Index

$50.99

$

Usually ships in 2-12 days

0

23

Murray 094999MA

MAT, Left

$18.99

$

In Stock, only 1 left!

0

24

Murray 094998MA

MAT, Right

$

$

Not available

25

$

$

Not available

26

Murray 1001798E245MA

GRILLE
(Superseded to 7300778RMA)

$148.99

$

In Stock, only 1 left!

0

$28.99

$

Usually ships in 2-12 days

0

28

Murray 1001805MA

HOUSING, Headlamp

$31.99

$

Usually ships in 2-12 days

0

29

Murray 1740530E701MA

BRACKET, Lower Pivot
(Superseded to 1740530ZMA)

$31.99

$

Usually ships in 2-12 days

0

30

Murray 690482E701MA

SUPPORT, Battery

$

$

Not available

31

$4.49

$

In Stock, Qty 13

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491MA

BEARING, Steering

$5.49

$

Usually ships in 2-12 days

0

34

Murray 1001584E701MA

DASH
(Superseded to 7300774ZMA)

$71.99

$

Usually ships in 2-12 days

0

35

$4.49

$

In Stock, only 2 left!

0

36

Murray 093007E701MA

PANEL, Access

$31.99

$

Usually ships in 2-12 days

0

37

Murray 095318E701MA

SUPPORT, Dash

$155.99

$

Usually ships in 2-12 days

0

38

Murray 1001270E701MA

BRACKET, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

39

Murray 1740529MA

BRACKET, Support

$

$

Currently unavailable

40

Murray 094007E701MA

AXLE, Hanger

$32.99

$

Usually ships in 2-12 days

0

41

$4.99

$

In Stock, only 1 left!

0

42

Murray 009X58MA

BOLT, Shoulder
(Superseded to 702315)

$6.99

$

Usually ships in 2-12 days

0

43

Murray 1001928E701MA

FRAME, Right

$104.99

$

Usually ships in 2-12 days

0

44

Murray 1001927E701MA

FRAME, Left
(Superseded to 1001269E701MA)

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424MA

CONTAINER, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E701MA

PLATE, Hitch

$

$

Not available

47

Murray 690434E701MA

PANEL, Rear

$85.99

$

Usually ships in 2-12 days

0

48

Murray 1740501E701MA

SHIELD, Heat
(Superseded to 1740501AYP)

$125.99

$

Usually ships in 2-12 days

0

$4.99

$

Usually ships in 2-12 days

0

50

$4.99

$

Usually ships in 2-12 days

0

$3.49

$

Usually ships in 2-12 days

0

53

Murray 1001802MA

INSERT, Center Grille

$8.49

$

In Stock, only 2 left!

0

54

Murray 1001803MA

INSERT, Left Grille

$7.99

$

Usually ships in 2-12 days

0

55

Murray 1001804MA

INSERT, Right Grille

$7.49

$

Usually ships in 2-12 days

0

56

Murray 1001800MA

INSERT, Left Hood

$15.99

$

Usually ships in 2-12 days

0

57

Murray 1001801MA

INSERT, Right Hood

$15.99

$

Usually ships in 2-12 days

0

58

$3.49

$

Usually ships in 2-12 days

0

59

Murray 1001755MA

GROMMET, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

$3.49

$

Usually ships in 2-12 days

0

70

Murray 1001542MA

HOLDER, Cup

$11.99

$

Usually ships in 2-12 days

0

--

Murray 1002050MA

PARTS BAG, Assembly

$20.99

$

Usually ships in 2-12 days

0

--

Murray 1740487

INSTRUCTION BOOK

$

$

Currently unavailable

--

Murray 1740488

MANUAL, Parts List

$

$

Currently unavailable
