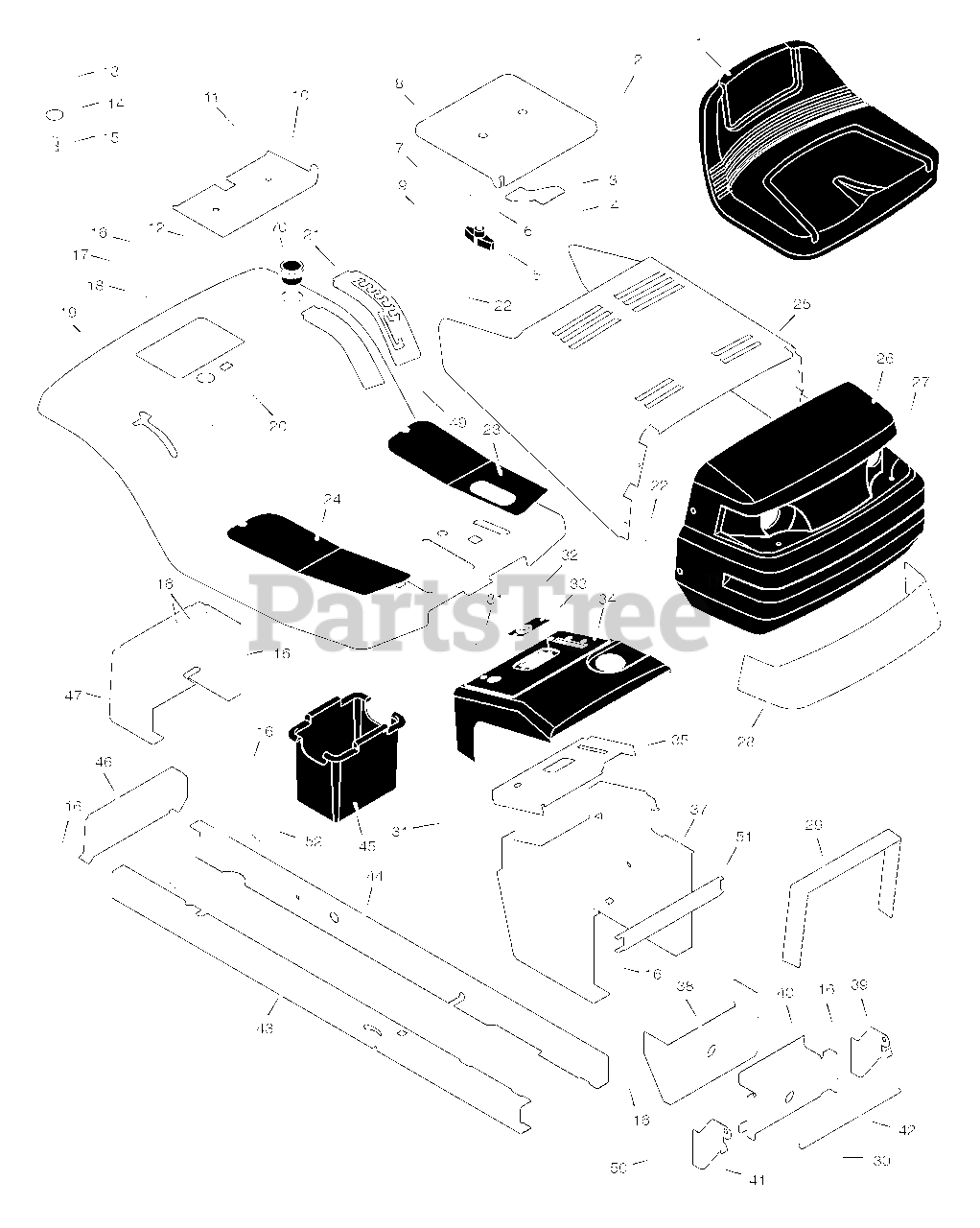

385004x52A - Murray 38" Lawn Tractor (2005) Chassis & Hood Parts Diagram

38" Lawn Tractor

Chassis & Hood Parts Diagram

  • Title

1

Murray 690566MA

Seat
(Superseded to 1687498YP)

$445.99

$

Usually ships in 2-12 days

0

2

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

3

Murray 094057MA

Spring

$5.99

$

Usually ships in 2-12 days

0

4

Murray 26X229MA

Screw

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054MA

Bolt, Wing

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E701MA

Support, Seat
(Superseded to 7300875BMYP)

$65.99

$

Usually ships in 2-12 days

0

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 1001648E700

Bracket, Pivot

$

$

Currently unavailable

11

Murray 001X45MA

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

12

Murray 015X89MA

Nut

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

14

Murray 094155 Z

Washer

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

Murray 26X249MA

Screw

$

$

Not available

17

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

18

Murray 164X30MA

Spring

$15.99

$

Usually ships in 2-12 days

0

19

Murray 1001987E013

Deck, Seat

$

$

Currently unavailable

20

Murray 015X88MA

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

21

Murray 094829E701

Plate, Index

$50.99

$

Usually ships in 2-12 days

0

23

Murray 094999MA

Mat, Left

$18.99

$

In Stock, only 1 left!

0

24

Murray 094998MA

Mat, Right

$

$

Not available

25

Murray 092333E013

Hood

$

$

Currently unavailable

26

Murray 094867E701

Grille Assembly

Note: (Includes Lens)

$

$

Currently unavailable

27

Murray 26X239MA

Screw

$4.49

$

Usually ships in 2-12 days

0

28

Murray 092344

Lens

$79.99

$

Usually ships in 2-12 days

0

29

Murray 092448

Brace, Grille

$

$

Not available

30

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

32

Murray 26X238MA

Screw

$3.99

$

Usually ships in 2-12 days

0

33

Murray 094214MA

Bearing, Steering

$4.99

$

Usually ships in 2-12 days

0

34

Murray 094218

Dash

$101.99

$

Usually ships in 2-12 days

0

35

Murray 094211E700

Plate, Dash

$26.99

$

Usually ships in 2-12 days

0

36

Murray 093007E701

Panel, Access

$31.99

$

Usually ships in 2-12 days

0

37

Murray 095323E700

Support, Dash

$142.99

$

Usually ships in 2-12 days

0

38

Murray 1001270E701

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

39

Murray 690544

Support, Left Grille

$9.49

$

Usually ships in 2-12 days

0

40

Murray 094007E701

Axle, Hanger

$32.99

$

Usually ships in 2-12 days

0

41

Murray 690543

Support, Right Grille

$434.99

$

Usually ships in 2-12 days

0

42

Murray 092332 Z

Rod, Pivot

$

$

Currently unavailable

43

Murray 1001928E701

Frame, Right

$104.99

$

Usually ships in 2-12 days

0

44

Murray 1001927E701

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424MA

Container, Battery

$45.99

$

In Stock, only 1 left!

0

46

Murray 1001002E701

Plate, Hitch

$

$

Not available

47

Murray 690434E701

Panel, Rear

$85.99

$

Usually ships in 2-12 days

0

49

Murray 015X81MA

Nut

$4.99

$

Usually ships in 2-12 days

0

50

Murray 26X277MA

Screw

$4.99

$

Usually ships in 2-12 days

0

51

Murray 094215E700

Channel

$

$

Currently unavailable

52

Murray 690482E701

Support, Battery

$

$

Not available

70

Murray 1001542MA

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0

--

Murray F-050737L

Instruction Book & Parts List

$

$

Currently unavailable
