385002x78C - Murray 38" Lawn Tractor (2006) Electrical System Parts Diagram

38" Lawn Tractor

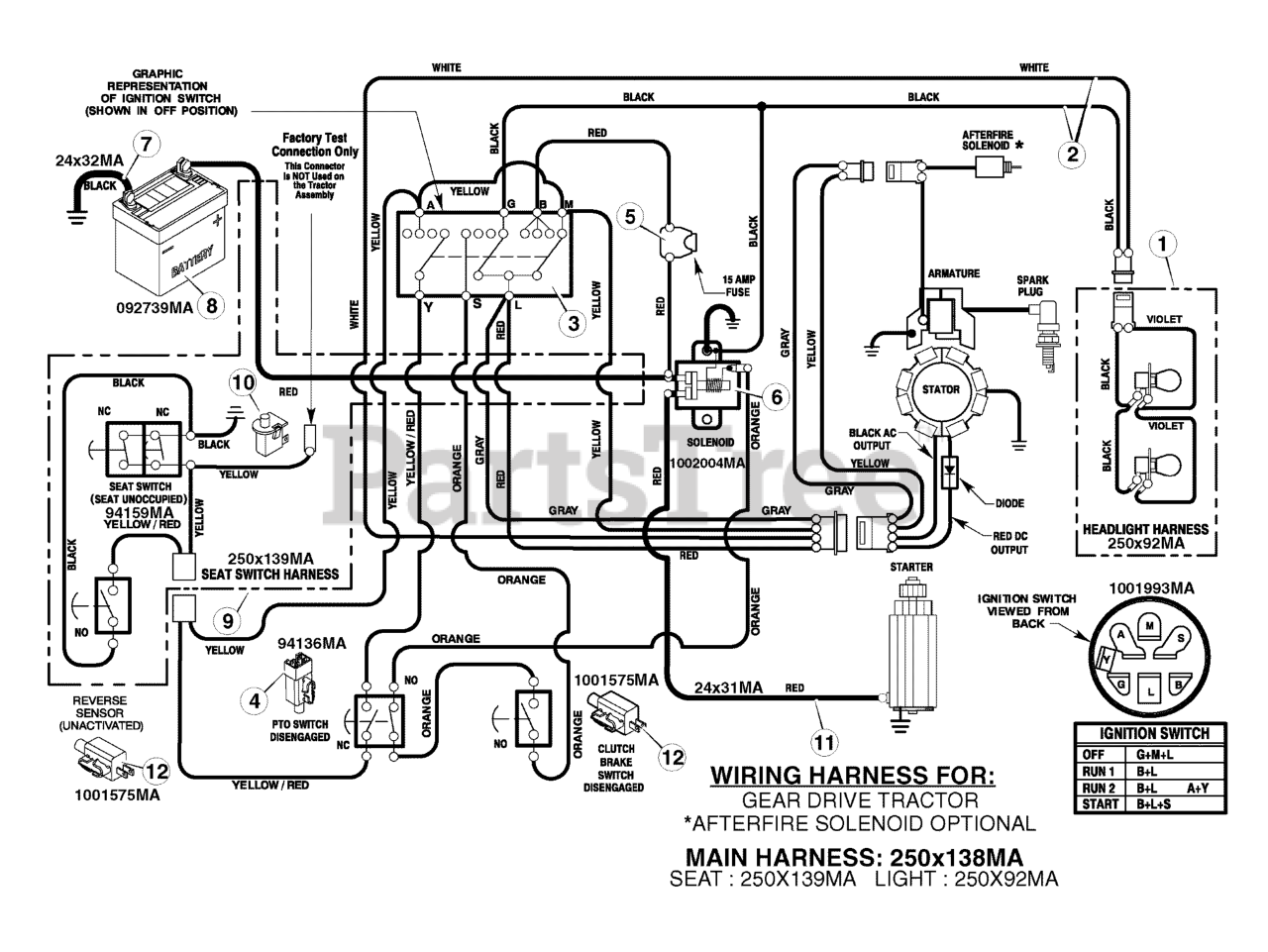

Electrical System Parts Diagram

  • Title

1

Murray 250X92MA

Harness, Light Wire

$16.99

$

Usually ships in 2-12 days

0

--

Murray 1001716MA

Socket, Light

$7.99

$

In Stock, Qty 5

0

--

Murray 090084MA

Bulb, Light
(Superseded to 1677371SM)

$30.99

$

In Stock, only 1 left!

0

2

Murray 250X138MA

Harness, Chassis Wire

$134.99

$

Usually ships in 2-12 days

0

3

Murray 1001993MA

Switch, Ignition

$45.99

$

In Stock, only 1 left!

0

--

Murray 020729MA

Key, Ignition

$5.49

$

In Stock, Qty 11

0

--

Murray 091489MA

Nut, Hex
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

--

Murray 091488MA

Cap, Ignition

$4.99

$

Usually ships in 2-12 days

0

4

Murray 1001575MA

Switch, Limit

$9.99

$

In Stock, only 1 left!

0

5

Murray 302031MA

Fuse

$6.49

$

Usually ships in 2-12 days

0

--

Murray 407078MA

Holder, Fuse

$20.99

$

Usually ships in 2-12 days

0

6

Murray 1002004MA

Solenoid
(Superseded to 7701100MA)

$27.99

$

In Stock, only 2 left!

0

--

Murray 26X229MA

Screw, Mounting

$4.49

$

In Stock, only 1 left!

0

--

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

7

Murray 024X32MA

Cable, Battery Ground

$8.49

$

Usually ships in 2-12 days

0

--

Murray 26X229MA

Screw, Ground Cable

$4.49

$

In Stock, only 1 left!

0

8

Murray 092739MA

Battery

$70.99

$

Usually ships in 2-12 days

0

--

Murray 002X82MA

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

--

Murray 014X79MA

Wingnut

$4.99

$

Usually ships in 2-12 days

0

--

Murray 690604MA

BOOT, Battery Terminal, Positive

$5.99

$

Usually ships in 2-12 days

0

9

Murray 250X139MA

Harness

$28.99

$

In Stock, only 1 left!

0

10

Murray 094159MA

Switch, Seat Sensor
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

11

Murray 024X31MA

Cable

$7.49

$

In Stock, only 1 left!

0

12

Murray 1001575MA

Switch, Limit

$9.99

$

In Stock, only 1 left!

0
