38500 (624) - Toro 24" Power Shift Snow Thrower (SN: 009000001 - 009999999) (1989) ENGINE NO. 68-8280 IGNITION ASSEMBLY Parts Diagram

24" Power Shift Snow Thrower

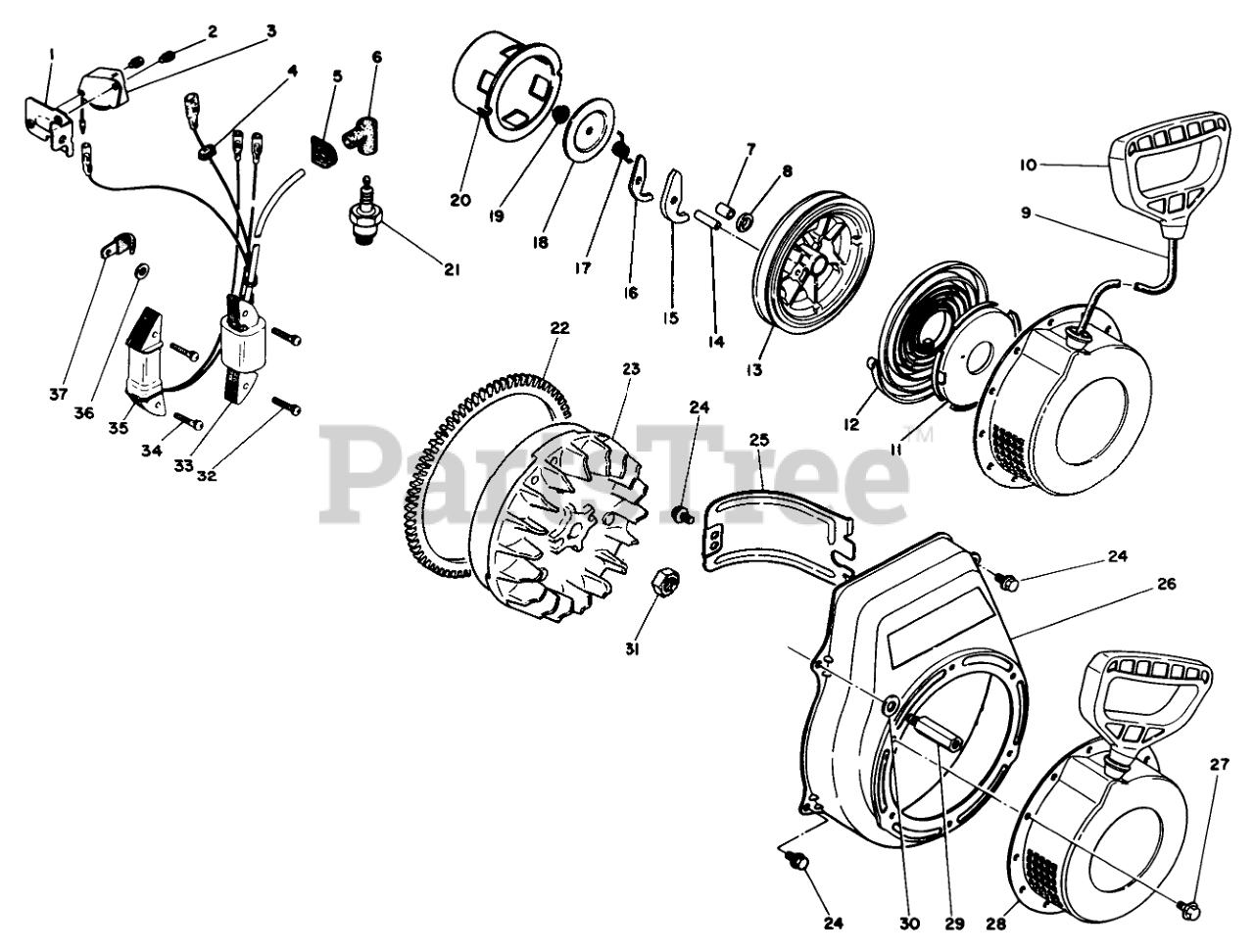

ENGINE NO. 68-8280 IGNITION ASSEMBLY Parts Diagram

  • Title

1

Toro 65-1830

BRACKET

$

$

Not available

2

Toro 54-4610

SCREW W/ WASHER

$

$

Not available

3

Toro 65-2370

Bracket-Unit

$

$

Not available

4

Grommet

$

$

Not available

5

Toro 65-0630

GROMMET

$

$

Not available

6

Toro 65-0620

CAP

$

$

Not available

7

Toro 65-1540

SHAFT

$4.99

$

Usually ships in 3-6 days

0

8

Toro 65-1550

WASHER

$

$

Not available

9

Toro 65-1660

ROPE

$

$

Not available

10

Toro 65-1670

KNOB

$

$

Not available

11

Toro 65-1650

CASE

$

$

Not available

12

Toro 65-1640

SPRING

$

$

Not available

13

Toro 65-1630

REEL

$

$

Not available

14

Toro 65-1620

PIN

$

$

Not available

15

Toro 65-1610

RATCHET

$

$

Not available

16

Toro 65-1600

RATCHET

$

$

Not available

17

Toro 65-1590

SPRING

$10.99

$

Usually ships in 3-6 days

0

18

Toro 65-1580

FRICTION PLATE

$

$

Not available

19

Toro 65-1570

NUT

$

$

Not available

20

Toro 65-1560

STARTER PULLEY

$

$

Not available

21

Toro 65-0640

SPARK PLUG

$

$

Not available

22

Toro 65-1740

RING GEAR

$

$

Not available

23

Toro 65-0720

FLYWHEEL

$

$

Not available

24

Toro 65-0050

BOLT

$

$

Not available

25

Toro 65-0750

CYLINDER BAFFLE

$

$

Not available

26

Toro 71-1780

COVER

$

$

Not available

27

Toro 65-0840

BOLT

$

$

Not available

28

Toro 65-1530

Recoil Starter Assembly (Incl. Ref. #7-20)

$

$

Not available

29

Toro 65-1880

BOLT

$

$

Not available

30

Toro 65-0540

WASHER

$

$

Not available

31

Toro 65-0600

NUT

$

$

Not available

32

Toro 65-0710

SCREW & WASHER

$

$

Not available

33

Toro 65-2380

Coil-Ignition (Incl. Ref. #4

$

$

Not available

34

Toro 54-5760

SCREW & WASHER

$

$

Not available

35

Toro 65-2400

LIGHTING COIL

$

$

Not available

36

Toro 65-0730

NUT

$

$

Not available

37

Toro 65-0740

CLAMP

$

$

Not available
