385 XP - Husqvarna Chainsaw (SN: 20034000001 - 20051000000) CLUTCH & OIL PUMP 2 Parts Diagram

Chainsaw

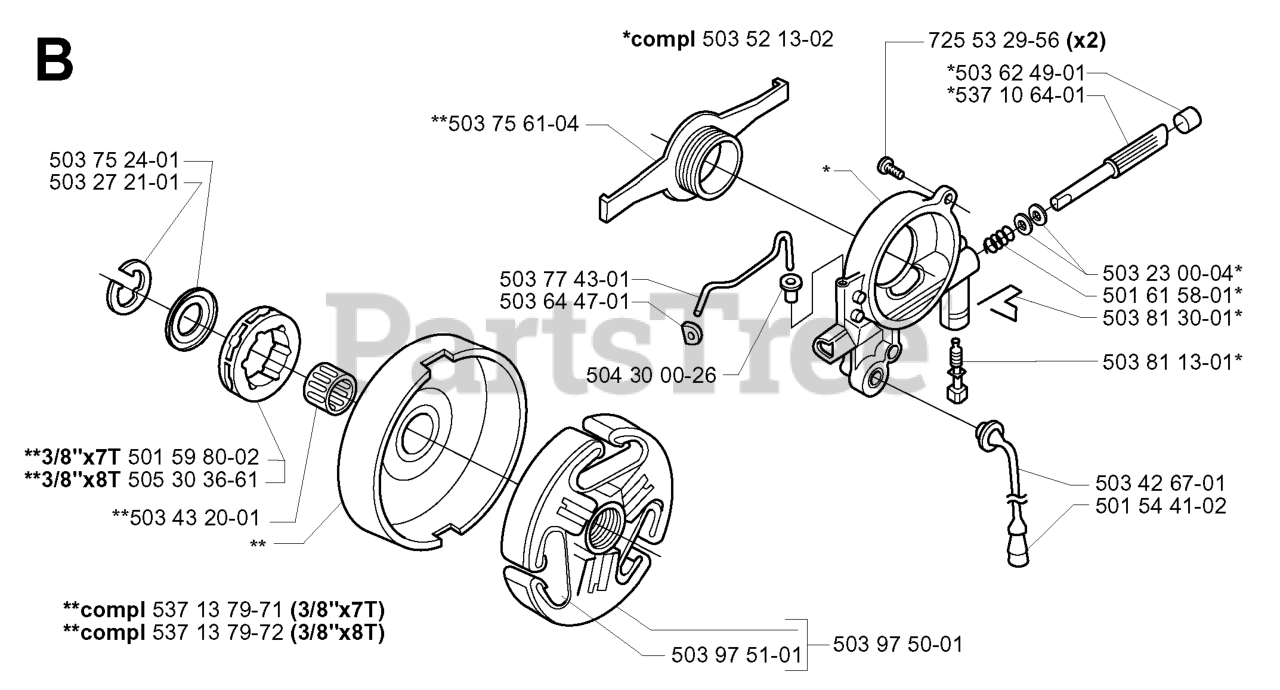

CLUTCH & OIL PUMP 2 Parts Diagram

  • Title

503 42 67-01

Husqvarna 503426701

OIL HOSE

$18.99

$

Usually ships in 3-10 days

0

503 97 51-01

Husqvarna 503975101

CLUTCH SPRING

$5.99

$

In Stock, only 3 left!

0

503 27 21-01

Husqvarna 503272101

RETAINING RING

$3.99

$

In Stock, Qty 14

0

503 75 24-01

Husqvarna 503752401

WASHER

$6.49

$

In Stock, Qty 6

0

725 53 29-56

Husqvarna 725532956

SCREW MC6S 5X16
(Superseded to 725532955)

$7.99

$

In Stock, Qty 20+

0

505 30 36-61

Husqvarna 505303661

22273 Sprocket 3/8"x8T
(Superseded to 640200216)

Note: 3/8X8T

$7.99

$

Usually ships in 3-10 days

0

503 77 43-01

Husqvarna 503774301

PIPE

$11.99

$

In Stock, only 1 left!

0

503 75 61-04

Husqvarna 503756104

PINION
(Superseded to 582270106)

$26.99

$

In Stock, only 2 left!

0

501 59 80-02

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: 3/8X7T

$8.49

$

In Stock, Qty 5

0

504 30 00-26

Husqvarna 504300026

SEAL

$4.99

$

In Stock, Qty 6

0

503 97 50-01

Husqvarna 503975001

CLUTCH
(Superseded to 537257501)

$63.99

$

Usually ships in 3-10 days

0

537 13 79-72

Husqvarna 537137972

CLUTCH ASSY

Note: 3/8X8T

$51.99

$

Usually ships in 3-10 days

0

537 13 79-71

Husqvarna 537137971

CLUTCH ASSY

Note: 3/8X7T

$56.99

$

In Stock, only 1 left!

0

503 64 47-01

Husqvarna 503644701

GROMMET

$6.99

$

In Stock, only 1 left!

0

503 52 13-02

Husqvarna 503521302

OIL PUMP
(Superseded to 503521305)

$109.99

$

In Stock, only 2 left!

0

537 10 64-01

Husqvarna 537106401

PUMP PISTON

$14.99

$

Usually ships in 3-10 days

0

503 62 49-01

Husqvarna 503624901

PLUG

$8.99

$

Usually ships in 3-10 days

0

503 43 20-01

Husqvarna 503432001

CLUTCH DRUM BEARING

$17.99

$

In Stock, only 4 left!

0

503 23 00-04

Husqvarna 503230004

WASHER 6.1X9

$4.99

$

Usually ships in 3-10 days

0

503 81 30-01

Husqvarna 503813001

SPRING CLIP

$4.99

$

In Stock, only 2 left!

0

501 61 58-01

Husqvarna 501615801

SPRING

$6.99

$

Usually ships in 3-10 days

0

503 81 13-01

Husqvarna 503811301

SCREW

$4.99

$

In Stock, only 2 left!

0

501 54 41-02

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, only 2 left!

0
