385 (214-385-100) - Cub Cadet 26" Front-Tine Tiller (1984) Wheel, Throttle Control And Handle Panel Assemblies Parts Diagram

26" Front-Tine Tiller

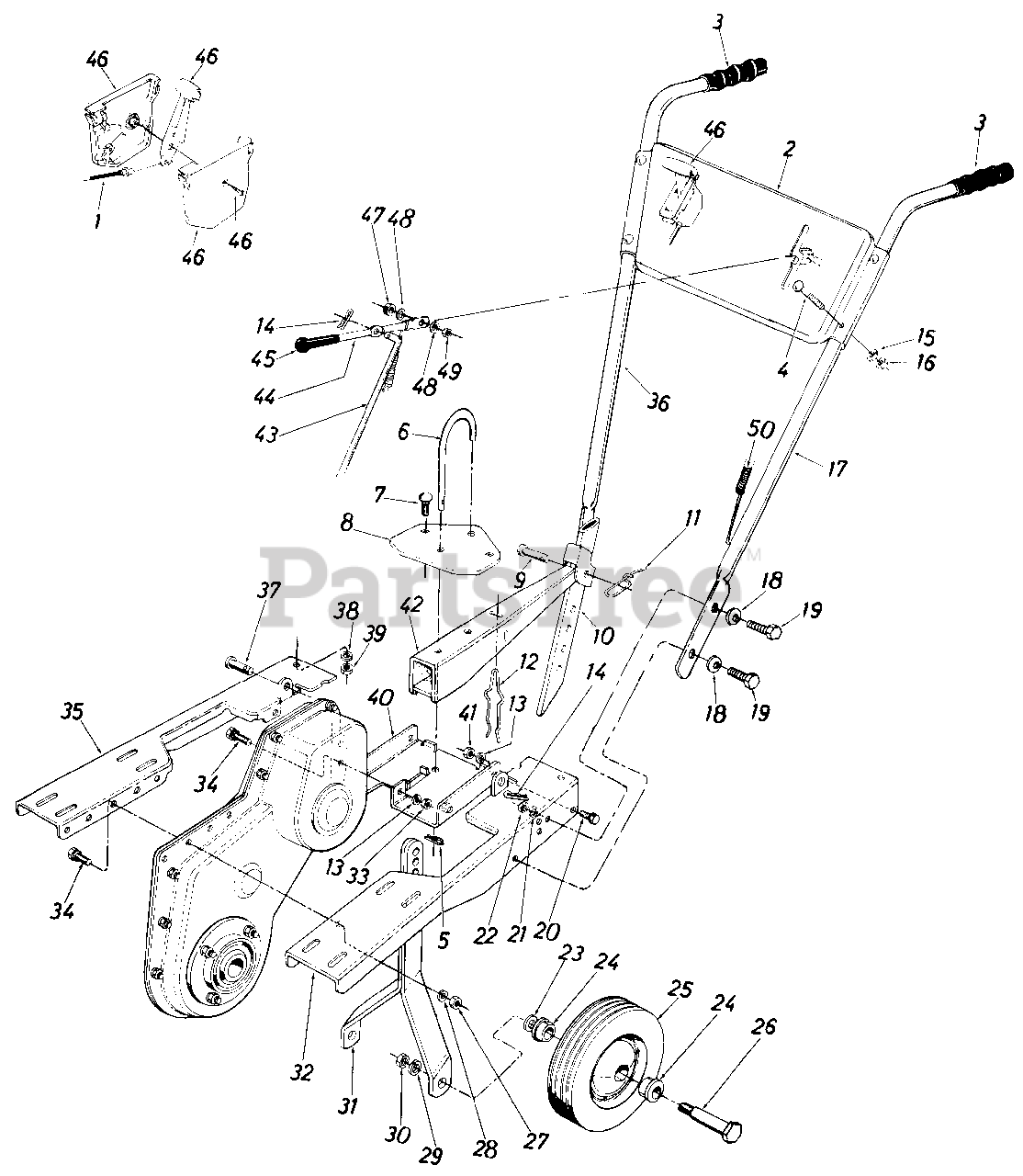

Wheel, Throttle Control And Handle Panel Assemblies Parts Diagram

  • Title
1

Cub Cadet 746-0503

Throttle Control Wire - 35"
(Superseded to 946-0503)

$

$

Not available

2

Cub Cadet 784-0034

Handle Panel Ass'y.

Note: Code N

$

$

Currently unavailable

3

Cub Cadet 720-0180

Handle Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.

$4.49

$

In Stock, only 4 left!

0

5

Cub Cadet 714-0149

Internal Cotter Pin
(Superseded to 914-0149B)

$

$

Not available

6

Cub Cadet 04602

"U"-Clevis Pin .500" Dia.

$

$

Not available

7

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 04586

"U"-Channel Plate

$

$

Currently unavailable

9

Cub Cadet 711-0231

Clevis Pin .500" Dia.
(Superseded to 911-0231)

$6.49

$

In Stock, only 2 left!

0

10

Cub Cadet 04668

Depth Bar

$

$

Not available

11

Cub Cadet 732-0194

Spring Pin

$4.99

$

In Stock, Qty 11

0

12

Cub Cadet 732-0290

Depth Bar Spring

$

$

Not available

13

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0145

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 749-0502

Handle - L.H.

$

$

Not available

18

Cub Cadet 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

23

Cub Cadet 736-0253

Belleville Wash. .505 I.D. x 1.00" O.D.

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 741-0116

Fl. Bearing w/Flats .631 I.D.

$

$

Not available

25

Cub Cadet 734-0736

Wheel Ass'y. Comp. 10 x 1.75

$

$

Not available

26

Cub Cadet 738-0318

Shoulder Bolt .625" Dia. x 2.75" Lg.

$

$

Not available

27

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

30

Cub Cadet 712-0200

Hex Ins. L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

31

Cub Cadet 06813

Wheel Bracket Ass'y.

$

$

Not available

32

Cub Cadet 06792

Engine "U"-Channel Ass'y. - L.H.

$

$

Currently unavailable

33

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

35

Cub Cadet 06794

Engine "U"-Channel Ass'y. - R.H.

$

$

Not available

36

Cub Cadet 749-0356

Handle - R.H.

$

$

Currently unavailable

37

Cub Cadet 711-0599

Clevis Pin
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

38

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 06816

"U"-Channel Bracket Ass'y.

$

$

Currently unavailable

41

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 04589

Tailpiece Ass'y.

$

$

Not available

43

Cub Cadet 747-0183

Control Rod

$

$

Currently unavailable

44

Cub Cadet 747-0182

Clutch Lever

$

$

Not available

$

$

Not available

46

Cub Cadet 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

Note: Code N

$21.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 735-0126

Rubber Wash.
(Superseded to 735-0126A)

$

$

Not available

48

Cub Cadet 736-0159

Fl-Wash. .344" I.D. x .880 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

50

Cub Cadet 732-0191

Extension Spring .75" O.D. x 11.0" Lg.

$

$

Not available
