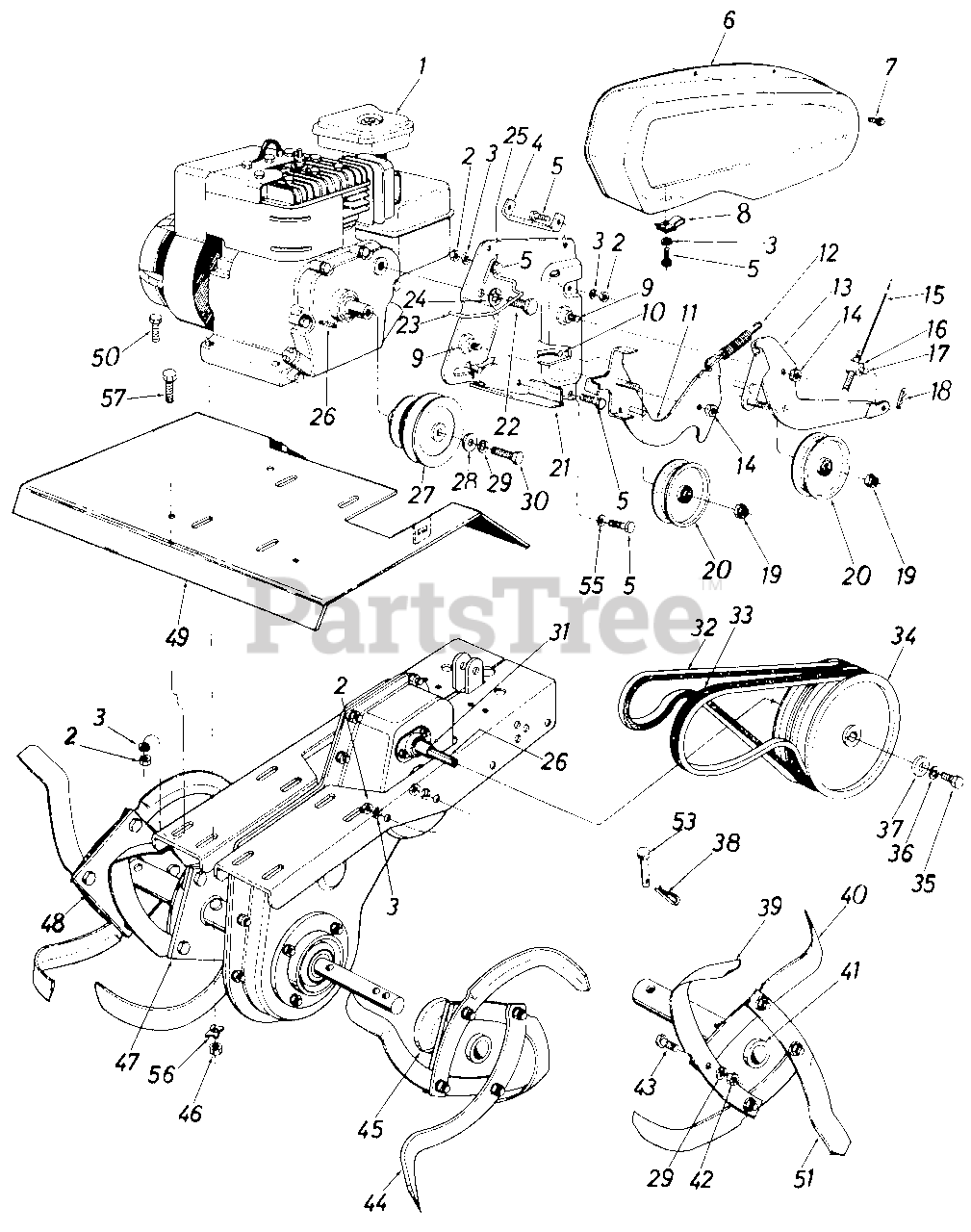

385 (212-385-100) - Cub Cadet 26" Front-Tine Tiller (1982) Inner/Outer Tine and Tine Shield Parts Diagram

26" Front-Tine Tiller

Inner/Outer Tine and Tine Shield Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

3

Cub Cadet 736-0329

L-Wash. 1/4" Scr.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

4

Cub Cadet 06801

Support Bracket

$

$

Currently unavailable

5

Cub Cadet 710-0252

Hex Scr. 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 06796

Belt Guard

Variations

Cub Cadet 06796-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 710-0599

Thread Rolling Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0185

"U"-Type Speed Nut

$

$

Not available

9

Cub Cadet 738-0281

Shoulder Bolt .625 Dia. x .170" Lg.

Note: (2 Req'd.)

$10.99

$

In Stock, only 2 left!

0

10

Cub Cadet 747-0180

Control Rod

$

$

Currently unavailable

11

Cub Cadet 06786

Reverse Idler Brkt. Ass'y.

$

$

Currently unavailable

12

Cub Cadet 732-0433

Spring - Idler Brkt.

$

$

Not available

13

Cub Cadet 06784

Forward Idler Brkt. Ass'y.

$

$

Currently unavailable

14

Cub Cadet 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

Note: (2 Req'd.)

$4.49

$

In Stock, Qty 6

0

15

Cub Cadet 747-0183

Clutch Control Rod

$

$

Currently unavailable

16

Cub Cadet 712-0195

Speed Nut 3/8-24 Thd.
(Superseded to 712-0711)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 711-0392

Ferrule

$13.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 714-0145

Inter. Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0262

Hex Jam Nut 3/8-24 Thd.

Note: (2 Req'd.)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 756-0225

Fl-Idler w/Flanges 3.12 O.D. x .75

Note: (2 Req'd.)

$

$

Not available

21

Cub Cadet 06803

Clutch Mounting Plate

$

$

Currently unavailable

22

Cub Cadet 710-0121

Hex Bolt 1/2-20 x .75 Spec.

$

$

Not available

23

Cub Cadet 747-0181

Belt Guard Rod

$

$

Currently unavailable

24

Cub Cadet 736-0114

Internal L-Wash. 1/4" I.D.

$

$

Not available

25

Cub Cadet 736-0463

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 714-0133

Sq. Key 3/16 x 1.50" Lg.

$4.99

$

In Stock, Qty 12

0

27

Cub Cadet 756-0261

Engine Pulley

$

$

Currently unavailable

28

Cub Cadet 736-0258

Fl-Wash. 3/8" I.D. x 1.00" O.D.

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

31

Cub Cadet 750-0229

Spacer .635 I.D. x .88 O.D. x 1.035 Lg.
(Superseded to 950-0229)

$

$

Not available

32

Cub Cadet 754-0201

"V"-Belt 1/2" x 41" Lg. Reverse
(Superseded to 954-0201)

$35.99

$

In Stock, only 1 left!

0

33

Cub Cadet 754-0154

"V"-Belt 1/2" x 37" Lg. Forward
(Superseded to 954-0154)

$38.99

$

In Stock, only 2 left!

0

34

Cub Cadet 756-0262

Chain Case Pulley 6.0" Dia.

$

$

Currently unavailable

35

Cub Cadet 710-0573

Hex Bolt 5/16-18 x 1.25 Lg. Spec.

$6.49

$

In Stock, Qty 13

0

36

Cub Cadet 736-0170

Shake-Proof Wash.

$5.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-0231

Fl-Wash. 5/16" I.D. x 1.120 O.D.

$4.99

$

In Stock, Qty 20+

0

38

Cub Cadet 714-0145

Internal Cotter Pin 1/2" Dia.

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 742-0107

Tine - L.H.

Variations

Cub Cadet 742-0107-0637

TINE (LH) - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 742-0108

Tine - R.H.
(Superseded to 742-0108-0637)

Variations

Cub Cadet 742-0108-0637

TINE-RH-14IN-BOLO - POWDER BLACK (0637)

$

$

Not available

$

$

41

Cub Cadet 04683

Outer Tine Adapter Ass'y.

Variations

Cub Cadet 04683-0637

ADAPTER AS - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

43

Cub Cadet 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

44

Cub Cadet 06819

Inner Tine Ass'y. Comp. - L.H.

$

$

Not available

45

Cub Cadet 06798

Inner Tine Adapter Ass'y.

$

$

Currently unavailable

46

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 06818

Inner Tine Ass'y. Comp. - R.H.

$

$

Not available

48

Cub Cadet 04290

Outer Tine Ass'y. Comp. - R.H.

$

$

Not available

49

Cub Cadet 04776

Tine Shield

$

$

Not available

50

Cub Cadet 710-0442

Hex Scr. 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 04289

Outer Tine Ass'y. Comp. - L.H.

$

$

Not available

53

Cub Cadet 711-0599

Clevis Pin
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

55

Cub Cadet 736-0175

Bell-Wash.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

56

Cub Cadet 736-0170

Shake-Proof Wash.

$5.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 710-0252

Hex Scr. 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0
