38474 (518 ZR) - Toro 18" Power Clear Snow Thrower (SN: 400000000 - 412699999) Belt and Drive Assembly Parts Diagram

18" Power Clear Snow Thrower

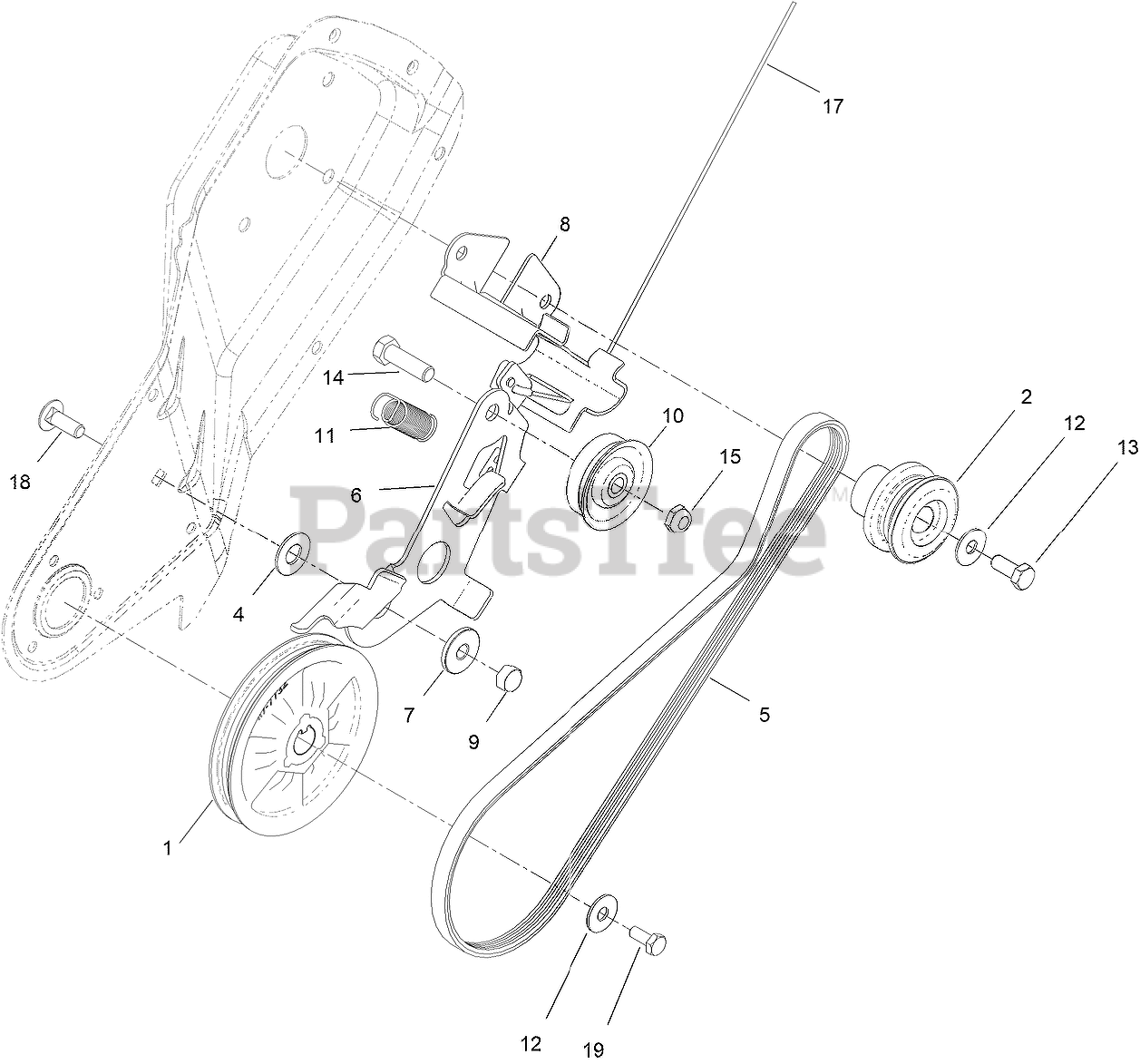

Belt and Drive Assembly Parts Diagram

  • Title

1

Toro 117-7732

ROTOR PULLEY ASM

$32.99

$

Usually ships in 3-6 days

0

2

Toro 117-7734

PULLEY-ENGINE

$54.99

$

Usually ships in 3-6 days

0

4

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

5

Toro 117-7733

BELT-V, RIBBED

$17.99

$

In Stock, Qty 7

0

6

Toro 136-7123

ARM-IDLER

$10.99

$

Usually ships in 3-6 days

0

7

Toro 117-7711

BUSHING-IDLER

$2.99

$

Usually ships in 3-6 days

0

8

Toro 136-7142

GUIDE-BELT

$7.49

$

Usually ships in 3-6 days

0

9

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

10

Toro 117-9105

PULLEY-IDLER

$36.99

$

Usually ships in 3-6 days

0

11

Toro 117-7715

SPRING-BRAKE

$4.99

$

Usually ships in 3-6 days

0

12

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

13

Toro 137-3069

SCREW-HH LOCK

$1.49

$

Usually ships in 3-6 days

0

14

Toro 136-8684

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

15

Toro 121-4600

NUT-HEX

$1.49

$

In Stock, Qty 18

0

17

Toro 117-7721

CABLE-CLUTCH

$24.99

$

Usually ships in 3-6 days

0

18

Toro 137-3058

BOLT-CARR

$7.99

$

Usually ships in 3-6 days

0

19

Toro 137-3014

SCREW-HH LOCK

$0.99

$

Usually ships in 3-6 days

0
