38473 (518 ZE) - Toro 18" Power Clear Snow Thrower (SN: 404621000 - 409129999) Engine Assembly No. 1 Parts Diagram

18" Power Clear Snow Thrower

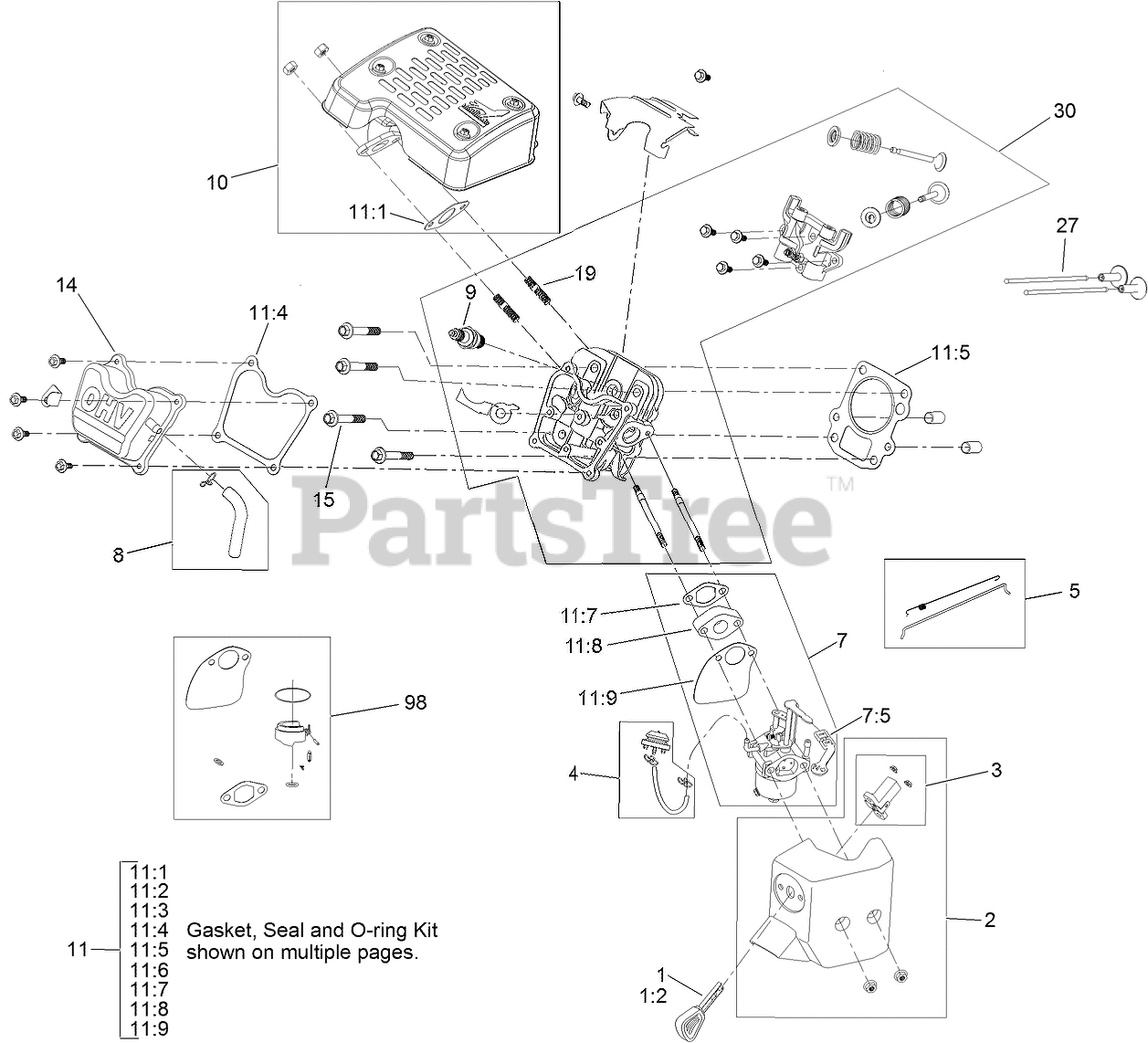

Engine Assembly No. 1 Parts Diagram

  • Title

1

Toro 119-1929

KEY AND LANYARD KIT

$11.99

$

Usually ships in 3-6 days

0

1:2

Toro 117-7728

KEY

$4.49

$

In Stock, Qty 20+

0

2

Toro 119-1982

HEATER BOX KIT

$46.99

$

Usually ships in 3-6 days

0

3

Toro 119-1932

SWITCH KIT

$14.99

$

Usually ships in 3-6 days

0

4

Toro 119-1981

PRIMER BULB KIT

$35.99

$

In Stock, only 2 left!

0

5

Toro 121-0489

GOVERNOR KIT

$28.99

$

Usually ships in 3-6 days

0

7

Toro 136-7931

COMPLETE CARB SERVICE KIT

$86.99

$

In Stock, only 1 left!

0

7:5

Toro 133-9975

LEVER-CHOKE

$4.99

$

In Stock, Qty 15

0

8

Toro 119-1921

BREATHER TUBE KIT
(Superseded to 139-0630)

$3.49

$

In Stock, only 1 left!

0

9

Toro 119-1961

SPARK PLUG
(Superseded to 121-4199)

$4.49

$

In Stock, Qty 20+

0

10

Toro 133-9822

MUFFLER KIT

$85.99

$

Usually ships in 3-6 days

0

11

Toro 127-9073

GASKET, SEAL AND O-RING KIT

$70.99

$

Usually ships in 3-6 days

0

11:1

Toro 121-0168

GASKET-EXHAUST

$1.99

$

Usually ships in 3-6 days

0

11:2

Toro 121-0207

SEAL-OIL

$

$

Currently unavailable

11:3

Toro 121-0210

SEAL-OIL

$

$

Currently unavailable

11:4

Toro 121-0110

GASKET-COVER, VALVE

$12.99

$

In Stock, only 2 left!

0

11:5

Toro 127-9039

GASKET-HEAD, CYLINDER

$

$

Currently unavailable

11:6

Toro 121-0106

GASKET-COVER, CRANKCASE

$7.99

$

Usually ships in 3-6 days

0

11:7

Toro 120-4486

GASKET-INSULATOR

$

$

Currently unavailable

11:8

Toro 121-0093

INSULATOR-CARBURETOR

$

$

Currently unavailable

11:9

Toro 127-9052

GASKET-CARBURETOR

$

$

Currently unavailable

14

Toro 121-0466

VALVE COVER ASM

$20.99

$

Usually ships in 3-6 days

0

15

Toro 121-0473

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

19

Toro 121-0464

STUD-EXHAUST

$2.99

$

Usually ships in 3-6 days

0

27

Toro 127-9055

ROD-PUSH

$3.49

$

Usually ships in 3-6 days

0

30

Toro 133-9825

COMPLETE HEAD ASM

$152.99

$

Usually ships in 3-6 days

0

98

Toro 127-9158

CARBURETOR REPAIR KIT

$25.99

$

Usually ships in 3-6 days

0

99

Toro 127-9300

HIGH ALTITUDE KIT

Note: Not illustrated

$11.99

$

Usually ships in 3-6 days

0
