38472 (518 ZR) - Toro 18" Power Clear Snow Thrower (SN: 402082000 - 404299999) HANDLE ASSEMBLY Parts Diagram

18" Power Clear Snow Thrower

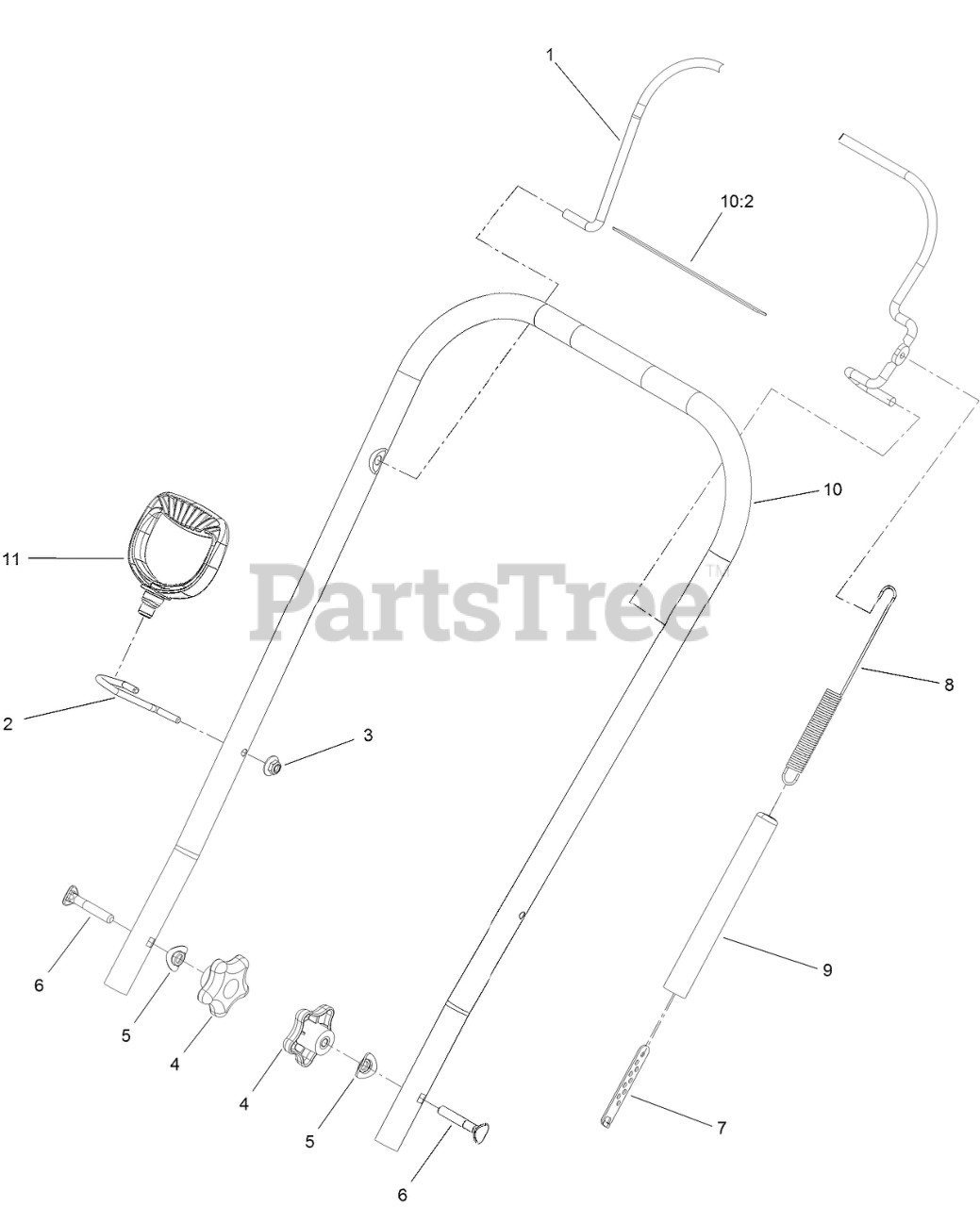

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 117-7718-03

BAIL-CLUTCH

$22.99

$

In Stock, only 1 left!

0

2

Toro 136-7144

GUIDE-ROPE

$2.99

$

In Stock, Qty 5

0

3

Toro 114-3778

NUT-HF

$1.49

$

In Stock, Qty 12

0

4

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, only 2 left!

0

5

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 19

0

6

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 5

0

7

Toro 136-7126

ADJUSTER-CLUTCH CABLE

$6.99

$

In Stock, Qty 12

0

8

Toro 119-2913

SPRING-CLUTCH

$6.99

$

In Stock, only 3 left!

0

9

Toro 114-3796

COVER-SPRING

$5.49

$

In Stock, Qty 5

0

10

Toro 117-7743

UPPER HANDLE ASM

$70.99

$

In Stock, only 1 left!

0

10:2

Toro 117-7713

DECAL-SAFETY

$3.49

$

Usually ships in 3-6 days

0

11

Toro 117-9104

HANDLE-RECOIL
(Superseded to 121-0287)

$13.99

$

In Stock, only 2 left!

0
