38472 (518 ZR) - Toro 18" Power Clear Snow Thrower (SN: 400000000 - 402081999) ROTOR DRIVE ASSEMBLY Parts Diagram

18" Power Clear Snow Thrower

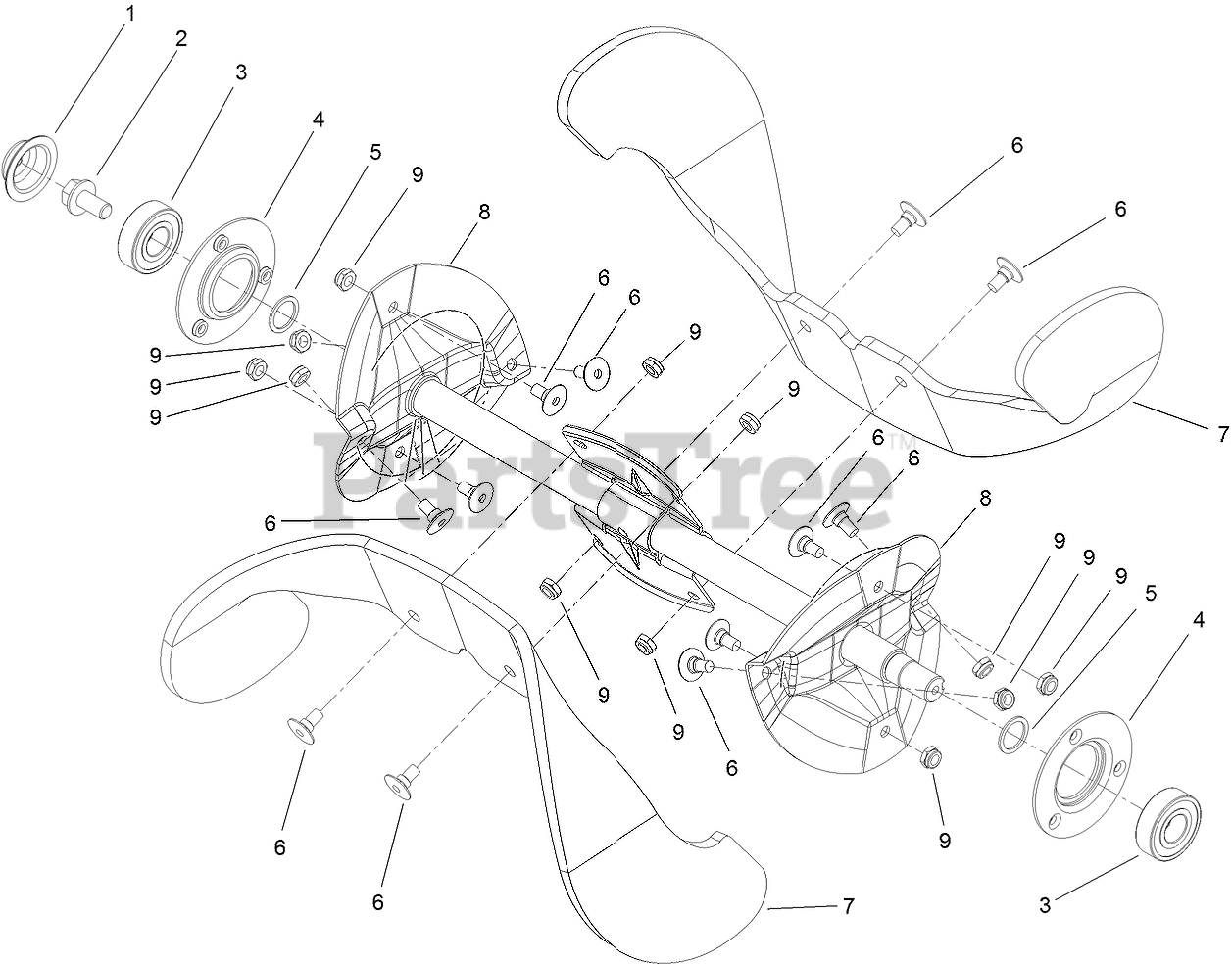

ROTOR DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 117-7720

CAP-SIDEPLATE, RH

$2.99

$

In Stock, only 2 left!

0

2

Toro 110-9380

SCREW-HWH

$2.99

$

In Stock, Qty 6

0

3

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

4

Toro 112-8105

FLANGE-BEARING

$

$

Not available

5

Toro 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

6

Toro 84-1970

SCREW
(Superseded to 136-7183)

$1.99

$

In Stock, only 1 left!

0

7

Toro 117-7700

BLADE-ROTOR

$35.99

$

In Stock, Qty 20+

0

8

Toro 117-2315-03

ROTOR ASM

$103.99

$

Usually ships in 3-6 days

0

9

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
