38472 (518 ZR) - Toro 18" Power Clear Snow Thrower (SN: 315000001 - 315999999) (2015) ENGINE ASSEMBLY NO. 2 Parts Diagram

18" Power Clear Snow Thrower

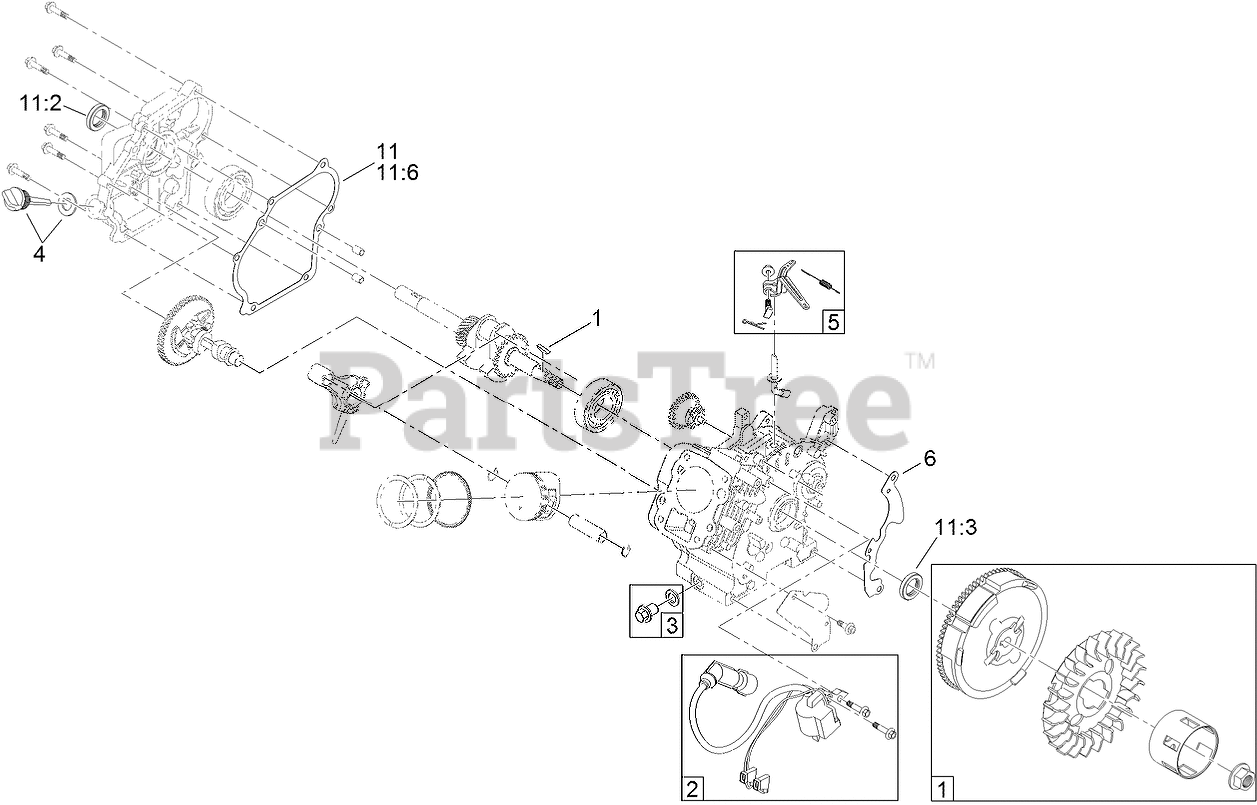

ENGINE ASSEMBLY NO. 2 Parts Diagram

  • Title

1

Toro 119-1962

FLYWHEEL AND FAN KIT

$101.99

$

Usually ships in 3-6 days

0

2

Toro 119-1960

IGNITION KIT
(Superseded to 136-7772)

$85.99

$

In Stock, only 1 left!

0

3

Toro 119-1923

DRAIN PLUG KIT

$7.99

$

Usually ships in 3-6 days

0

4

Toro 119-1922

DIPSTICK AND O-RING KIT

$11.99

$

In Stock, only 3 left!

0

5

Toro 127-9074

GOVERNOR KIT

$27.99

$

Usually ships in 3-6 days

0

6

Toro 119-1927

BLOWER SHROUD KIT

$56.99

$

Usually ships in 3-6 days

0

11

Toro 127-9073

GASKET, SEAL AND O-RING KIT

$70.99

$

Usually ships in 3-6 days

0

11:2

Seal-Oil

Note: Not serviced separately

$

$

Not available

11:3

Seal-Oil

Note: Not serviced separately

$

$

Not available

11:6

GASKET-COVER, CRANKCASE

Note: Not serviced separately

$

$

Not available

11:1

Gasket-Exhaust

Note: Not serviced separately

$

$

Not available

11:4

Toro 121-0110

GASKET-COVER, VALVE

$12.99

$

In Stock, only 2 left!

0

11:5

GASKET-HEAD, CYLINDER

Note: Not serviced separately

$

$

Not available

11:7

GASKET-INSULATOR

Note: Not serviced separately

$

$

Not available

11:8

INSULATOR-CARBURETOR

Note: Not serviced separately

$

$

Not available

11:9

GASKET-CARBURETOR

Note: Not serviced separately

$

$

Not available
