38458 (621 QZR) - Toro 21" Power Clear Snow Thrower (SN: 314000001 - 314999999) (2014) HANDLE CHUTE CONTROL ASSEMBLY Parts Diagram

21" Power Clear Snow Thrower

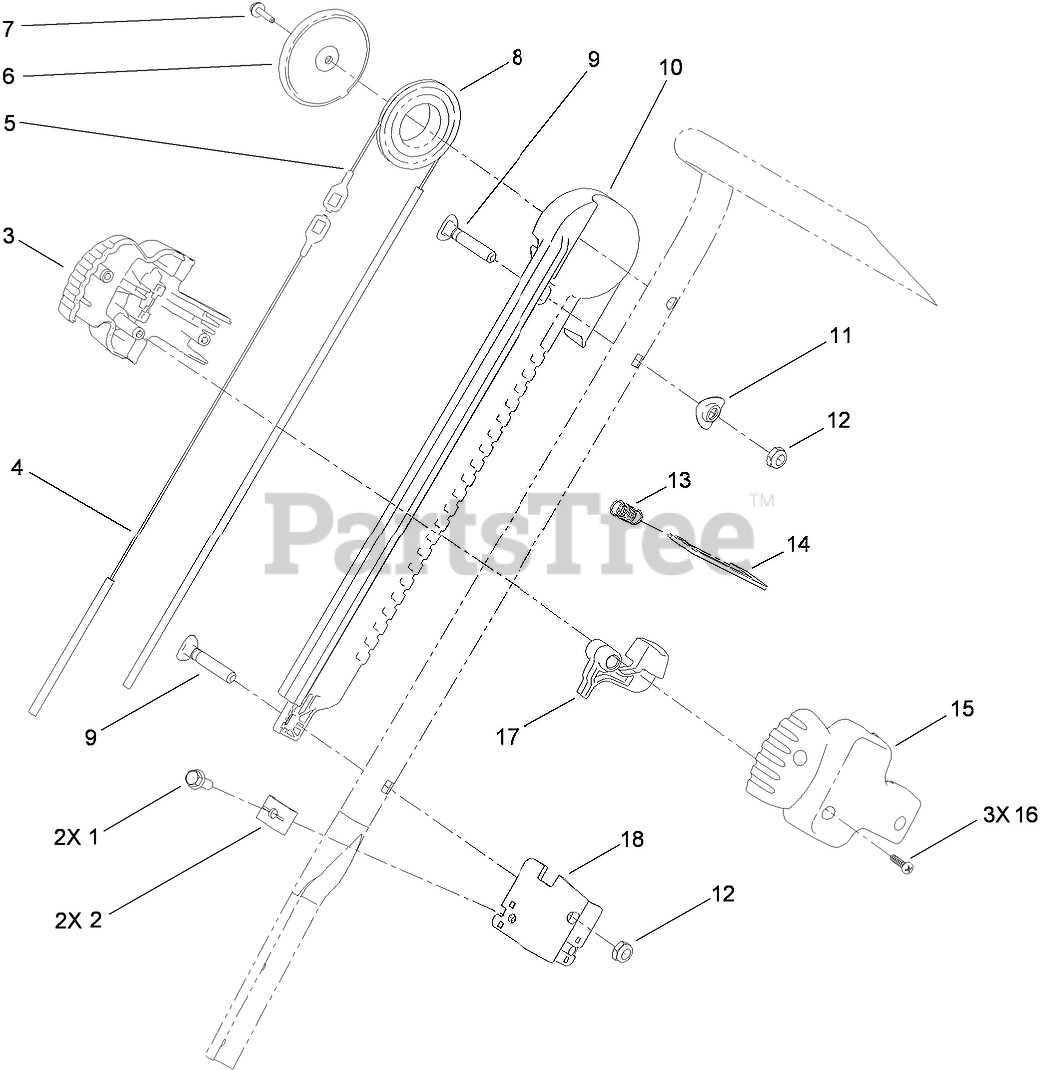

HANDLE CHUTE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

2

Toro 106-7297

CLAMP-CABLE
(Superseded to 136-7191)

$4.99

$

Usually ships in 3-6 days

0

3

Toro 108-4912

HANDLE-SLIDER, RH

$13.99

$

Usually ships in 3-6 days

0

4

Toro 108-4897

CABLE-CHUTE, SHORT

$18.99

$

In Stock, only 1 left!

0

5

Toro 108-4898

CABLE-CHUTE, LONG

$23.99

$

In Stock, only 2 left!

0

6

Toro 108-4931

COVER-PULLEY

$6.99

$

Usually ships in 3-6 days

0

7

Toro 98-1375

SCREW-HWH

$2.49

$

In Stock, Qty 12

0

8

Toro 108-4907

PULLEY-SLIDER

$11.99

$

In Stock, Qty 5

0

9

Toro 107-3018

SCREW-HANDLE

$3.49

$

In Stock, only 3 left!

0

10

Toro 108-4899

TRACK-SLIDER

$17.99

$

In Stock, only 2 left!

0

11

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 20+

0

12

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 6

0

13

Toro 108-4914

SPRING-TRIGGER

$4.99

$

Usually ships in 3-6 days

0

14

Toro 108-4908

PLATE-LOCK, CHUTE
(Superseded to 136-7131)

$3.49

$

Usually ships in 3-6 days

0

15

Toro 108-4911

HANDLE-SLIDER, LH

$13.99

$

Usually ships in 3-6 days

0

16

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

17

Toro 108-4913

TRIGGER

$8.99

$

Usually ships in 3-6 days

0

18

Toro 108-4909

BRACKET-CABLE
(Superseded to 136-7132)

$5.99

$

Usually ships in 3-6 days

0
