38454 (621 ZE) - Toro 21" Power Clear Snow Thrower (SN: 311000001 - 311999999) (2011) ELECTRIC START ENGINE COMPONENT ASSEMBLY Parts Diagram

21" Power Clear Snow Thrower

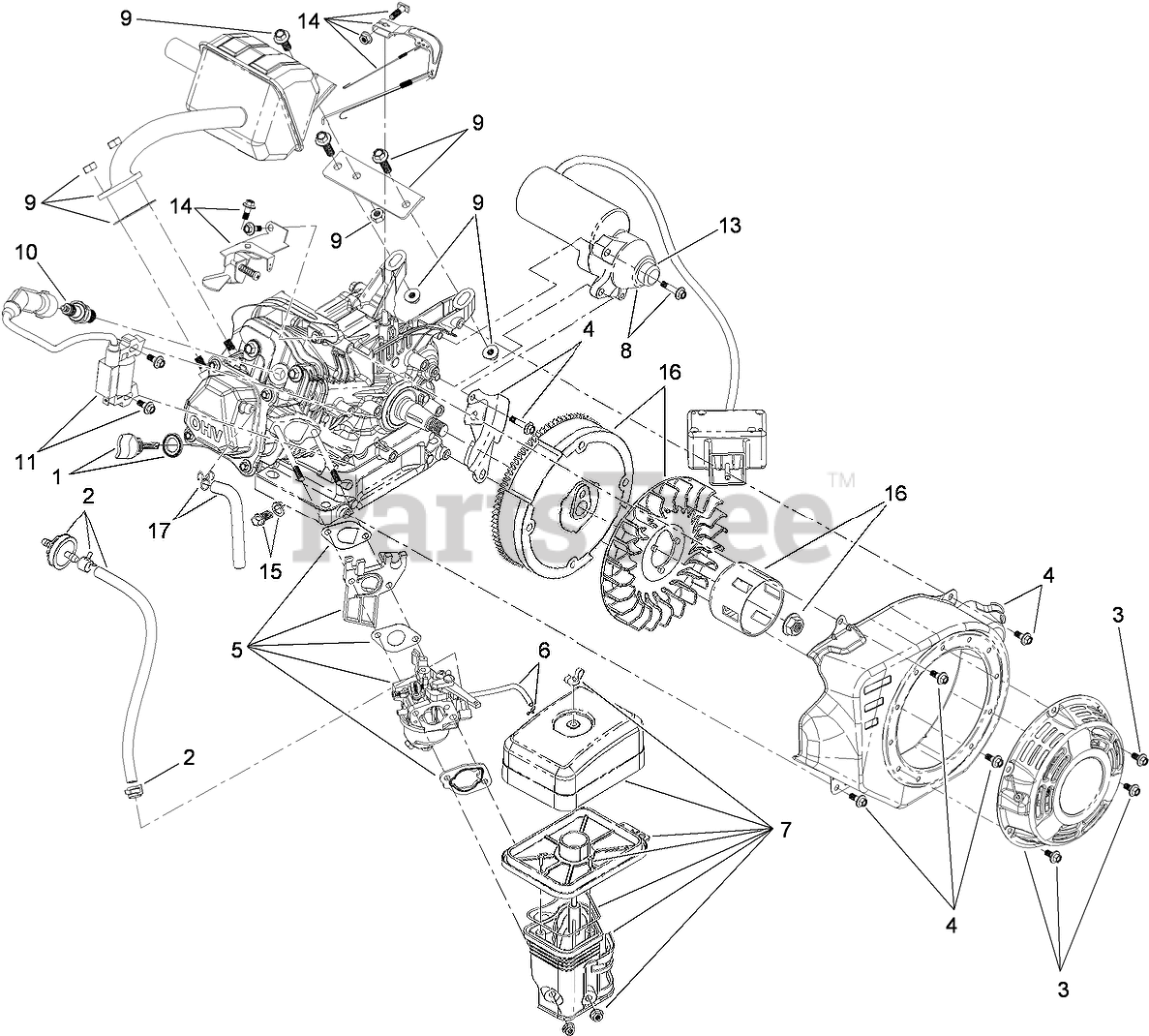

ELECTRIC START ENGINE COMPONENT ASSEMBLY Parts Diagram

  • Title

1

Toro 119-1944

OBS DIPSTICK AND O-RING KIT
(Superseded to 127-9374)

$11.99

$

In Stock, only 2 left!

0

2

Toro 120-4402

FUEL LINE KIT

$19.99

$

In Stock, only 1 left!

0

3

Toro 119-1945

RECOIL KIT
(Superseded to 121-4252)

$95.99

$

In Stock, Qty 5

0

4

Toro 119-1946

BLOWER SHROUD KIT

$84.99

$

Usually ships in 3-6 days

0

5

Toro 120-4419

CARBURETOR AND FUEL LINE KIT

$91.99

$

In Stock, only 1 left!

0

5

Toro 120-4416

CARB FLOAT, VALVE AND GASKET KIT
(Superseded to 127-9089)

Note: Not illustrated

$27.99

$

In Stock, only 2 left!

0

6

Toro 119-1949

PRIMER LINE KIT
(Superseded to 127-9376)

$31.99

$

In Stock, only 1 left!

0

7

Toro 119-1950

HEATER BOX KIT
(Superseded to 121-4282)

$50.99

$

Usually ships in 3-6 days

0

8

Toro 119-1952

ELECTRIC STARTER KIT
(Superseded to 144-0994)

$353.99

$

Usually ships in 3-6 days

0

9

Toro 119-1954

MUFFLER KIT

$82.99

$

Usually ships in 3-6 days

0

10

Toro 119-1901

PLUG-SPARK
(Superseded to 81-3250)

$3.49

$

In Stock, Qty 20+

0

11

Toro 119-1959

IGNITION KIT
(Superseded to 136-7766)

$82.99

$

In Stock, only 2 left!

0

12

Toro 119-1955

GASKET AND SEAL KIT

Note: Not illustrated

$82.99

$

Usually ships in 3-6 days

0

13

Toro 119-1956

PINION KIT

$79.99

$

Usually ships in 3-6 days

0

14

Toro 119-1957

GOVERNOR KIT
(Superseded to 136-7765)

$27.99

$

In Stock, only 2 left!

0

15

Toro 119-1923

DRAIN PLUG KIT

$7.99

$

Usually ships in 3-6 days

0

16

Toro 119-1958

FLYWHEEL KIT

$150.99

$

Usually ships in 3-6 days

0

17

Toro 119-1921

BREATHER TUBE KIT
(Superseded to 139-0630)

$3.49

$

In Stock, only 1 left!

0
