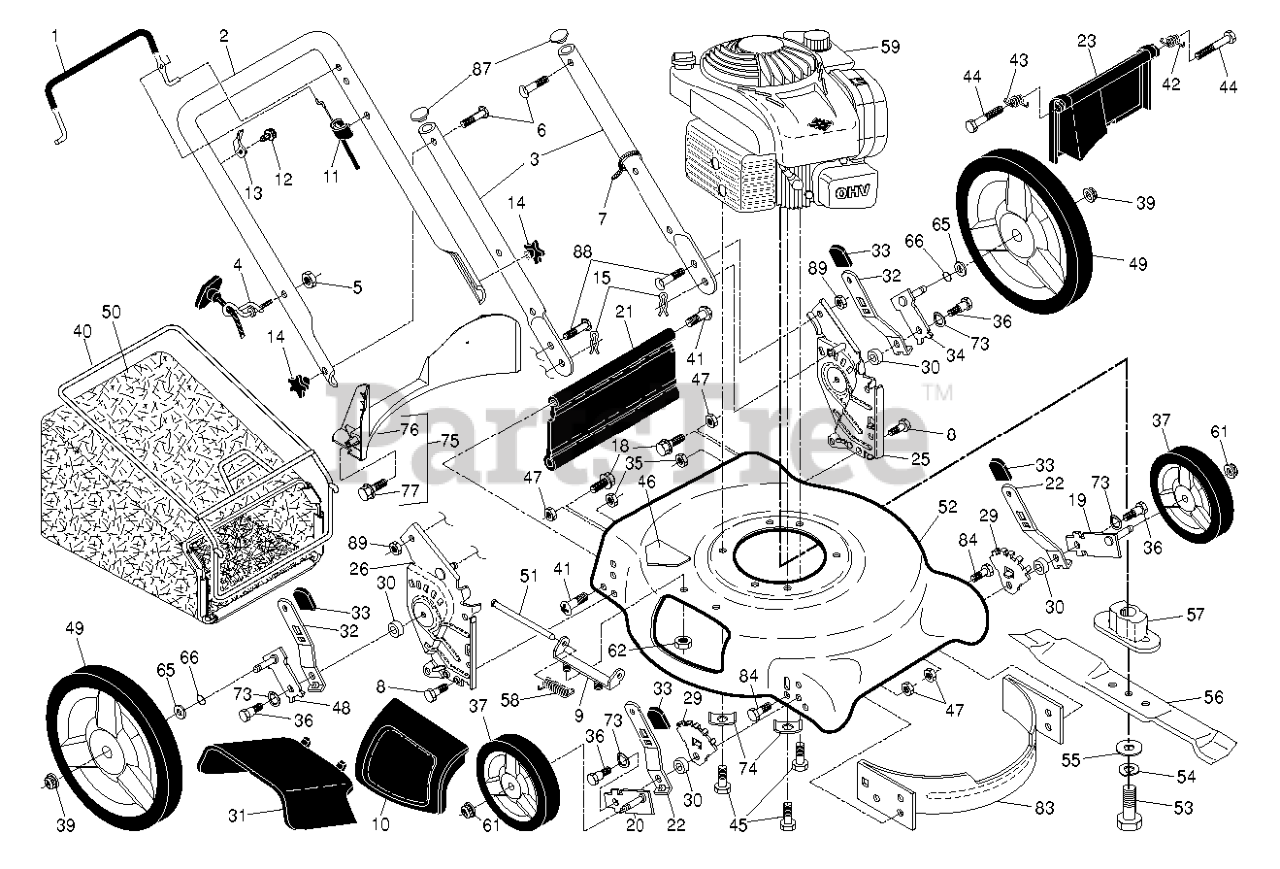

38454 (384542) - Husqvarna Walk-Behind Mower (2013-02) PRODUCT COMPLETE Parts Diagram

Walk-Behind Mower

PRODUCT COMPLETE Parts Diagram

  • Title
55

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 4 left!

0

29

Husqvarna 532410594

WHEEL ADJ BRACKET FRONT
(Superseded to 532407494)

Note: FRONT

$4.99

$

In Stock, only 2 left!

0

65

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, Qty 6

0

$6.49

$

In Stock, only 1 left!

0

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)
(Superseded to 581579101)

Note: NOT SHOWN

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532185595

DEFLECTOR.CLIPPING.21.GREY
(Superseded to 589482402)

$10.99

$

In Stock, only 1 left!

0

73

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$4.99

$

In Stock, only 3 left!

0

57

Husqvarna 581547901

ADAPTOR.BLADE.7/8

$17.99

$

In Stock, Qty 20+

0

6

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, only 4 left!

0

42

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

Note: LH

$4.99

$

In Stock, only 3 left!

0

20

Husqvarna 532406690

AXLE ARM ASSY FRONT RH
(Superseded to 532401175)

Note: RH

$6.99

$

In Stock, only 3 left!

0

34

Husqvarna 532410600

AXLE ARM ASSY REAR LH
(Superseded to 532401176)

Note: LH

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 581425601

DOOR.REAR.21.DOMED.498
(Superseded to 532401814)

$13.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

$7.49

$

In Stock, only 4 left!

0

46

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

49

Husqvarna 580334601

WHEEL.12 X 1.75 CFH3SPK.RAD3
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

41

Husqvarna 532194186

SCREW.1/4-20X21/4.HEX.

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532441559

SPRING.SEL.22.ECON.HI-WHL.RATO

Note: REAR

$6.99

$

Usually ships in 3-10 days

0

89

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532426589

NUT.FLANGE.HEX.5/16X18.BLACK
(Superseded to 585802801)

$5.99

$

In Stock, Qty 12

0

40

Husqvarna 532411949

FRAME.BAG.21.REAR.DOMED.PUSH

$

$

Not available

74

Husqvarna 532125078

WASHER.ENGINE.BZP

$5.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$4.99

$

In Stock, Qty 20+

0

59

000000000

Note: B&S 9P702-0010-F1 FOR SERVICE & PARTS 1-800-233-3723

$

$

Not available

15

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

Usually ships in 3-10 days

0

45

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532408047

CONTROL.ZONE.ASM

$17.99

$

In Stock, only 2 left!

0

53

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

2

Husqvarna 532427971

HANDLE.UP.DST.SS/VS.FG/RGD.CRE

$20.99

$

Usually ships in 3-10 days

0

3

Husqvarna 580638603

HANDLE.LOWER.DOME.BT.GREY

$

$

Not available

5

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

30

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

In Stock, only 4 left!

0

76

Husqvarna 532410589

BAFFLE.REAR.PLASTIC.21.RD.ECON

$13.99

$

Usually ships in 3-10 days

0

26

Husqvarna 580915703

BRACKET.ASM.HAND.HW.21.RT.498

Note: RH

$11.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

$4.99

$

Usually ships in 3-10 days

0

62

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

84

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

22

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

Note: FRONT

$5.99

$

In Stock, only 2 left!

0

13

Husqvarna 532430034

BRACKET.UPSTOP.RT

$6.99

$

In Stock, only 3 left!

0

21

Husqvarna 532418655

RP_KIT.SKIRT.21 DOMED.W/LIP
(Superseded to 532416860)

$13.99

$

In Stock, Qty 5

0

47

Husqvarna 532751153

NUT.LOCK.5/16-18

$4.99

$

In Stock, only 1 left!

0

51

Husqvarna 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 9

0

88

Husqvarna 872250505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

58

Husqvarna 532152124

TORSION SPRING

$7.49

$

In Stock, only 4 left!

0

36

Husqvarna 532401638

SHOULDER BOLT 5/16-18
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

83

Husqvarna 532428501

BAFFLE.FRONT.21.DOME.US

$20.99

$

In Stock, Qty 5

0

54

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532413183

WHEEL AND TIRE ASSY, REAR
(Superseded to 532401272)

$31.99

$

In Stock, only 4 left!

0

8

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 532410601

AXLE ARM ASSY REAR RH
(Superseded to 532401177)

Note: RH

$

$

Not available

66

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 581825801

DOOR.MULCH.21".REAR.PUSH.GRAY

$13.99

$

In Stock, Qty 6

0

43

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

Note: RH

$4.99

$

In Stock, only 3 left!

0

75

Husqvarna 532413693

KIT.BAFFLE.REAR.PLASTIC.21.RD

Note: INCL 3 SCREWS

$30.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, Qty 20+

0

52

Husqvarna 532441950

HOUSING.21.M/C.DOME.ORANGE
(Superseded to 581708322)

$

$

Not available

61

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

77

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

56

Husqvarna 532406712

BLADE.21.PUSH/RWGD/FWGD
(Superseded to 594893001)

$20.99

$

In Stock, only 2 left!

0

1

Husqvarna 581497402

RP BAIL.OVER.MOLD.STRAIGHT.ORG
(Superseded to 587478302)

$26.99

$

In Stock, only 1 left!

0

50

Husqvarna 581002102

GBAG.23230247.SILVER.HUSQ.BLUE
(Superseded to 581002101)

$93.99

$

In Stock, Qty 20+

0

19

Husqvarna 532406689

AXLE ARM ASSY FRONT LH
(Superseded to 532401174)

Note: LH

$

$

Not available

9

Husqvarna 532154132

BRACKET.ASM.HOUSING.EZ.MUL

$6.99

$

In Stock, only 1 left!

0

25

Husqvarna 580915603

BRACKET.ASM.HAND.HW.21.LT.GREY

Note: LH

$26.99

$

Usually ships in 3-10 days

0

$

$

Not available

7

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0
