38452 (621 E) - Toro 21" Power Clear Snow Thrower (SN: 314000001 - 314999999) (2014) ENGINE ASSEMBLY NO. 1 Parts Diagram

21" Power Clear Snow Thrower

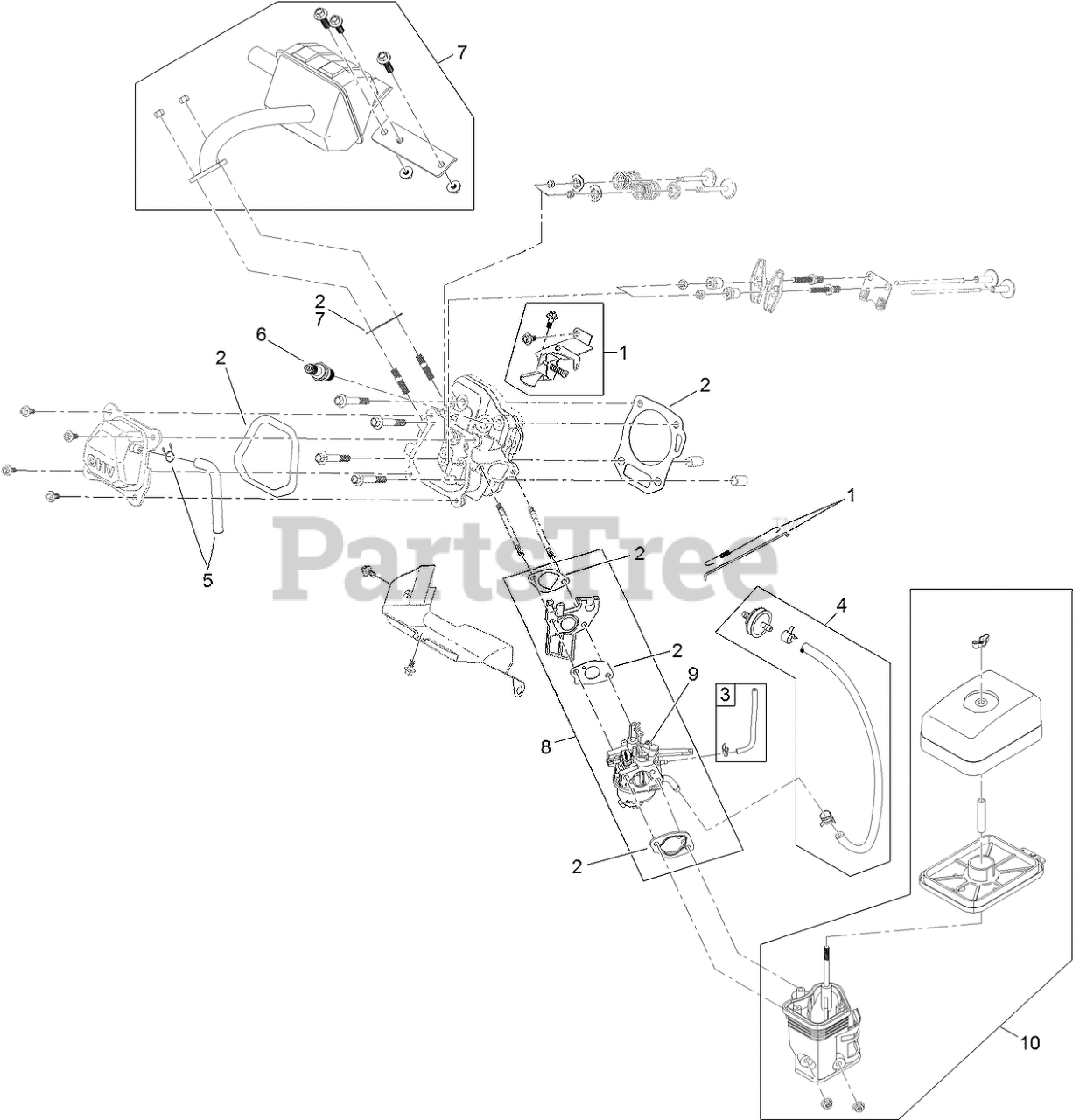

ENGINE ASSEMBLY NO. 1 Parts Diagram

  • Title

1

Toro 119-1957

GOVERNOR KIT
(Superseded to 136-7765)

$27.99

$

In Stock, only 2 left!

0

2

Toro 119-1955

GASKET AND SEAL KIT

$82.99

$

Usually ships in 3-6 days

0

3

Toro 119-1949

PRIMER LINE KIT
(Superseded to 127-9376)

$31.99

$

In Stock, only 1 left!

0

4

Toro 120-4402

FUEL LINE KIT

$19.99

$

In Stock, only 1 left!

0

5

Toro 119-1921

BREATHER TUBE KIT
(Superseded to 139-0630)

$3.49

$

In Stock, only 1 left!

0

6

Toro 119-1901

PLUG-SPARK
(Superseded to 81-3250)

$3.49

$

In Stock, Qty 20+

0

7

Toro 119-1954

MUFFLER KIT

$82.99

$

Usually ships in 3-6 days

0

8

Toro 120-4418

COMPLETE CARBURETOR SERVICE KIT

$91.99

$

In Stock, only 1 left!

0

9

Toro 120-4416

CARB FLOAT, VALVE AND GASKET KIT
(Superseded to 127-9089)

$27.99

$

Usually ships in 3-6 days

0

10

Toro 121-4282

HEATER BOX KIT

$50.99

$

Usually ships in 3-6 days

0
