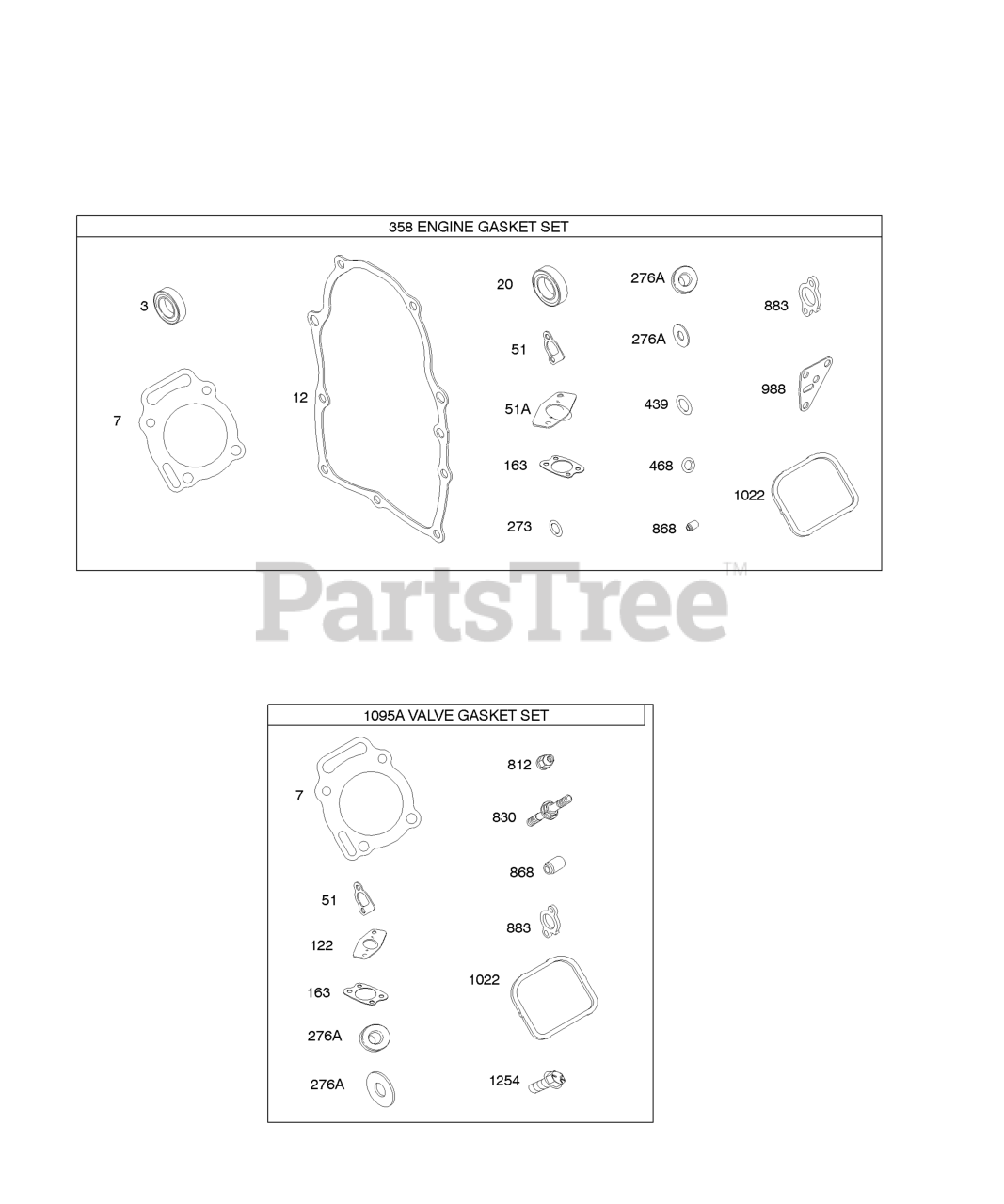

384447-0111-E1 - Briggs & Stratton Horizontal Engine Engine Gasket Set, Value Gasket Kit Parts Diagram

Horizontal Engine

Engine Gasket Set, Value Gasket Kit Parts Diagram

  • Title

3

Briggs & Stratton 805101S

Seal-Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 842622

Gasket-Cylinder Head

Note: (Steel)

$31.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 846487

Gasket-Crankcase

$41.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 806418

Gasket-Intake

Note: (Manifold to Cylinder Head)

$3.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 806457

Gasket-Intake

Note: (Manifold To Carburetor)

$4.49

$

In Stock, only 1 left!

0

122

Briggs & Stratton 690747

Spacer-Carburetor

$12.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692081

Gasket-Air Cleaner

$5.49

$

In Stock, Qty 5

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

276A

Briggs & Stratton 807085

Washer-Sealing

Note: (Rocker Cover) Used After Code Date 01120200

$3.99

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 691766

Washer-Sealing

Note: (Rocker Cover) Used Before Code Date 01120300

$6.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 842658

Gasket Set-Engine

$146.99

$

In Stock, Qty 5

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump) or (Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$5.99

$

Usually ships in 2-12 days

0

812

Briggs & Stratton 692055

Nut

Note: (Rocker Cover) Used Before Code Date 01120300

$3.99

$

In Stock, Qty 9

0

830

Briggs & Stratton 809157

Stud-Rocker Arm

$6.99

$

In Stock, Qty 14

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 806425

Gasket-Exhaust

$5.49

$

In Stock, Qty 10

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, Qty 5

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1095A

Briggs & Stratton 842662

Gasket Set-Valve

$77.99

$

Usually ships in 2-12 days

0

1254

Briggs & Stratton 807084

SCREW

Note: (Rocker Arm Stud) Used After Code Date 01120200

$3.49

$

In Stock, Qty 7

0
