384445-0112-E2 - Briggs & Stratton Horizontal Engine Cylinder Heads, Valves, Gasket Set-Valve Parts Diagram

Horizontal Engine

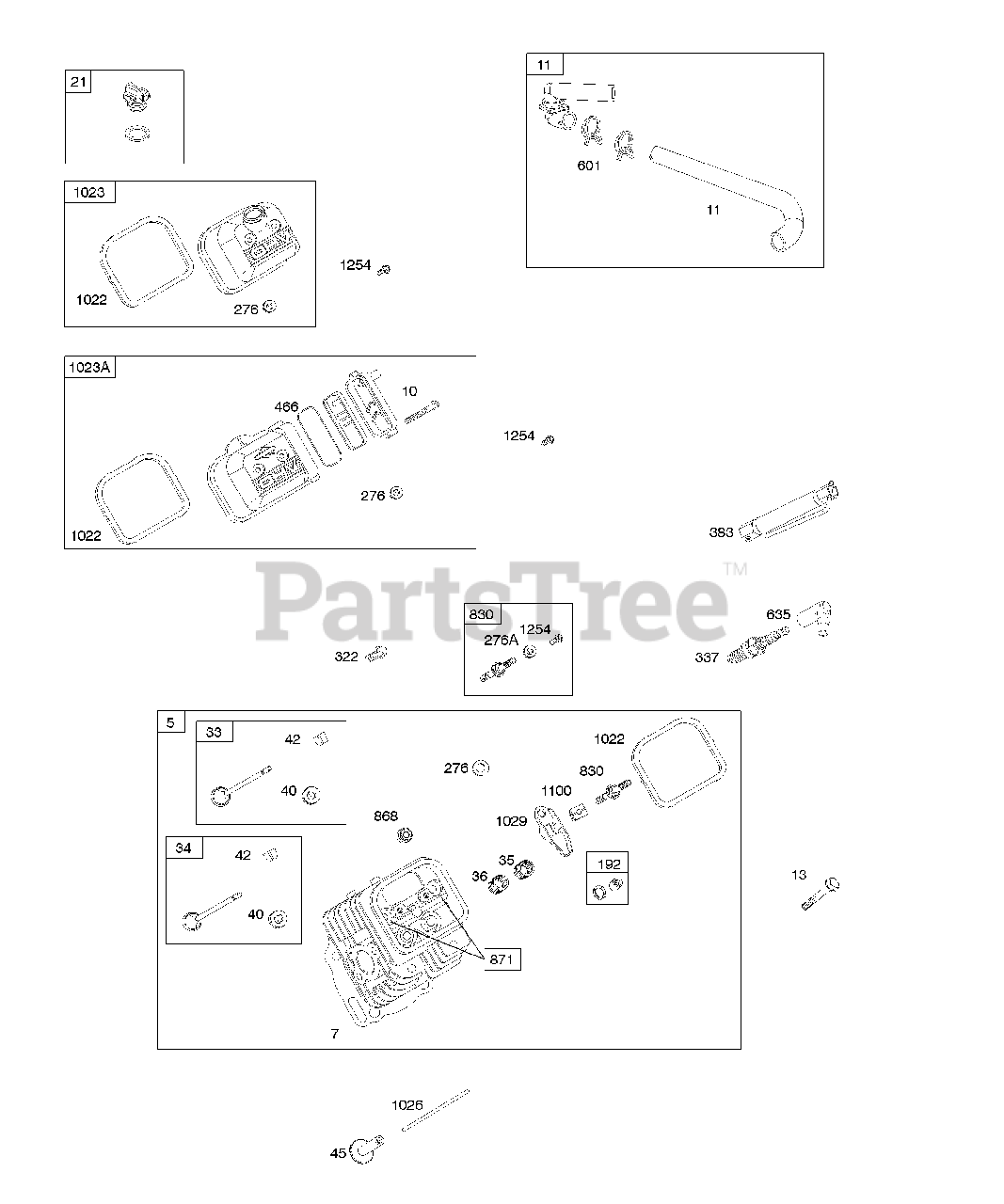

Cylinder Heads, Valves, Gasket Set-Valve Parts Diagram

  • Title

5

Briggs & Stratton 842660

Head-Cylinder

Note: (Cylinder 2)

$272.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 842661

Head-Cylinder

Note: (Cylinder 1)

$272.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 842622

Gasket-Cylinder Head

Note: (Steel)

$31.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 806421

SCREW

Note: (Breather Assembly)

$

$

Not available

11

Briggs & Stratton 808686

Tube-Breather

$73.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 842618

Screw

Note: (Cylinder Head) Used After Code Date 05080100

$4.49

$

In Stock, only 4 left!

0

21

Briggs & Stratton 809500

Cap-Oil Fill

$10.99

$

In Stock, Qty 17

0

33

Briggs & Stratton 843752

Valve-Exhaust

$47.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 843751

Valve-Intake

$29.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 692084

Spring-Valve

Note: (Intake)

$6.49

$

In Stock, Qty 11

0

36

Briggs & Stratton 692084

Spring-Valve

Note: (Exhaust)

$6.49

$

In Stock, Qty 11

0

40

Briggs & Stratton 692058

Retainer-Valve

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 807683

RETAINER, Valve

$6.99

$

In Stock, Qty 12

0

45

Briggs & Stratton 843379

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 807623

Adjuster-Rocker Arm

$11.99

$

In Stock, only 1 left!

0

276

Briggs & Stratton 806998

Washer-Sealing

Note: (Governor Crank)

$7.99

$

Usually ships in 2-12 days

0

276A

Briggs & Stratton 691766

Washer-Sealing

Note: (Rocker Cover) Used Before Code Date 01120300

$6.49

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 807085

Washer-Sealing

Note: (Rocker Cover) Used After Code Date 01120200

$3.99

$

In Stock, Qty 20+

0

322

Briggs & Stratton 841233

SCREW

Note: (Cylinder Head Cover)

$3.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 792015

PLUG, Spark

$6.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

466

Briggs & Stratton 806466

Seal-O Ring

Note: (Breather Assembly)

$10.99

$

In Stock, Qty 11

0

601

Briggs & Stratton 841597

CLAMP, Hose

$4.49

$

In Stock, only 3 left!

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

830

Briggs & Stratton 809157

Stud-Rocker Arm

$6.99

$

In Stock, Qty 14

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

871

Briggs & Stratton 692057

Bushing-Valve Guide
(Superseded to 84002672)

$12.99

$

In Stock, only 2 left!

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 843749

Cover-Rocker

$39.99

$

Usually ships in 2-12 days

0

1023A

Briggs & Stratton 843750

Cover-Rocker

Note: (Includes Breather Assembly)

$81.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 691758

Rod-Push

Note: (Exhaust)(Aluminum)

$11.99

$

In Stock, Qty 20+

0

1026

Briggs & Stratton 691836

Rod-Push

Note: (Intake)(Steel)

$12.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 3 left!

0

1254

Briggs & Stratton 807084

SCREW

Note: (Rocker Arm Stud) Used After Code Date 01120200

$3.49

$

In Stock, Qty 7

0
