38440 (CCR 3650) - Toro Snow Thrower (SN: 200014064 - 200999999) (2000) UPPER SHROUD AND CONTROL PANEL ASSEMBLY Parts Diagram

Snow Thrower

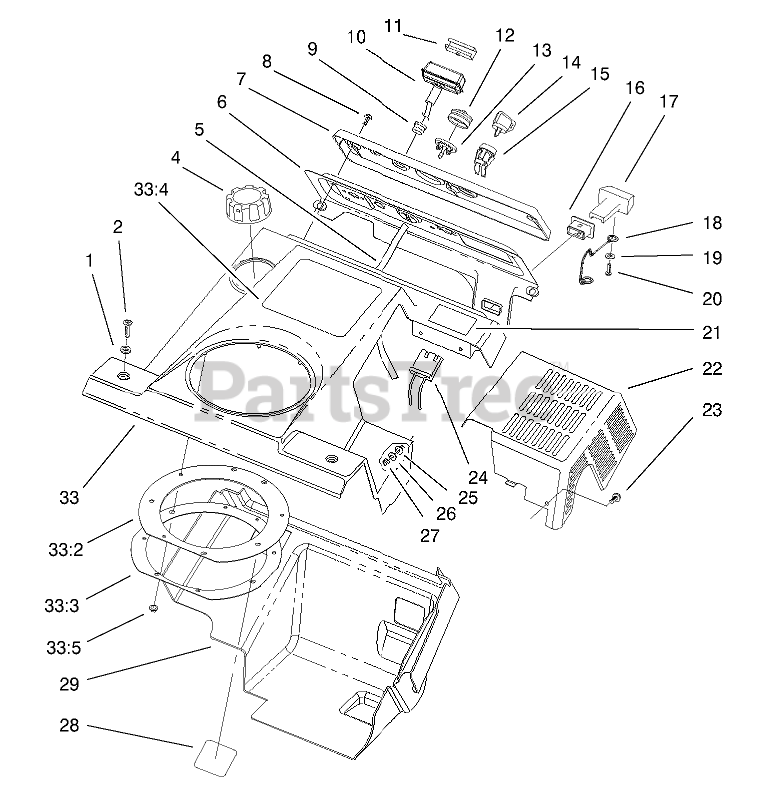

UPPER SHROUD AND CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

4

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$16.99

$

Usually ships in 3-6 days

0

5

Toro 98-1372

HOSE-PRIMER

$5.49

$

In Stock, Qty 20+

0

6

Toro 55-9490-03

Panel-Control
(Superseded to 12-4659)

$

$

Not available

7

Toro 55-9350

Control Nameplate (only on: 38440)
(Superseded to 104-2771)

$

$

Not available

7

Toro 61-4410

Control Nameplate Ke (only on: 38439, 38445)
(Superseded to 104-2772)

$

$

Not available

8

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Toro 55-9410

GUIDE-ROPE, STARTER

$16.99

$

Usually ships in 3-6 days

0

10

Toro 612825

HANDLE-START
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

11

Toro 612824

CLIP-STARTER

$4.49

$

In Stock, Qty 10

0

12

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

13

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

14

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

15

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

16

Toro 55-8820

FITTING

$9.99

$

In Stock, only 3 left!

0

17

Toro 55-8810

CONTROL-CHOKE

$14.99

$

In Stock, only 3 left!

0

18

Toro 95-7439

LINKAGE-CHOKE

$16.99

$

In Stock, only 2 left!

0

19

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

20

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

21

Toro 98-1373

DECAL

$

$

Not available

22

Toro 55-9210-03

SHIELD-HEAT

$

$

Not available

23

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

24

Toro 218-532

CONNECTOR-BODY

$15.99

$

Usually ships in 3-6 days

0

25

Toro 55-9660

WASHER

$

$

Not available

26

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

28

Toro 61-4790

Decal (only on: 38439, 38445)

$

$

Not available

29

Toro 94-9919

SHROUD - LOWER

$

$

Not available

33

Toro 100-3304

Upper Shroud/Decal ASM (only on: 38439)

$

$

Not available

33

Toro 100-3303

Upper Shroud/Decal ASM (only on: 38445)

$

$

Not available

33

Toro 100-3302

Upper Shroud/Decal ASM (only on: 38440)

$

$

Not available

33:2

Toro 55-9260

SEAL-CHUTE
(Superseded to 105-3543)

$15.99

$

In Stock, only 1 left!

0

33:3

Toro 55-9540-03

RETAINER-SEAL, CHUTE

$21.99

$

Usually ships in 3-6 days

0

33:4

Toro 100-3309

Decal-Ccr 3600e (only on: 38439)

$

$

Not available

33:4

Toro 100-3307

Decal-Ccr 3650 Gts (only on: 38440)

$

$

Not available

33:4

Toro 100-3308

Decal-Ccr 3650 Gts E (only on: 38445)

$

$

Not available

33:5

Toro 3290-474

PALNUT

$0.99

$

In Stock, Qty 9

0
