38436 (CCR 3000) - Toro Snow Thrower (SN: 089000001 - 089999999) (1998) SHROUD ASSEMBLY Parts Diagram

Snow Thrower

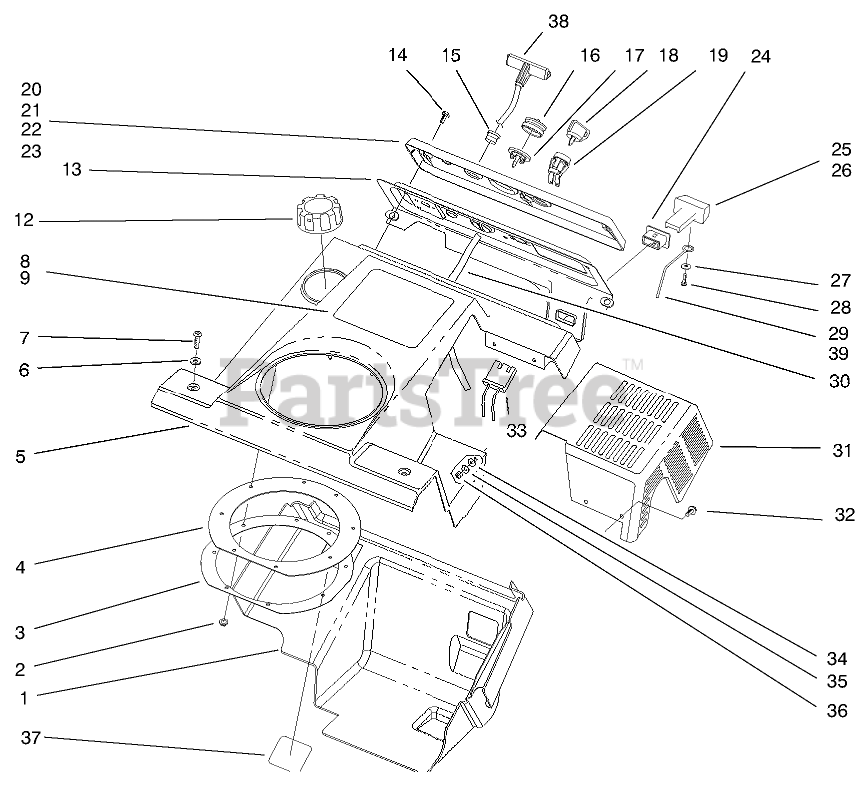

SHROUD ASSEMBLY Parts Diagram

  • Title
1

Toro 55-8791

LOWER SHROUD

$

$

Not available

2

Toro 3290-474

PALNUT

$0.99

$

In Stock, Qty 9

0

3

Toro 55-9540-01

CHUTE SEAL RETAINER RED
(Superseded to 55-9540-03)

$18.99

$

In Stock, only 1 left!

0

4

Toro 55-9260

SEAL-CHUTE
(Superseded to 105-3543)

$12.99

$

In Stock, only 1 left!

0

5

Toro 94-9898

ASM-UPPER SHROUD/DECAL

$233.99

$

Usually ships in 3-6 days

0

5

Toro 94-9899

ASM-UPPER SHROUD/DECAL

$

$

Not available

6

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

8

Toro 94-8875

DECAL-CCR3000 GTS ELEC.

$

$

Not available

9

Toro 94-8874

DECAL-CCR3000 GTS RECOIL

$

$

Not available

12

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$14.99

$

In Stock, only 1 left!

0

13

Toro 55-9490-01

Wa-Panel
(Superseded to 12-4659)

$87.99

$

Usually ships in 3-6 days

0

14

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

15

Toro 55-9410

GUIDE-ROPE, STARTER

$9.49

$

Usually ships in 3-6 days

0

16

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

17

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

18

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

19

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

20

Toro 94-2569

PLATE

$

$

Not available

21

Toro 55-9350

CONTROL NAMEPLATE
(Superseded to 104-2771)

$

$

Not available

22

Toro 94-2570

NAMEPLATE-CONTROL

$

$

Not available

23

Toro 61-4410

Plate-Name
(Superseded to 104-2772)

$

$

Not available

24

Toro 55-8820

FITTING

$8.49

$

In Stock, only 3 left!

0

25

Toro 55-8811

CHOKE CONTROL

$

$

Not available

26

Toro 55-8810

CONTROL-CHOKE

$11.99

$

In Stock, only 3 left!

0

27

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

28

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

29

Toro 94-2797

LINKAGE - CHOKE

$28.99

$

In Stock, Qty 20+

0

30

Toro 44-3174

HOSE-PRIMER

$4.99

$

In Stock, Qty 15

0

31

Toro 55-9210

Wa-Shield
(Superseded to 55-9210-03)

$

$

Not available

32

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

33

Toro 218-532

CONNECTOR-BODY

$13.99

$

Usually ships in 3-6 days

0

34

Toro 55-9660

WASHER

$

$

Not available

35

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

37

Toro 61-4790

DECAL

$11.99

$

Usually ships in 3-6 days

0

38

Toro 92-4853

HANDLE-STARTER

$8.49

$

In Stock, only 3 left!

0

39

Toro 94-2798

LINKAGE - CHOKE

$5.99

$

Usually ships in 3-6 days

0
