38433 (CCR 3000) - Toro Snow Thrower (SN: 099000001 - 099999999) (1999) SHROUD ASSEMBLY Parts Diagram

Snow Thrower

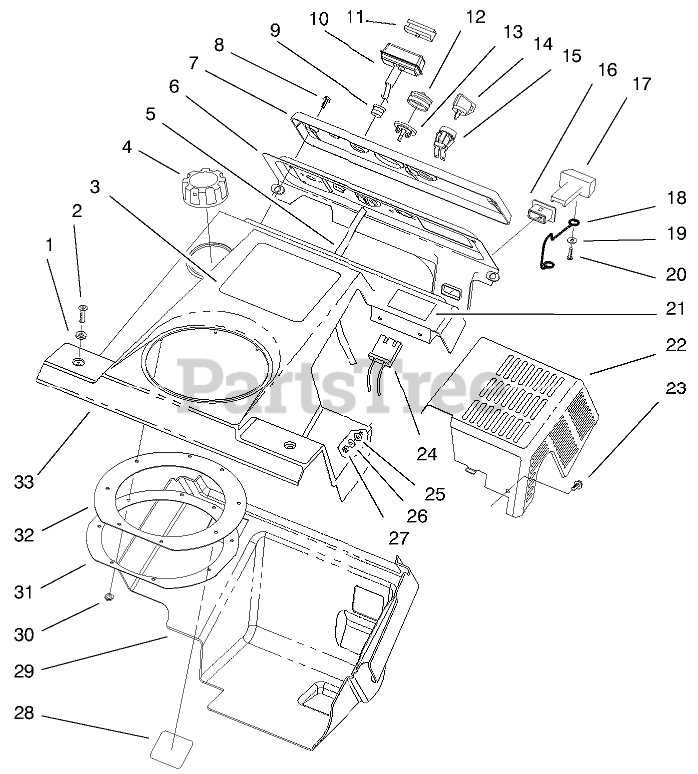

SHROUD ASSEMBLY Parts Diagram

  • Title
1

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

3

Toro 99-3246

DECAL-CCR3000R 6HP

$

$

Not available

3

Toro 99-3247

DECAL-3000E 6HP

$42.99

$

Usually ships in 3-6 days

0

4

Toro 55-3573

CAP-FUEL ASM
(Superseded to 104-4133)

$16.99

$

Usually ships in 3-6 days

0

5

Toro 98-1372

HOSE-PRIMER

$5.49

$

In Stock, Qty 20+

0

6

Toro 55-9490-03

Panel-Control
(Superseded to 12-4659)

$

$

Not available

7

Toro 55-9350

CONTROL NAMEPLATE
(Superseded to 104-2771)

$

$

Not available

7

Toro 61-4410

Plate-Name
(Superseded to 104-2772)

$

$

Not available

7

Toro 94-2569

PLATE

$

$

Not available

7

Toro 94-2570

NAMEPLATE-CONTROL

$

$

Not available

8

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Toro 55-9410

GUIDE-ROPE, STARTER

$16.99

$

Usually ships in 3-6 days

0

10

Toro 612825

HANDLE-START
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

11

Toro 612824

CLIP-STARTER

$4.49

$

In Stock, Qty 10

0

12

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

13

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

14

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

15

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

16

Toro 55-8820

FITTING

$9.99

$

In Stock, only 3 left!

0

17

Toro 55-8810

CONTROL-CHOKE

$14.99

$

In Stock, only 3 left!

0

17

Toro 55-8811

CHOKE CONTROL

$

$

Not available

18

Toro 95-7439

LINKAGE-CHOKE

$16.99

$

In Stock, only 2 left!

0

19

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

20

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

21

Toro 98-1373

DECAL

$

$

Not available

22

Toro 55-9210-03

SHIELD-HEAT

$

$

Not available

23

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

24

Toro 218-532

CONNECTOR-BODY

$15.99

$

Usually ships in 3-6 days

0

25

Toro 55-9660

WASHER

$

$

Not available

26

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

28

Toro 61-4790

DECAL

$

$

Not available

29

Toro 94-9919

SHROUD - LOWER

$

$

Not available

30

Toro 3290-474

PALNUT

$0.99

$

In Stock, Qty 9

0

31

Toro 55-9540-03

RETAINER-SEAL, CHUTE

$21.99

$

In Stock, only 1 left!

0

32

Toro 55-9260

SEAL-CHUTE
(Superseded to 105-3543)

$15.99

$

In Stock, only 1 left!

0

33

Toro 55-8781

UPPER SHROUD

$

$

Not available
