38431 (CCR 3000) - Toro Snow Thrower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY MODEL NO. 47PT6-4 Parts Diagram

Snow Thrower

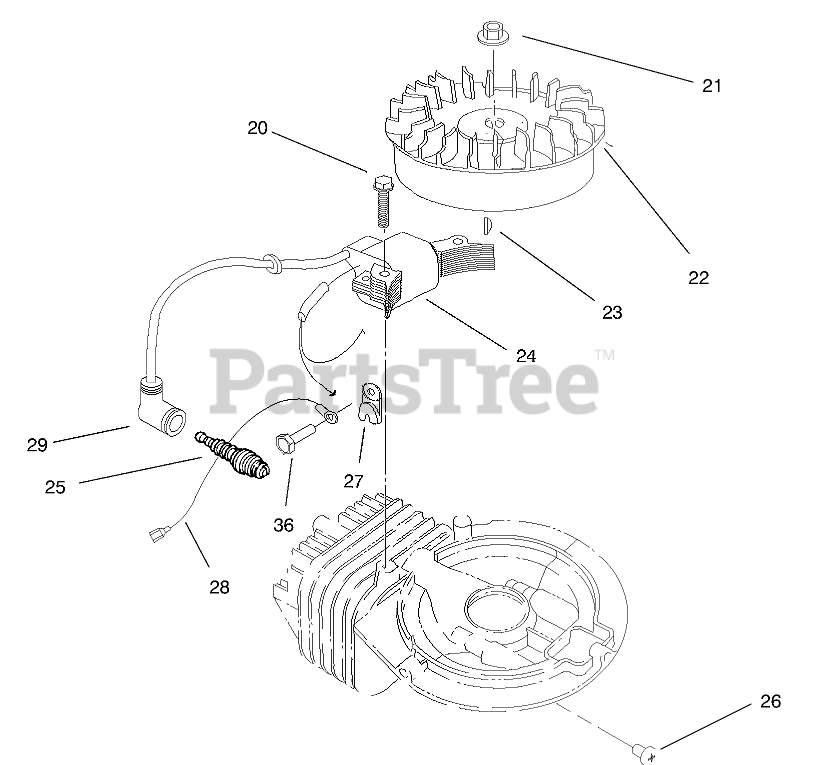

ENGINE ASSEMBLY MODEL NO. 47PT6-4 Parts Diagram

  • Title

20

Toro 81-5710

SCREW

$

$

Not available

21

Toro 81-1330

NUT

$9.99

$

Usually ships in 3-6 days

0

22

Toro 81-0320

FLYWHEEL

$

$

Not available

23

Toro 81-2370

KEY

$6.99

$

Usually ships in 3-6 days

0

24

Toro 94-8890

ASM - MAGNETO COIL

$

$

Not available

25

Toro 50-1170

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

26

Toro 81-0380

SCREW

$

$

Not available

27

Toro 81-1480

CLAMP

$4.99

$

Usually ships in 3-6 days

0

28

Toro 81-2860

WIRE

$

$

Not available

29

Toro 81-1500

CAP-SPARKPLUG

$32.99

$

In Stock, only 2 left!

0

36

Toro 53-1340

BOLT

$

$

Not available

Toro 41-7650

PULLER-FLYWHEEL

Note: Not illustrated

$149.99

$

Usually ships in 3-6 days

0

78

Toro 81-2670

SCREW

$9.99

$

Usually ships in 3-6 days

0

79

Toro 81-2680

GASKET

$4.99

$

In Stock, only 4 left!

0
